Front Door Opening Weatherstrip Replacement

Front Door Opening Weatherstrip Replacement

Removal Procedure





1. Remove the body hinge pillar trim pane. Refer to Body Hinge Pillar Trim Panel Replacement Body Hinge Pillar Trim Panel Replacement.

2. Remove the front door sill plate. Refer to Front Side Door Sill Trim Plate Replacement Front Side Door Sill Trim Plate Replacement.

3. Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement Center Pillar Lower Trim Panel Replacement

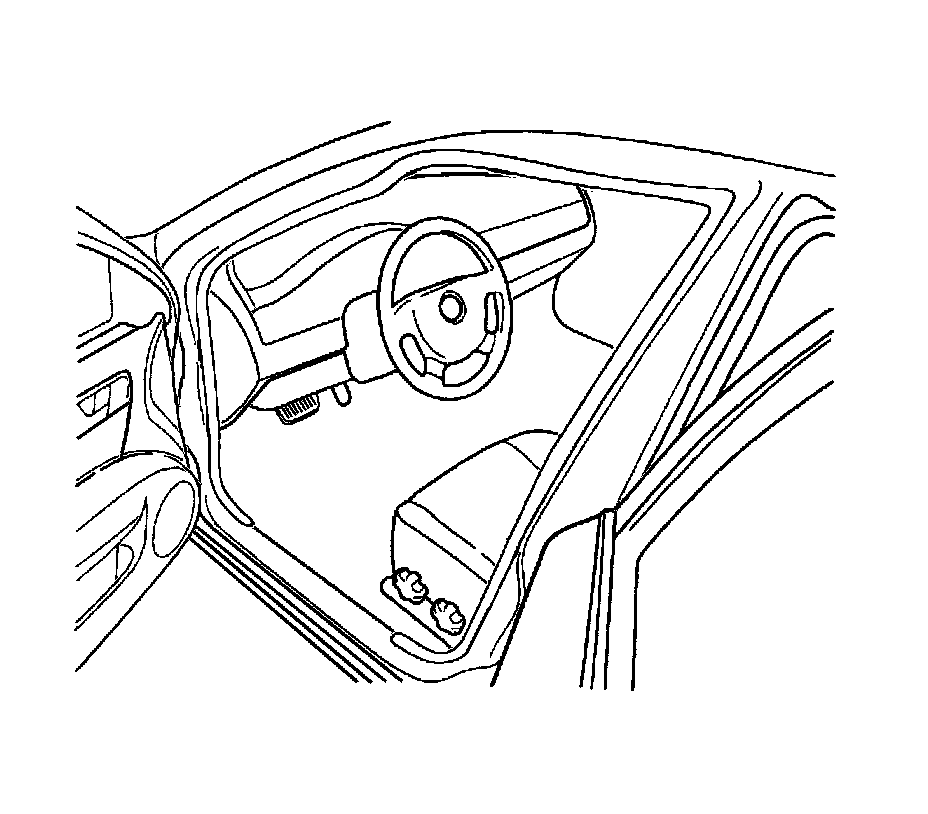

4. Remove the front door opening weatherstrip.

Installation Procedure





1. Install the front door opening weatherstrip.

2. Install the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement Center Pillar Lower Trim Panel Replacement

3. Install the front door sill plate. Refer to Front Side Door Sill Trim Plate Replacement Front Side Door Sill Trim Plate Replacement.

4. Install the body hinge pillar trim pane. Refer to Body Hinge Pillar Trim Panel Replacement Body Hinge Pillar Trim Panel Replacement.
