Brake Pedal Assy: Service and Repair




Brake Pedal Assembly Replacement

Removal Procedure





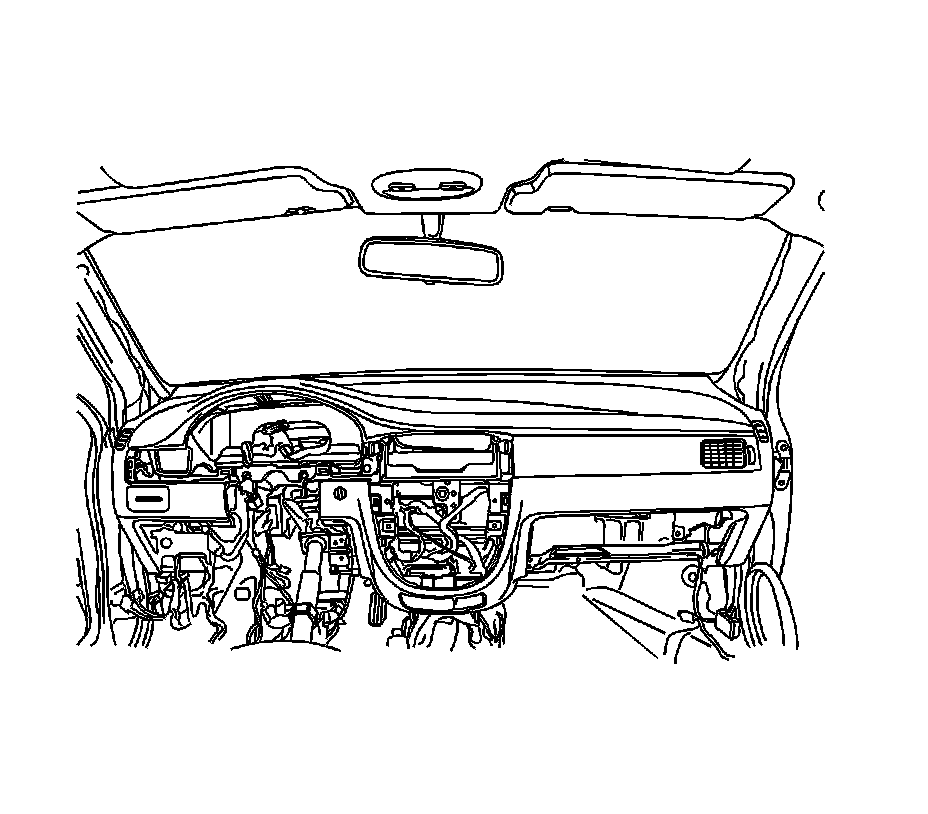

1. Remove the instrument panel (I/P). Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement in Instrument Panel, Gauges, and Console.





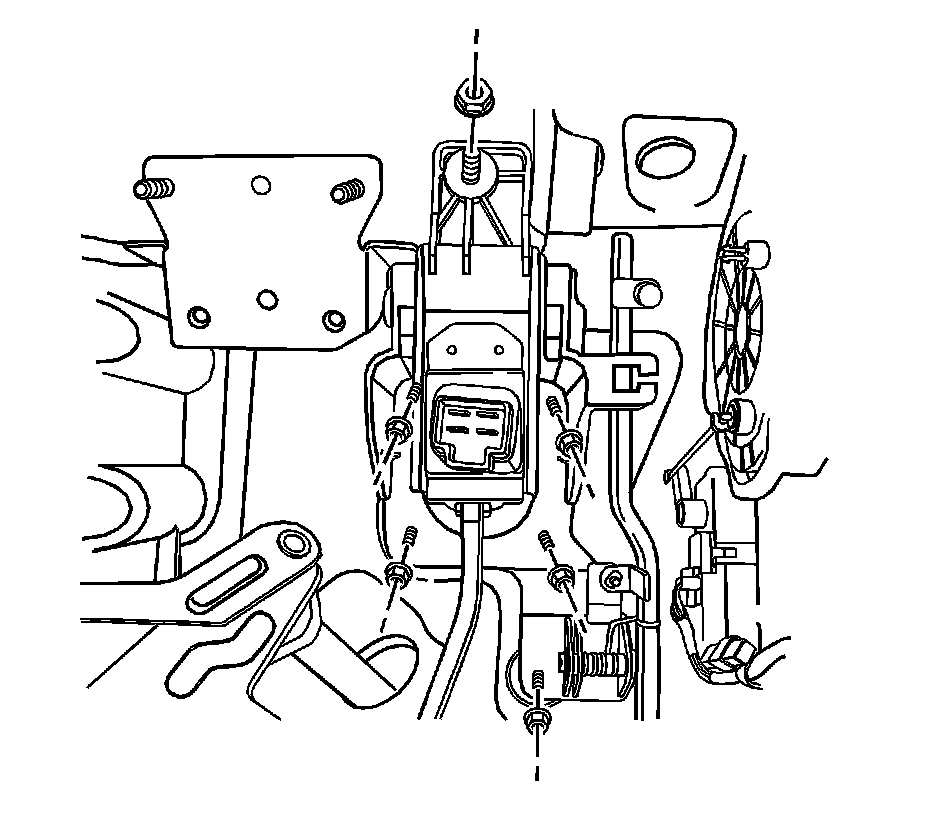

2. Remove the nuts from the brace.

3. Remove the brake pedal.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

1. Install the brace with nuts.

Tighten the brace with nuts to 22 Nm (16 lb ft).

2. Install the brake pedal.





3. Install the I/P. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement in Instrument Panel, Gauges, and Console.
