Front Brake Shield Replacement




Front Brake Shield Replacement

Removal Procedure





1. Remove the rotor. Refer to Front Brake Rotor Replacement Front Brake Rotor Replacement.

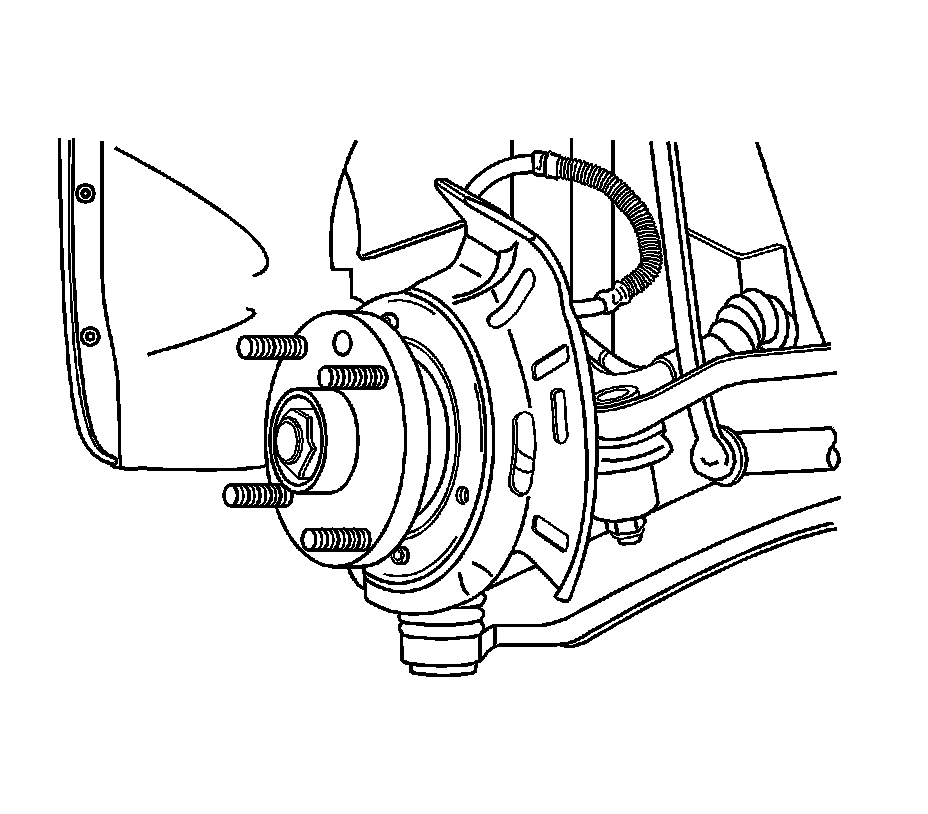

2. Remove the screws for the splash shield from the steering knuckle.

3. Remove the splash shield.

Installation Procedure





1. Install the splash shield.

Notice:
Refer to Fastener Notice Fastener Notice.

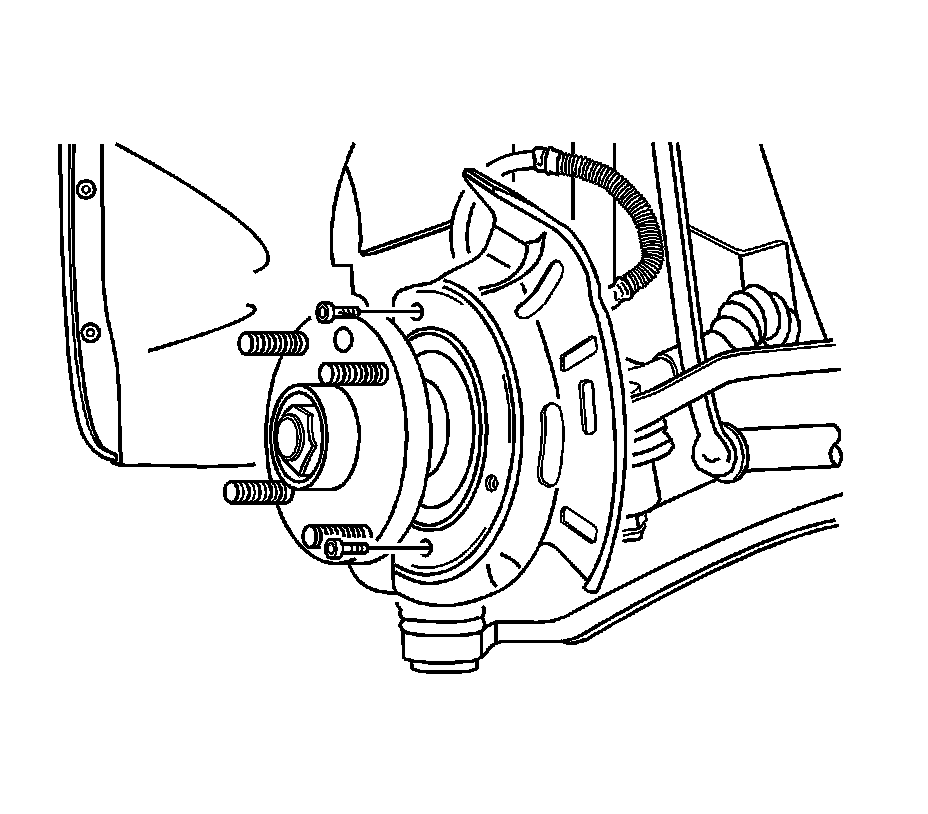

2. Secure the splash shield to the steering knuckle with the screws.

Tighten the splash shield-to-steering knuckle screws to 4 Nm (35 lb in).

3. Install the rotor. Refer to Front Brake Rotor Replacement Front Brake Rotor Replacement.
