Antilock Brake System Schematics




Antilock Brake System Schematics

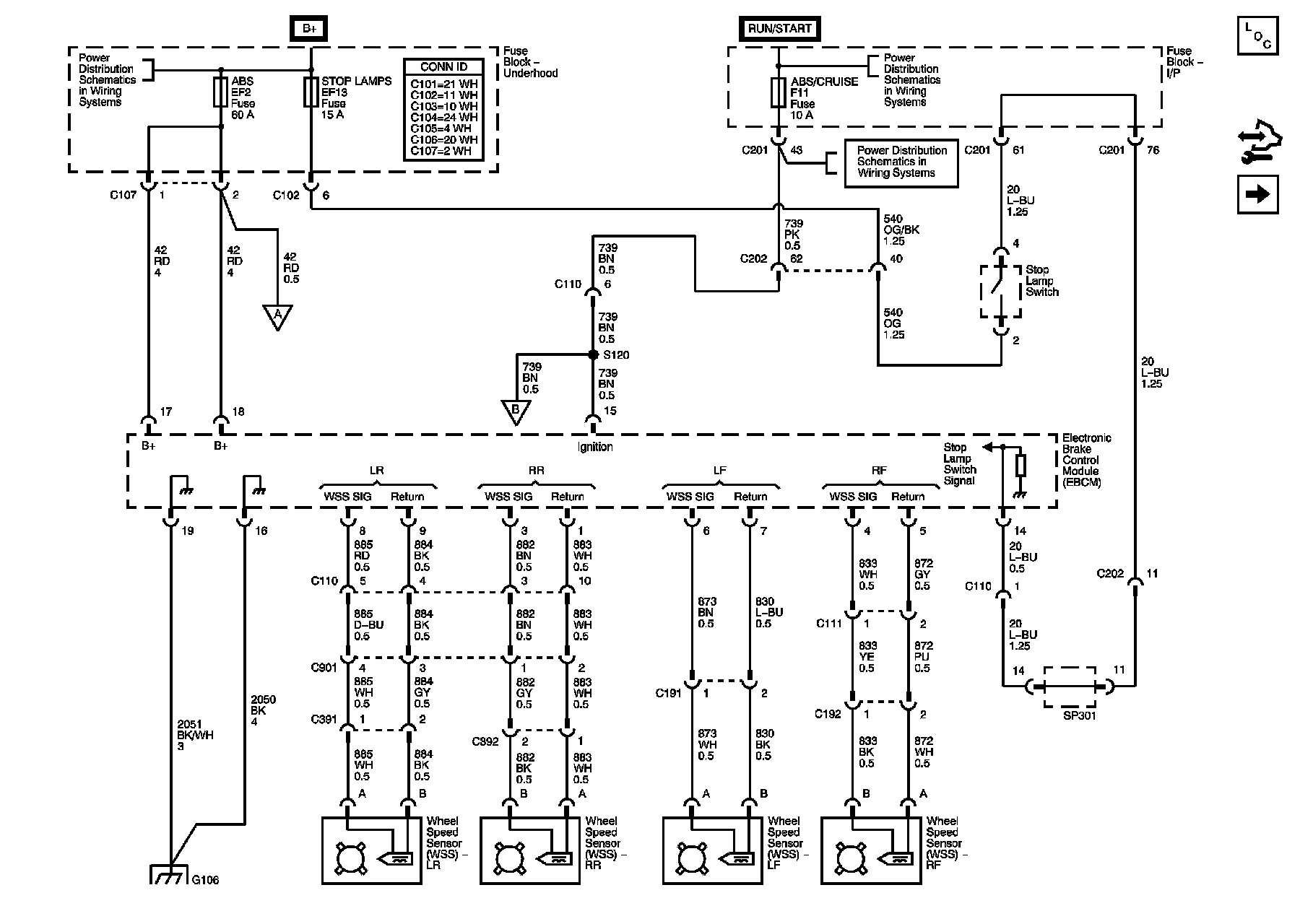

Powers, Grounds, Wheel Speed Sensors





Master Electrical Component List

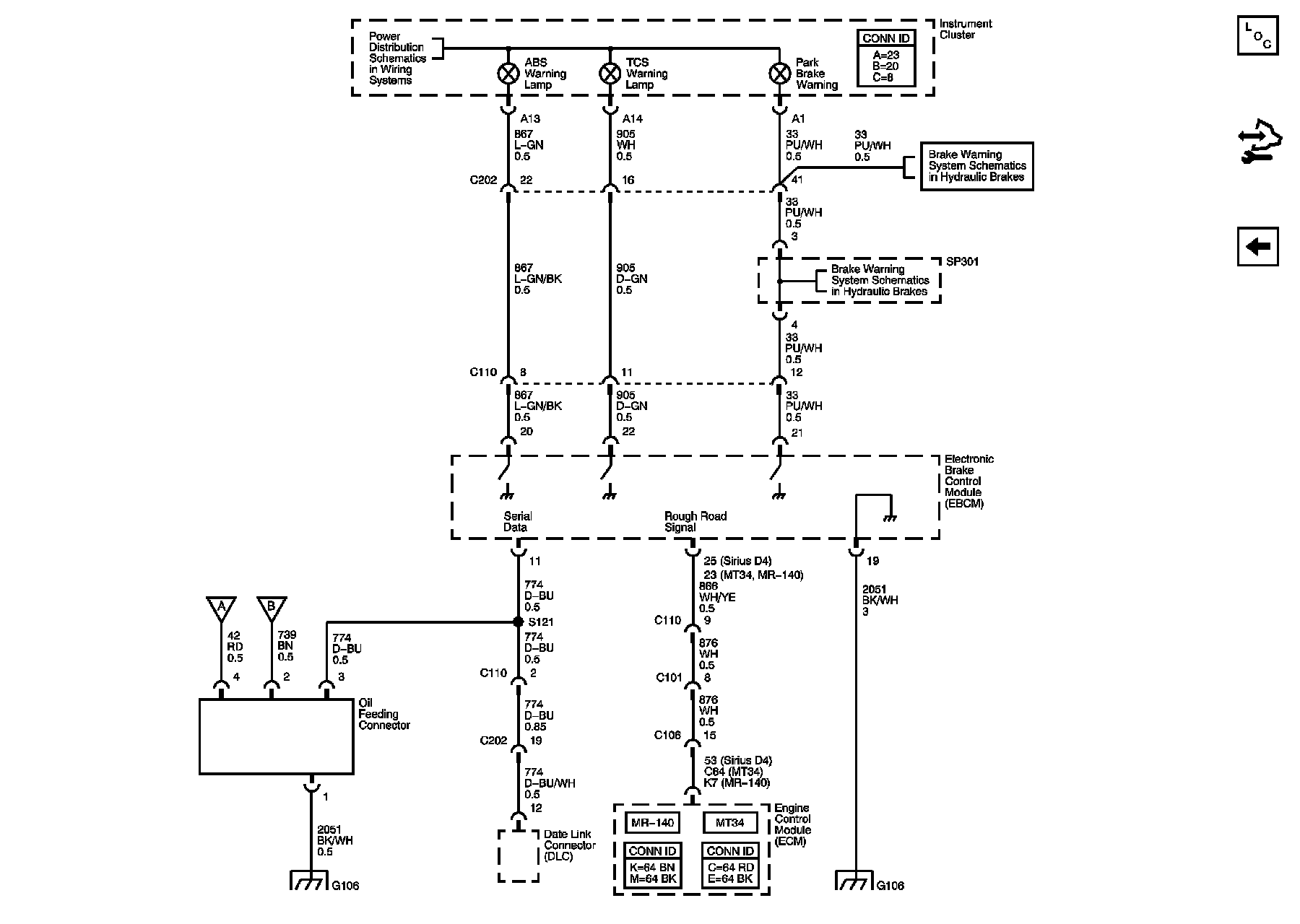

Warning Lamps, Serial Data, Rough Road
Underhood Fuse Block HVAC FLWR, ABS and Horn Fuses
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
G201 (1 of 2)
Warning Lamps, Serial Data, Rough Road
Warning Lamps, Serial Data, Rough Road

Warning Lamps, Serial Data, Rough Road





Master Electrical Component List
Power, Ground, Wheel Speed Sensors
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
Brake Warning System Schematics
Brake Warning System Schematics
CMP, CKP, Knock, Rough Road Sensors, Power Steering Pressure Switch
CKP, CMP, Rough Road Sensors
CMP, CKP, Knock, Rough Road Sensors, Power Steering Pressure Switch
Controlled/Monitored Subsystem References
G201 (1 of 2)
G201 (1 of 2)
Power, Ground, Wheel Speed Sensors
Power, Ground, Wheel Speed Sensors
