Cooling System: Locations

Cooling System Component Views

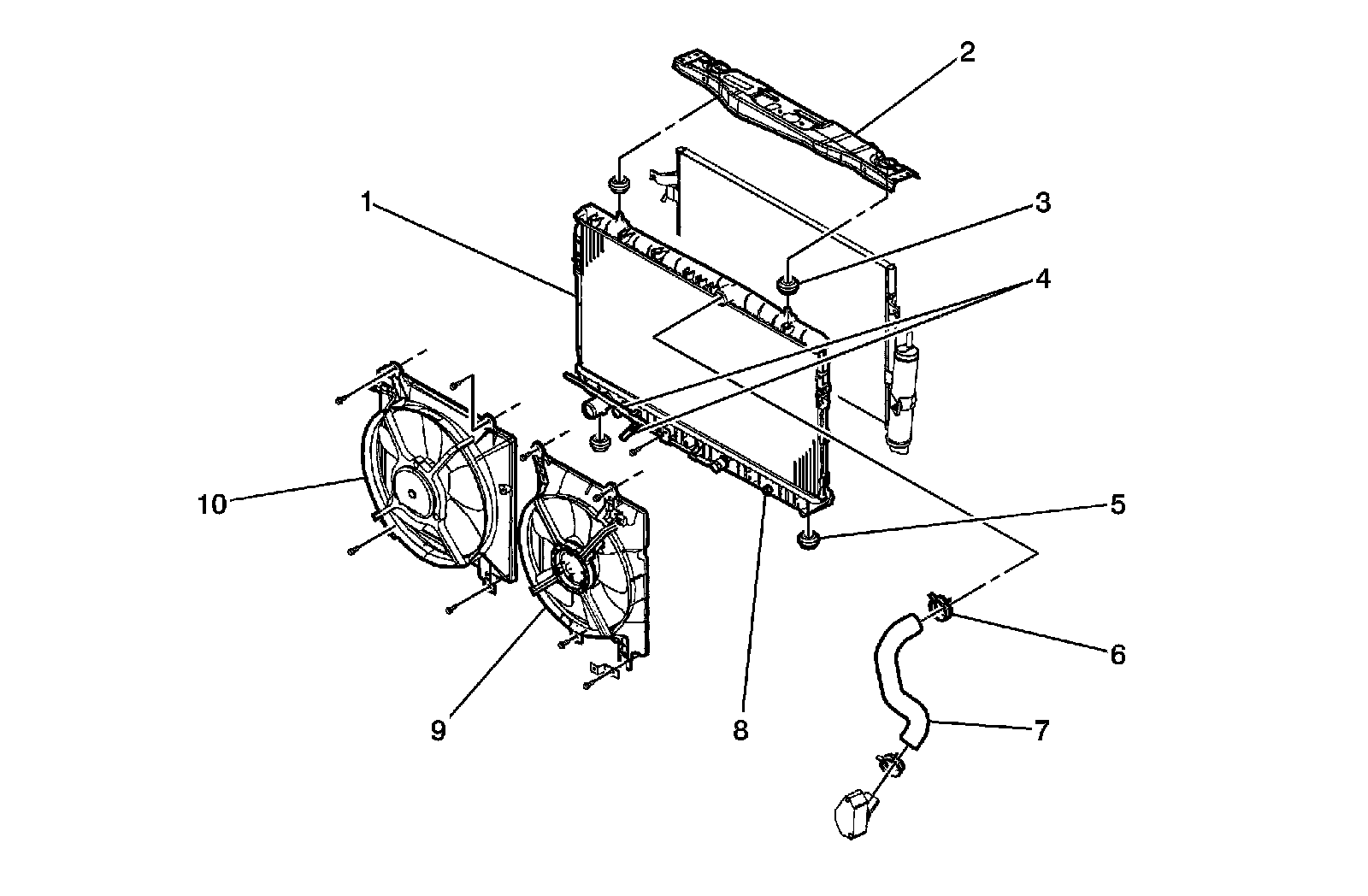

Radiator and Cooling Fan





1 - Radiator

2 - Front Upper Center Panel

3 - Upper Radiator Bumper

4 - Holder Transmission Fluid Pipe - Automatic Transmission Only

5 - Lower Radiator Bumper

6 - Spring Clamp

7 - Upper Radiator Hose

8 - Drain Cock

9 - Cooling Fan - Auxiliary

10 - Cooling Fan - Main

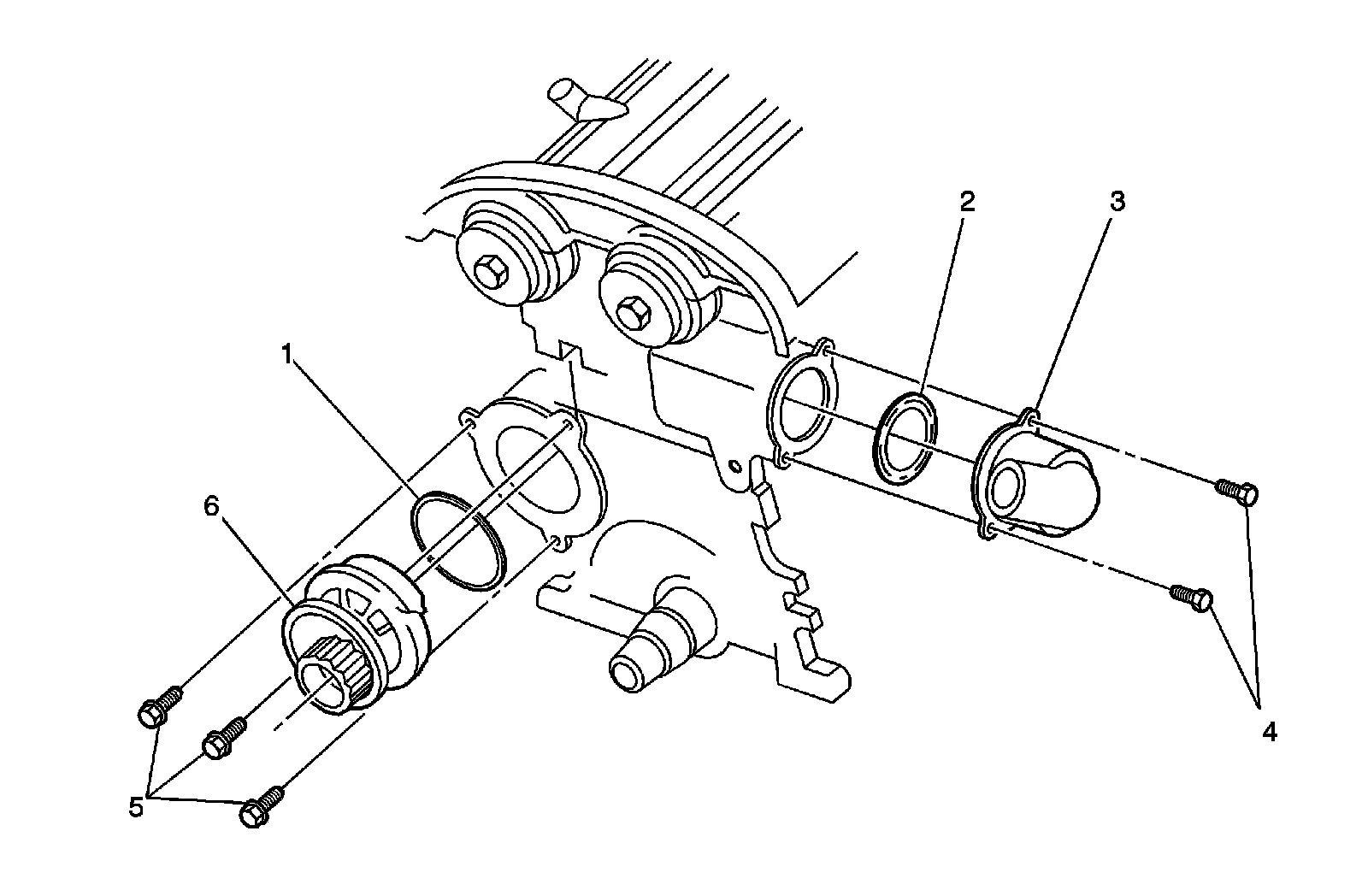

Water Pump/Thermostat (1.4L/1.6L)





1 - Cylinder Block Seal Ring

2 - Seal Ring

3 - Thermostat Housing

4 - Bolt

5 - Bolt

6 - Water Pump

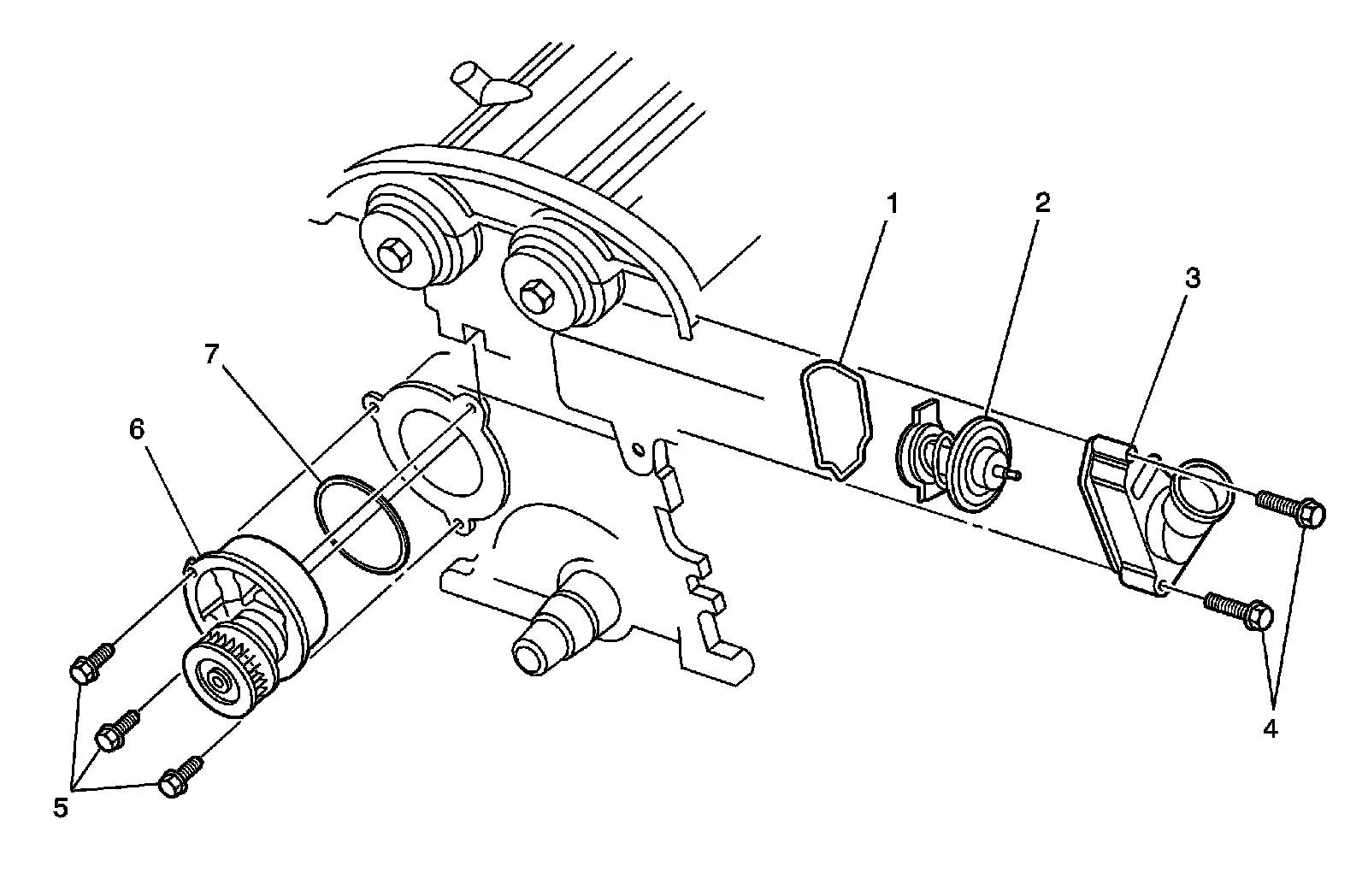

Water Pump/Thermostat (1.8L/2.0L)





1 - Seal Ring

2 - Thermostat

3 - Thermostat Housing

4 - Thermostat Housing Mounting Bolt

5 - Coolant Pump Mounting Bolt

6 - Coolant Pump

7 - Seal Ring
