Air Duct: Service and Repair
Passenger Air Outlet ReplacementRemoval Procedure 1.
Remove the instrument panel storage compartment.
2.

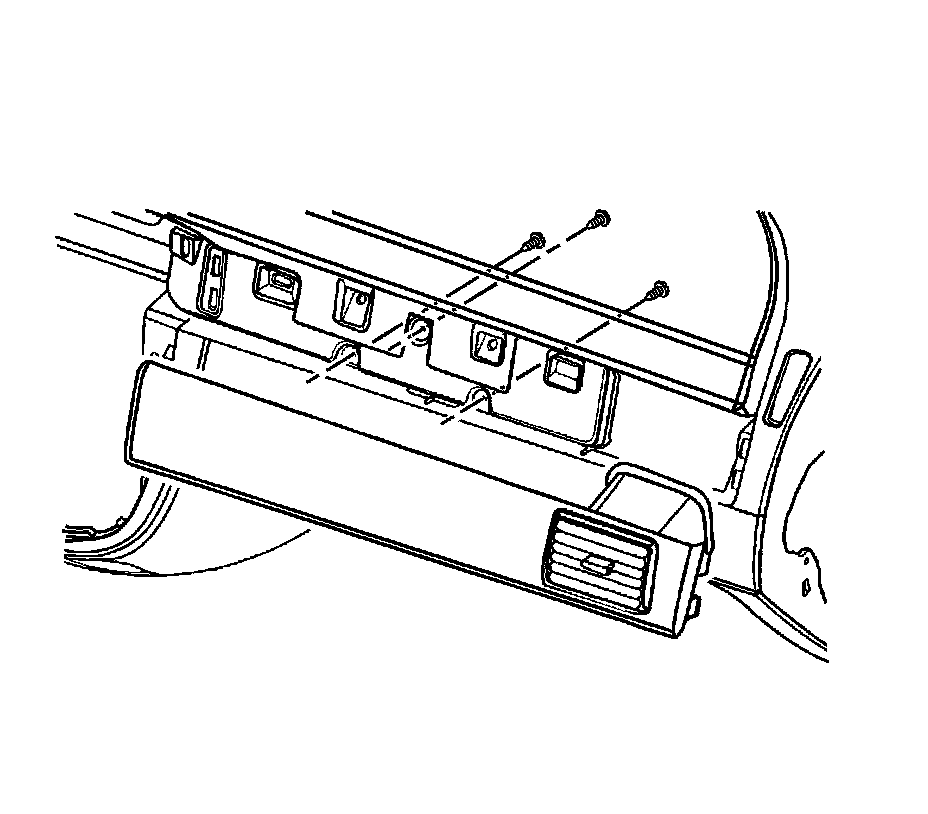

Remove the screws and the garnish molding.
Installation Procedure Notice: Refer to Fastener Notice
Fastener Notice.
1.
Install the garnish molding with the screws.
Tighten the garnish molding screw to 2 Nm (18 lb in). 2.
Install the instrument panel storage compartment.
