Blower Motor Relay: Service and Repair




Blower Motor Relay Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

2. Remove the glove box housing. Refer to Instrument Panel Storage Compartment Replacement Service and Repair in Instrument Panel, Gauges and Console.

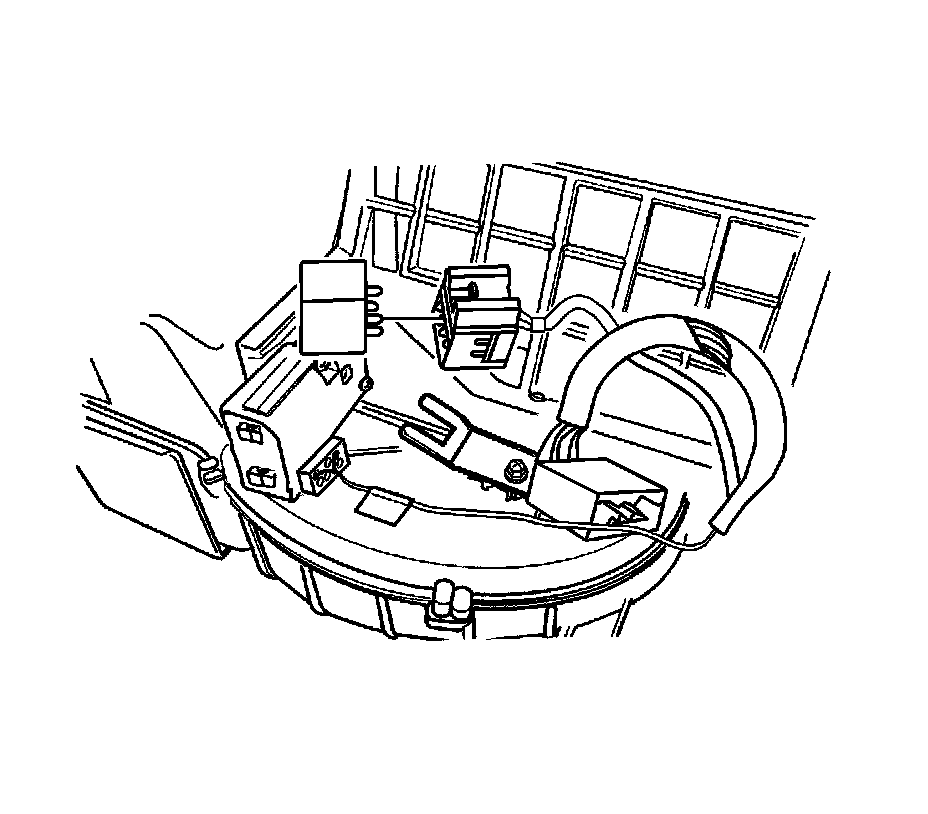

3. Separate the connector from the bracket.

4. Disconnect the relay from the connector.

Installation Procedure

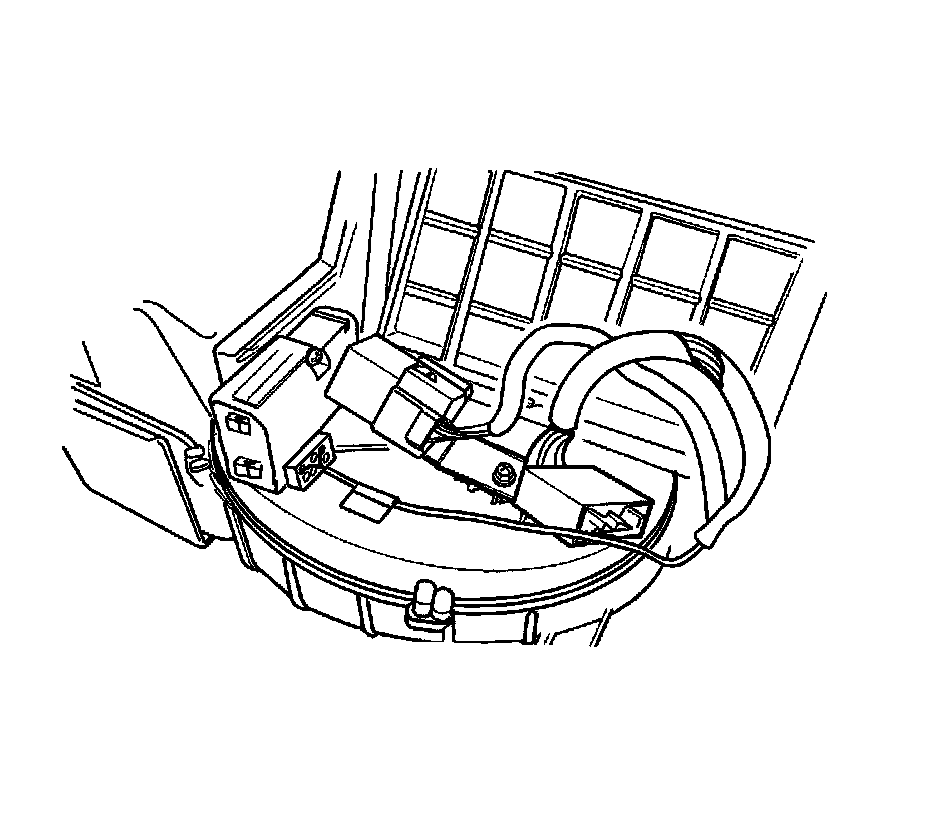

1. Connect the relay to the connector.

2. Insert the connector to the bracket.

3. Install the glove box. Refer to Instrument Panel Storage Compartment Replacement Service and Repair in Instrument Panel, Gauges and Console.
