HVAC Control Lamp Bulb Replacement




HVAC Control Lamp Bulb Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution in Cautions and Notices.

1. Disconnect the negative battery cable.

2. Remove the center molding. Refer to Instrument Panel Center Trim Panel Replacement (Four Door) Instrument Panel Center Trim Panel Replacement (Four Door)Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) in Instrument Panel, Gauges and Console.

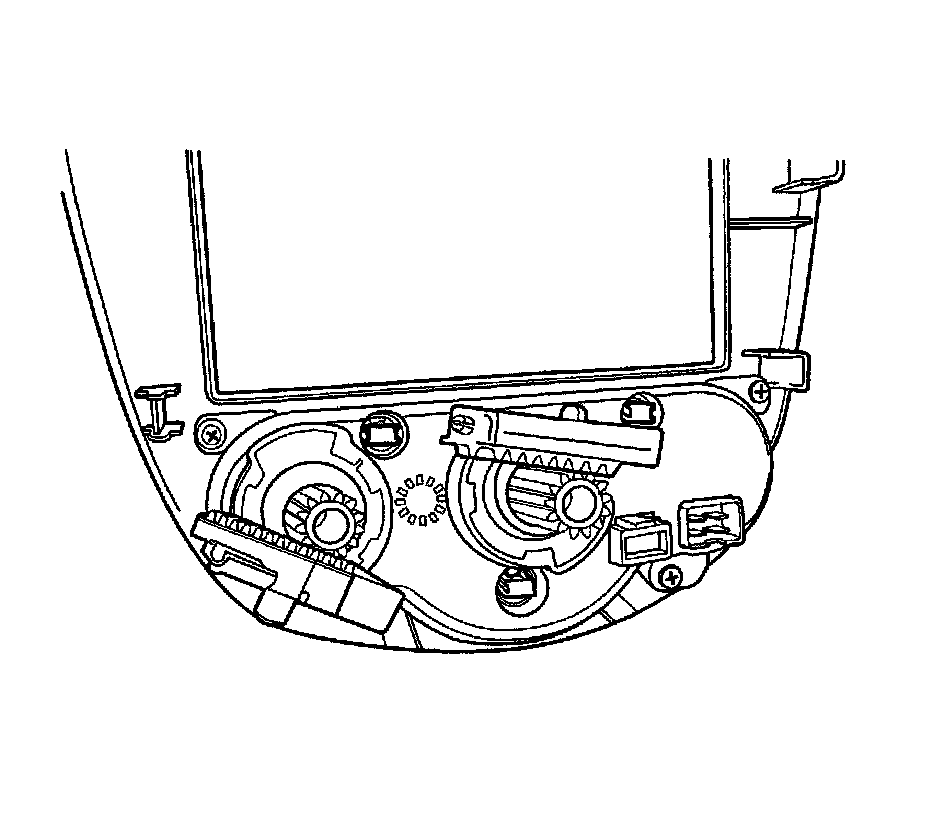

3. Turn the bulb holder to the left and pull out the bulb.

Installation Procedure





1. Install the bulb into the holder and turn the bulb to the right.

2. Install the control assembly. Refer to Instrument Panel Center Trim Panel Replacement (Four Door) Instrument Panel Center Trim Panel Replacement (Four Door)Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) Instrument Panel Center Trim Panel Replacement (Five Door/Wagon) in Instrument Panel, Gauges and Console.

3. Connect the negative battery cable.

4. Verify that the knob lights for proper operation.
