Reading Lamp Replacement




Reading Lamp Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

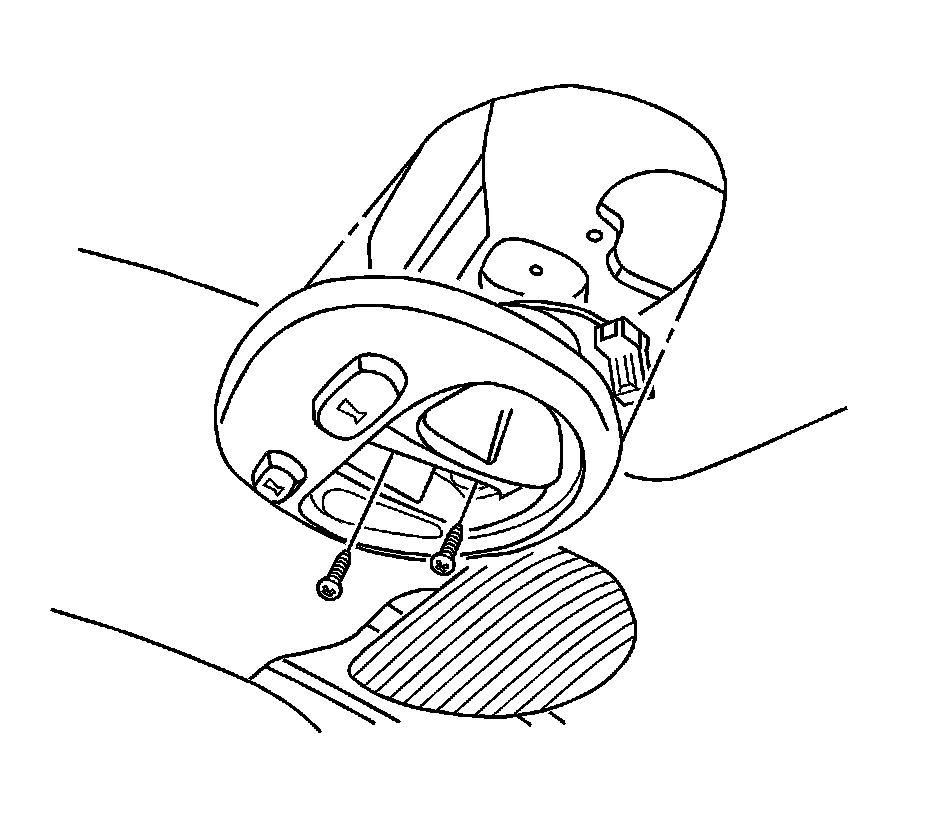

2. Pry off the reading lamp lens.

3. Remove the screws and the reading lamp.

4. Disconnect the electrical connector.

Installation Procedure





1. Connect the electrical connector.

Notice:
Refer to Fastener Notice Fastener Notice.

2. Install the reading lamp with the screws.

Tighten the reading lamp screws to 1.5 Nm (13 lb in).

3. Install the reading lamp lens.

4. Connect the negative battery cable.
