License Plate Lamp: Service and Repair

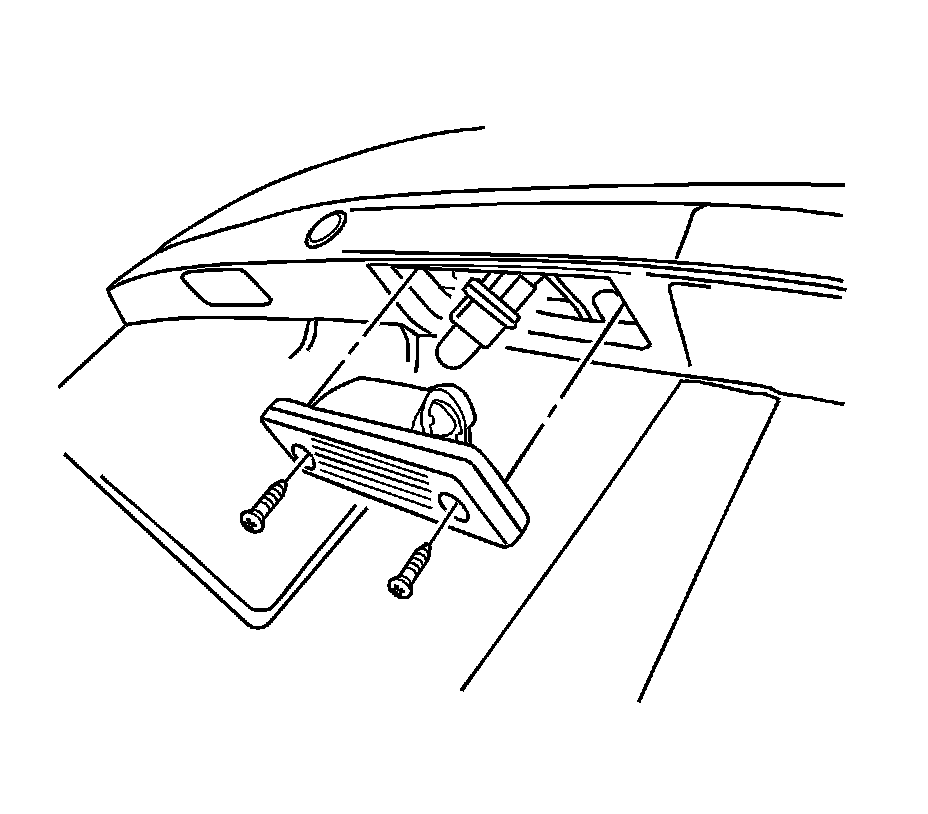

Rear License Plate Lamp Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the screws.

3. Remove the lamp assembly.

4. Remove the lamp socket from the lamp housing.

5. Remove the bulb.

Installation Procedure





1. Install a new bulb.

2. Install the lamp socket in the lamp housing.

Notice:
Refer to Fastener Notice Fastener Notice.

3. Install the lamp assembly with the screws.

Tighten the lamp assembly screws to 4 Nm (35 lb in).

4. Connect the negative battery cable.
