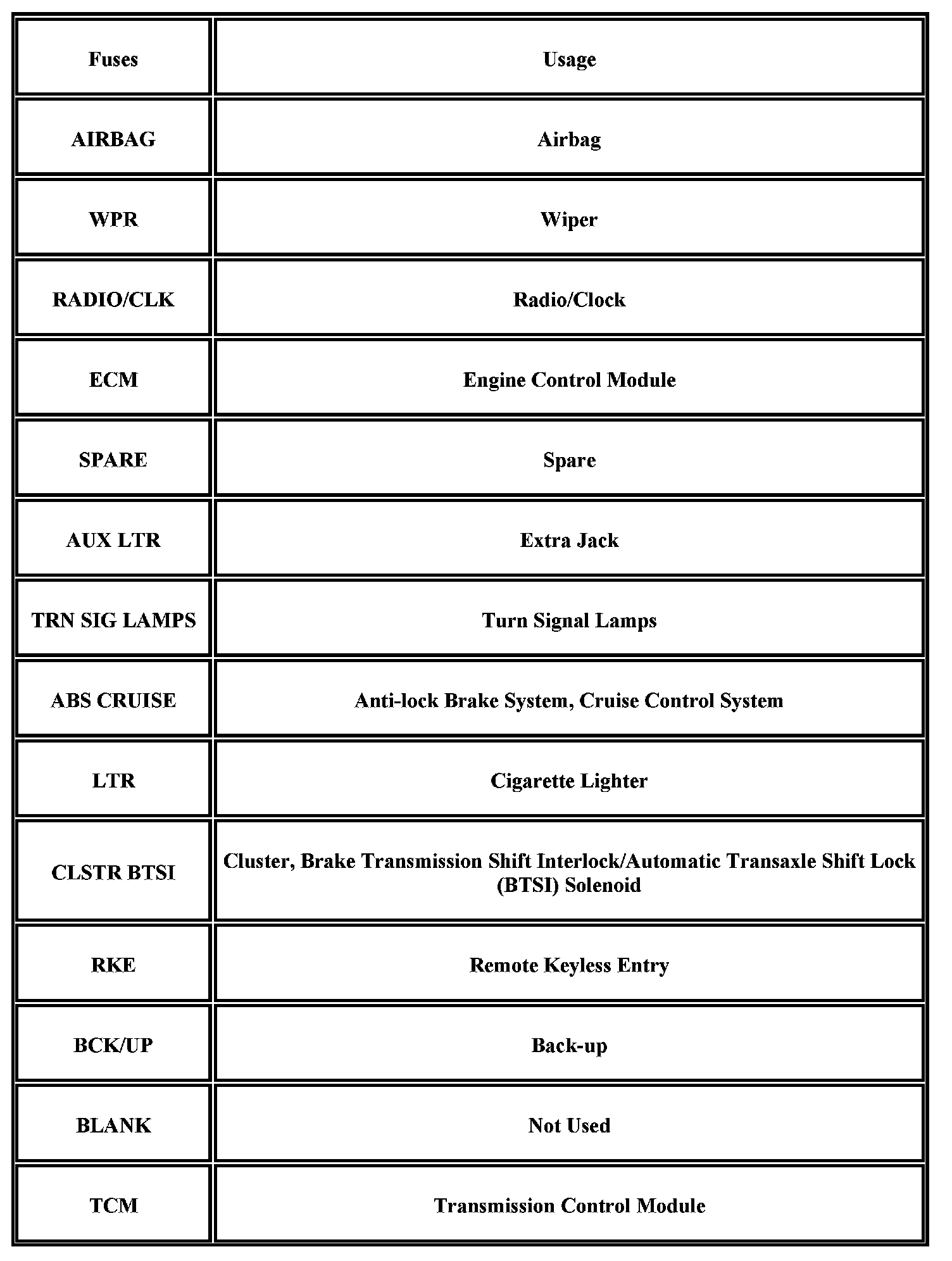

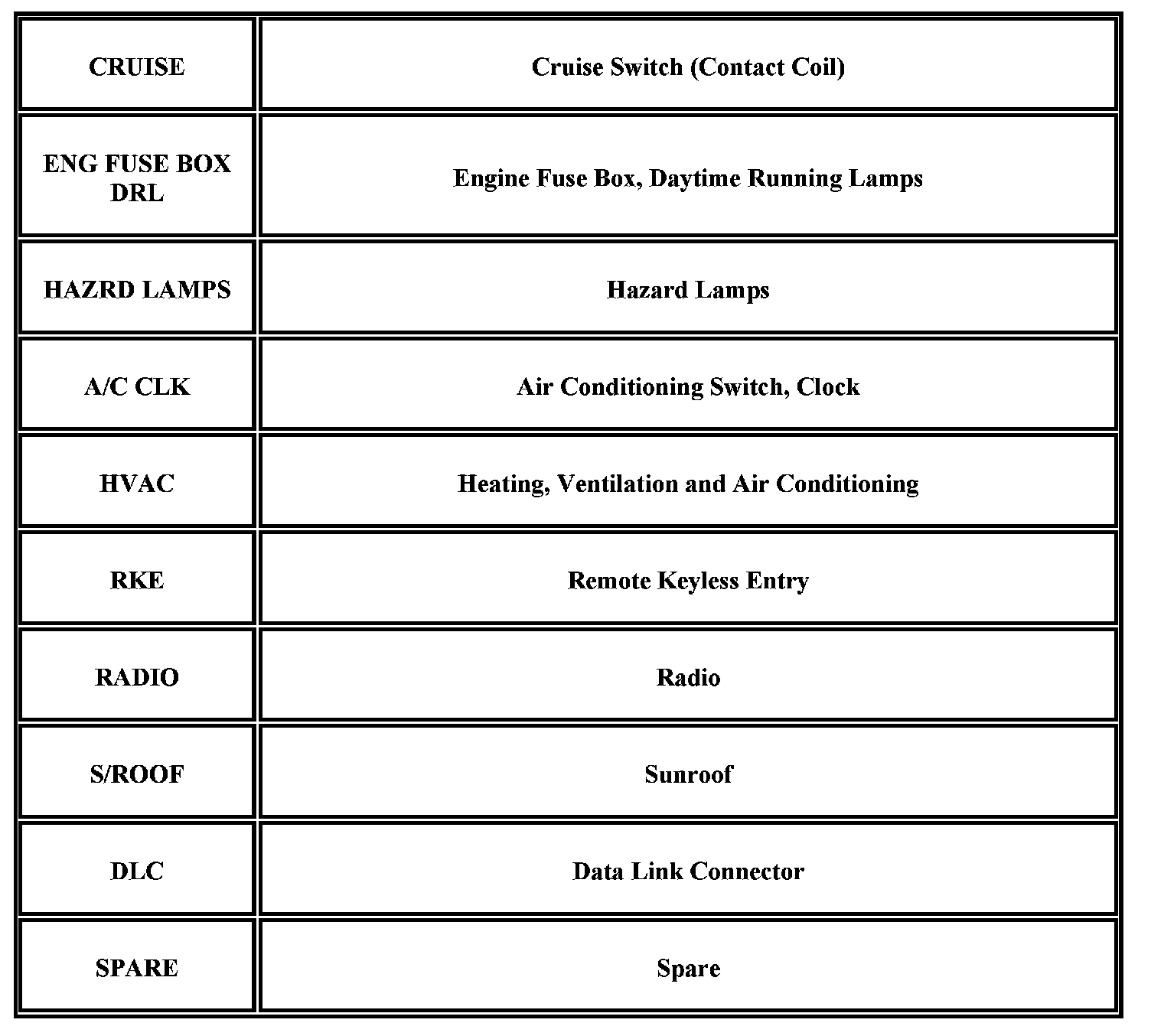

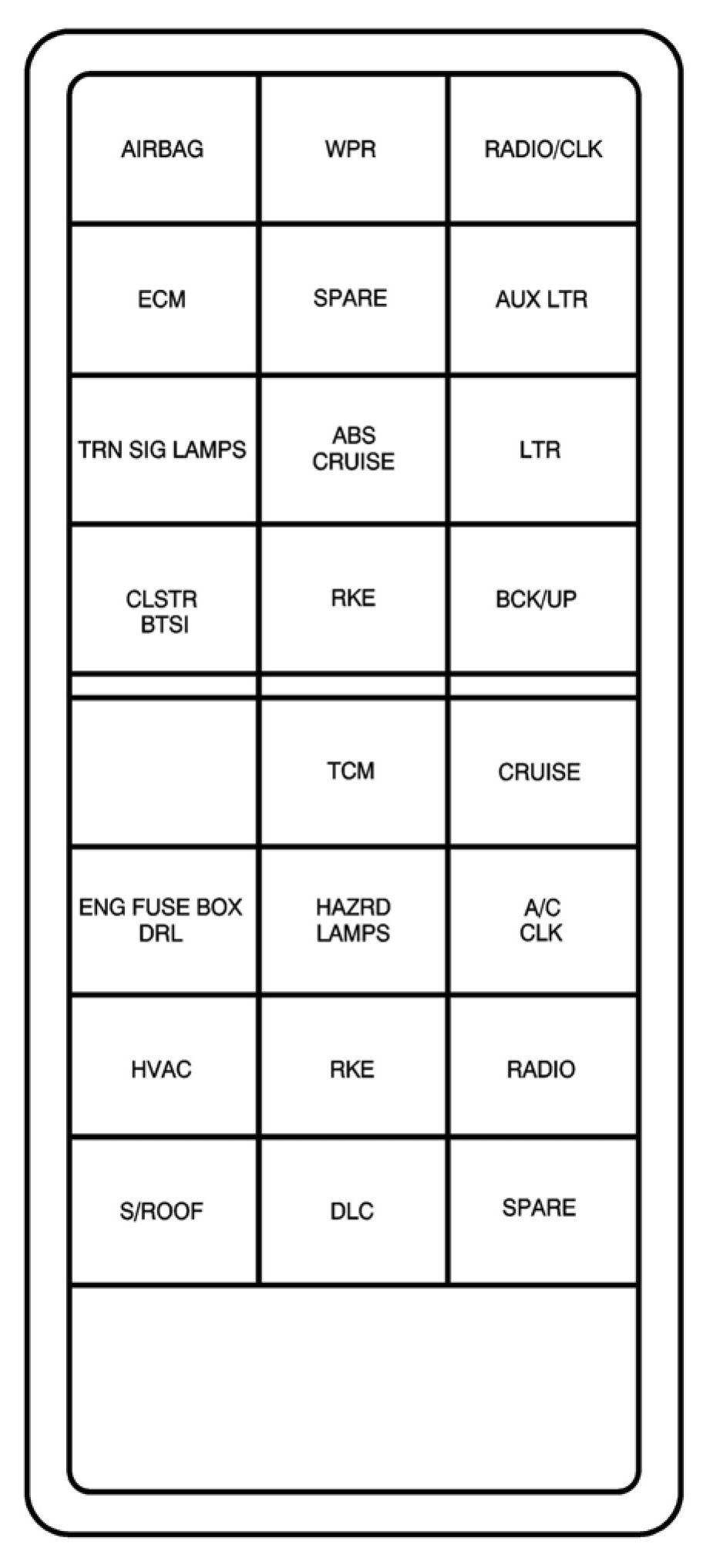

Instrument Panel Fuse Block
Instrument Panel Fuse Block

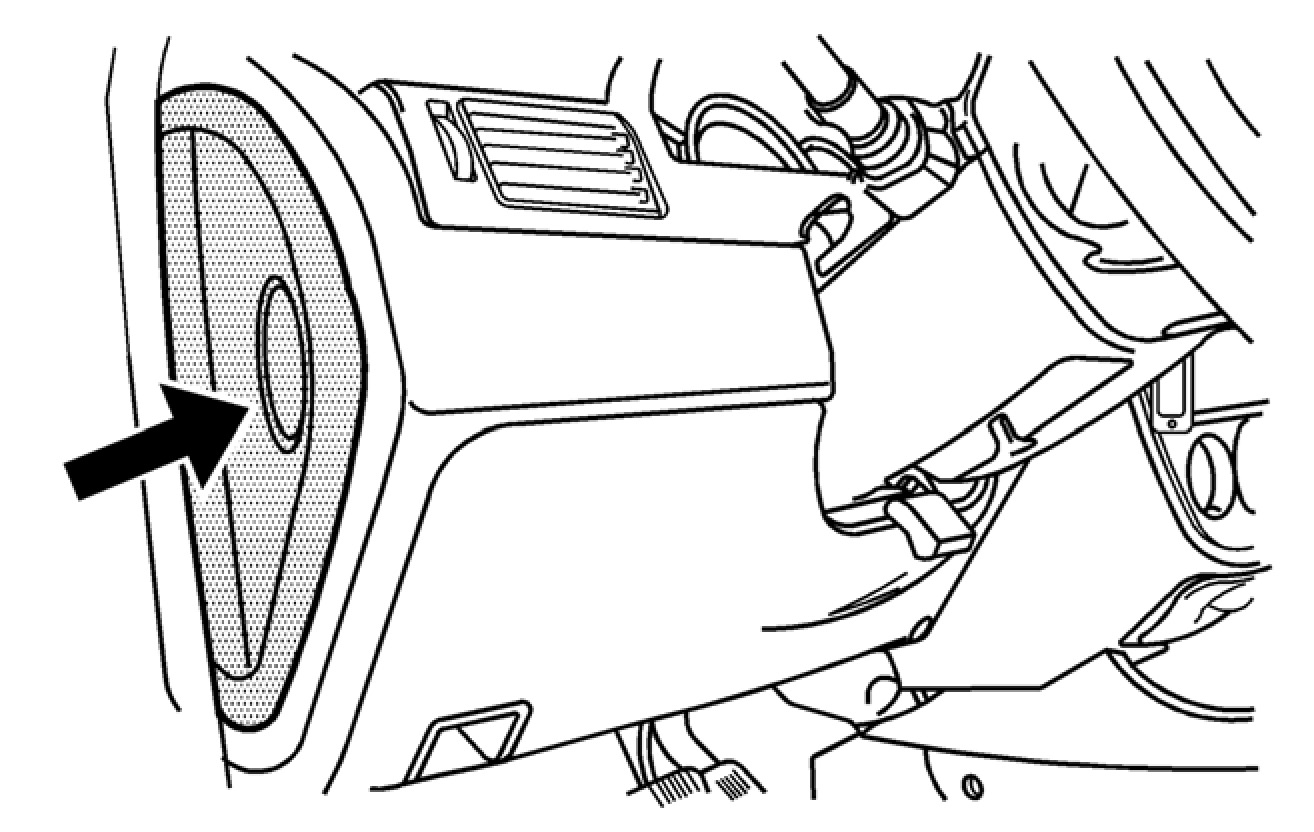

The instrument panel fuse block is located on the end of the instrument panel, on the driver's side of the vehicle. To access the fuses, open the fuse panel door by pulling out.
To reinstall the door, insert the tabs at the back end first, then push the door into the instrument panel to secure it.
