ZF 4HP 16 - Automatic Transmission




Automatic Transmission Controls Schematics

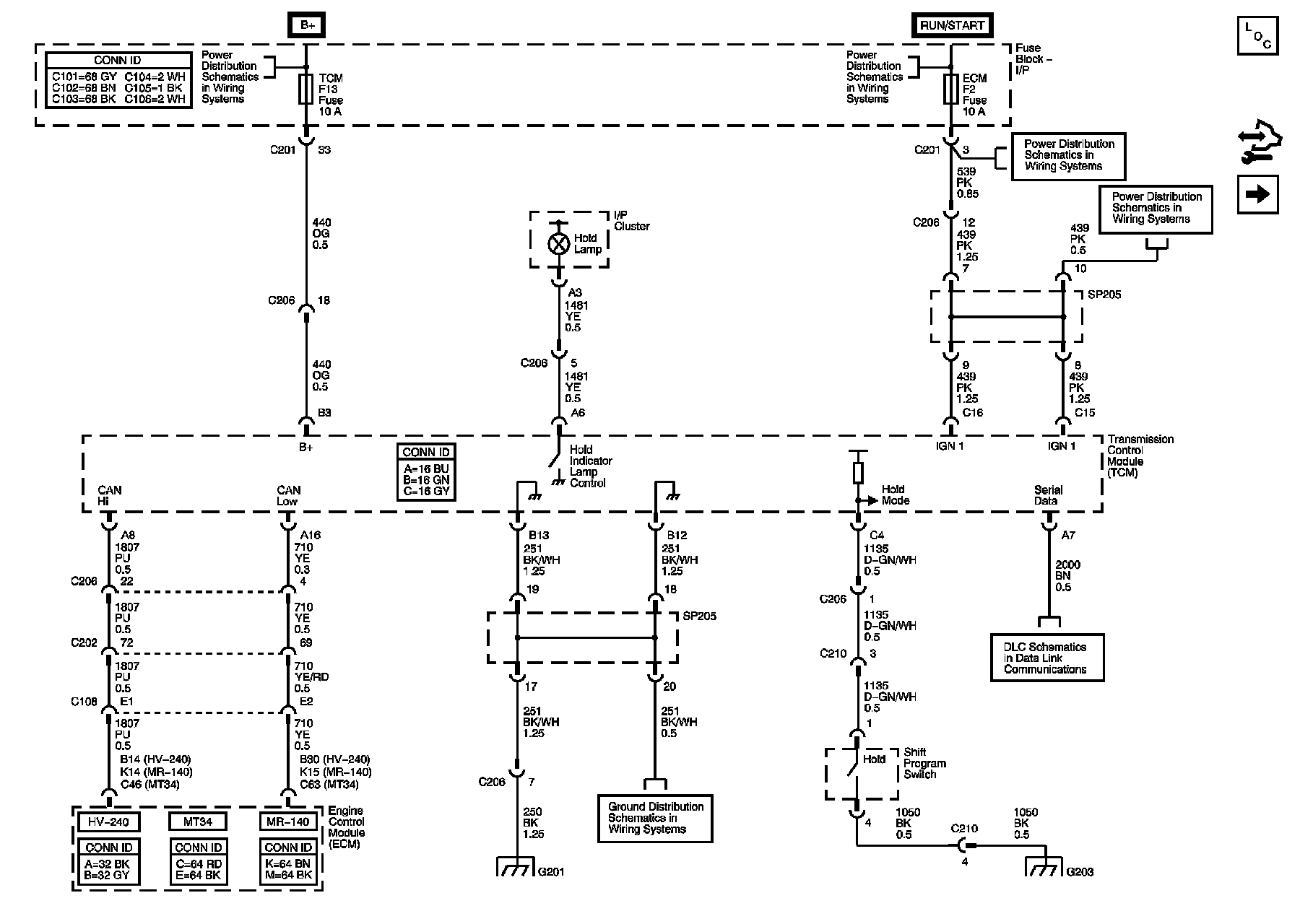

Power, Ground, Hold Switch and DLC





Master Electrical Component List

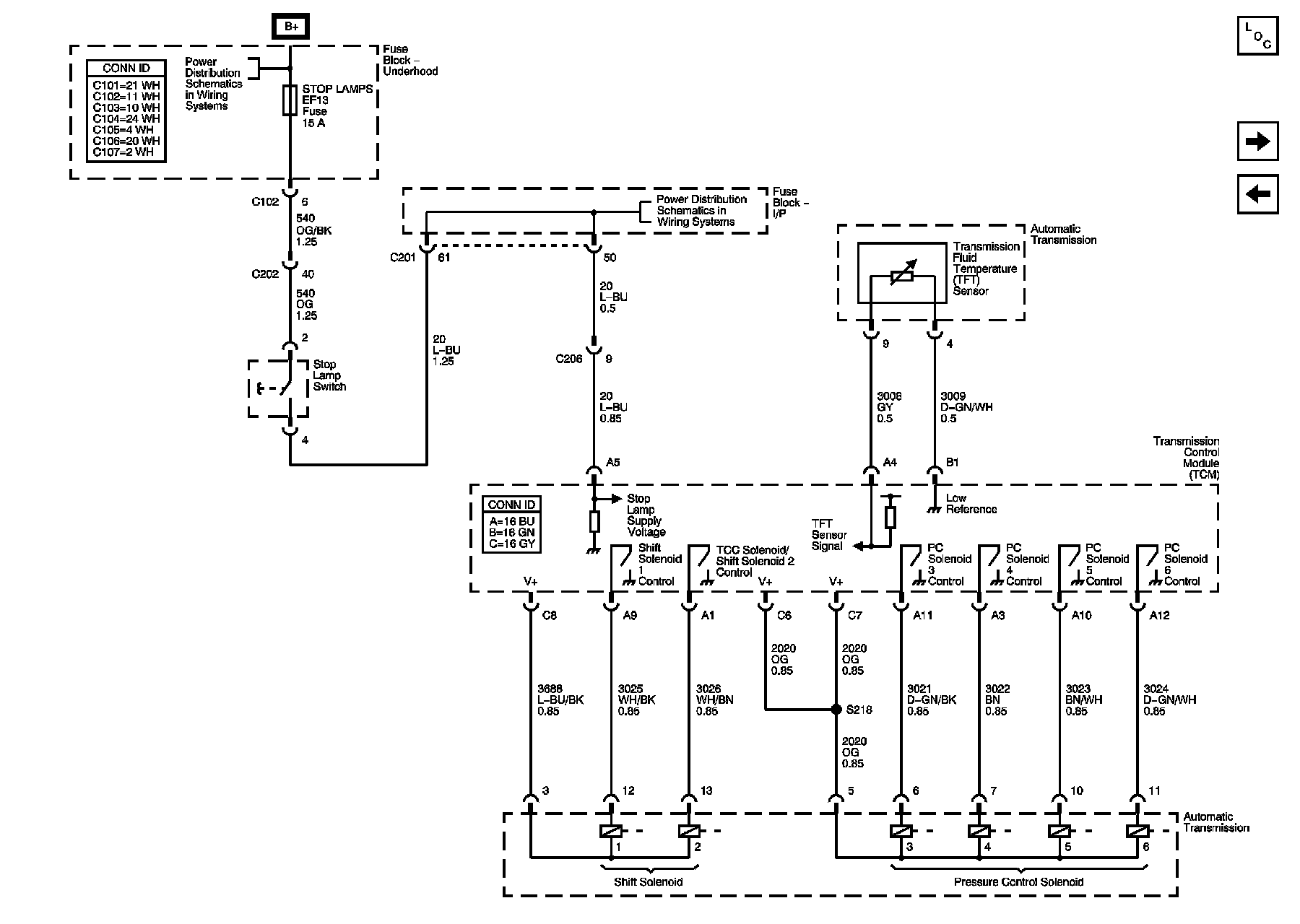

Shift and Pressure Control Solenoids
Underhood Fuse Block BATT PWR, IGN 1 and IGN 2 Fuses, Ignition Switch, I/P Fuse Block - RADIO, IMMOBILIZER, DLC, AUTO A/C, HAZARD LAMPS, RKE, TCM, REAR
I/P Fuse Block ECM Fuse
I/P Fuse Block ECM Fuse
Data Link Connector Schematics
G201 (2 of 2)
G201 (2 of 2)
G203

Shift and Pressure Control Solenoids





Master Electrical Component List

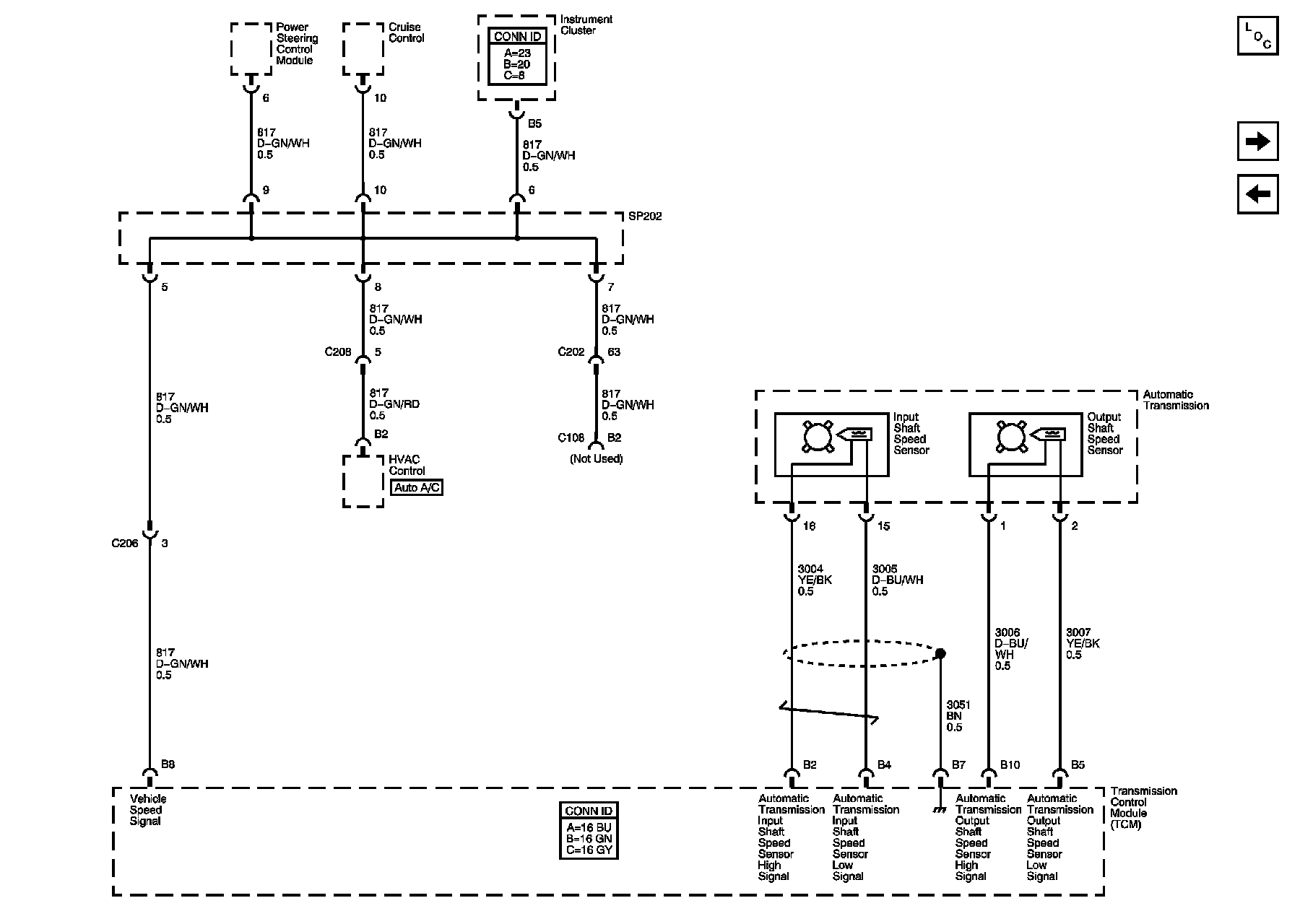

Vehicle Speed Signal
Power, Ground, Hold Switch and DLC
Underhood Fuse Block IP FUSE, DR/LOCK and STOP LAMP Fuses
Underhood Fuse Block IP FUSE, DR/LOCK and STOP LAMP Fuses

Vehicle Speed Signal





Master Electrical Component List

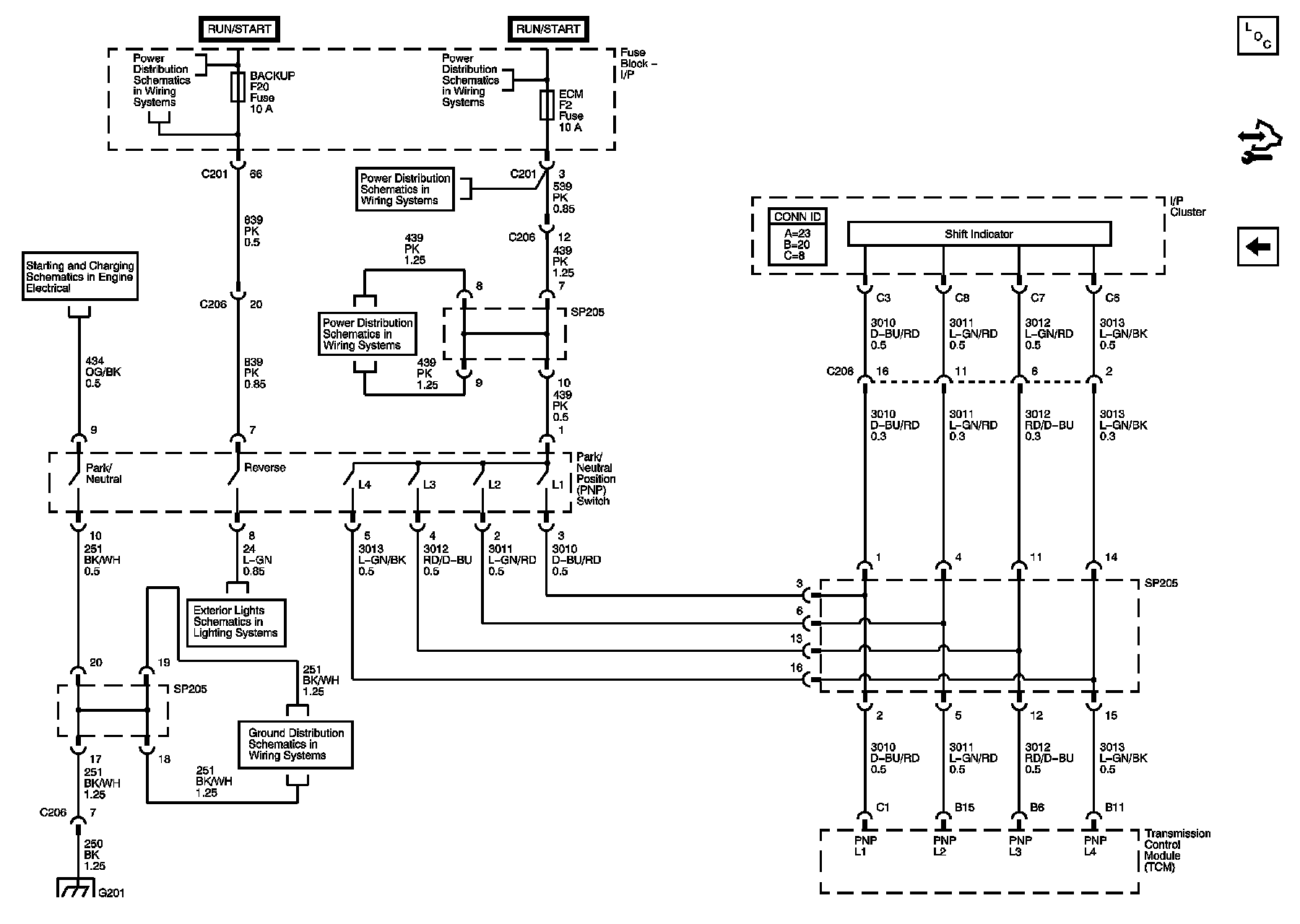

Park/Neutral Position Switch
Shift and Pressure Control Solenoids

Park/Neutral Position (PNP) Switch





Master Electrical Component List
Vehicle Speed Signal
I/P Fuse Block CLSTR, AIR BAG, BCK/UP and ENG FUSE BOX DRL Fuses
I/P Fuse Block ECM Fuse
I/P Fuse Block ECM Fuse
Starting and Charging Schematics
G201 (2 of 2)
Battery Saver
G201 (2 of 2)
G201 (2 of 2)
