Transmission and Drivetrain: Application and ID

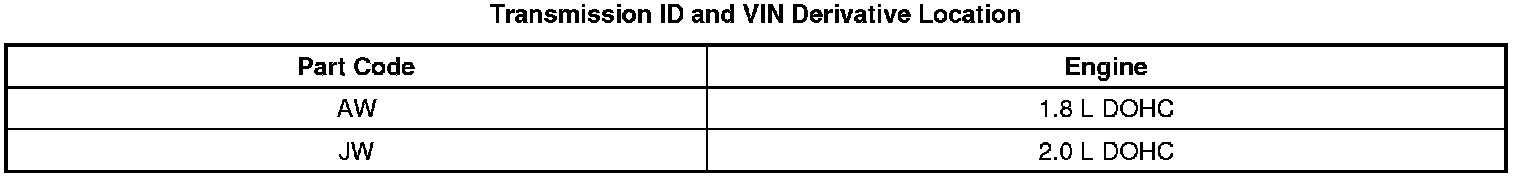

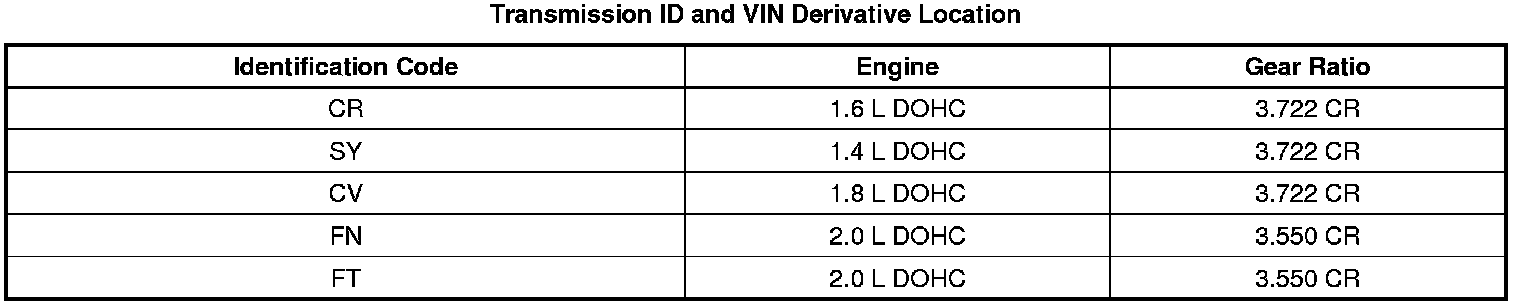

Transmission ID and VIN Derivative Location

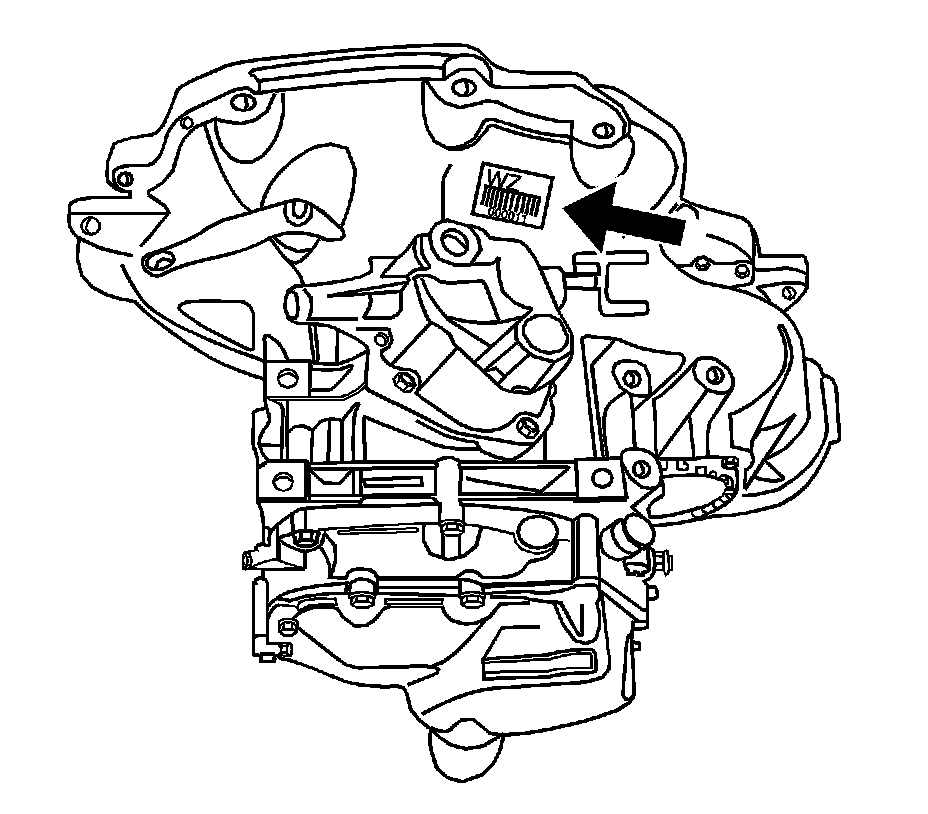

Manual Transaxle Identification Number Location





The manual transaxle identification number is attached to the top of the transmission case near the engine.

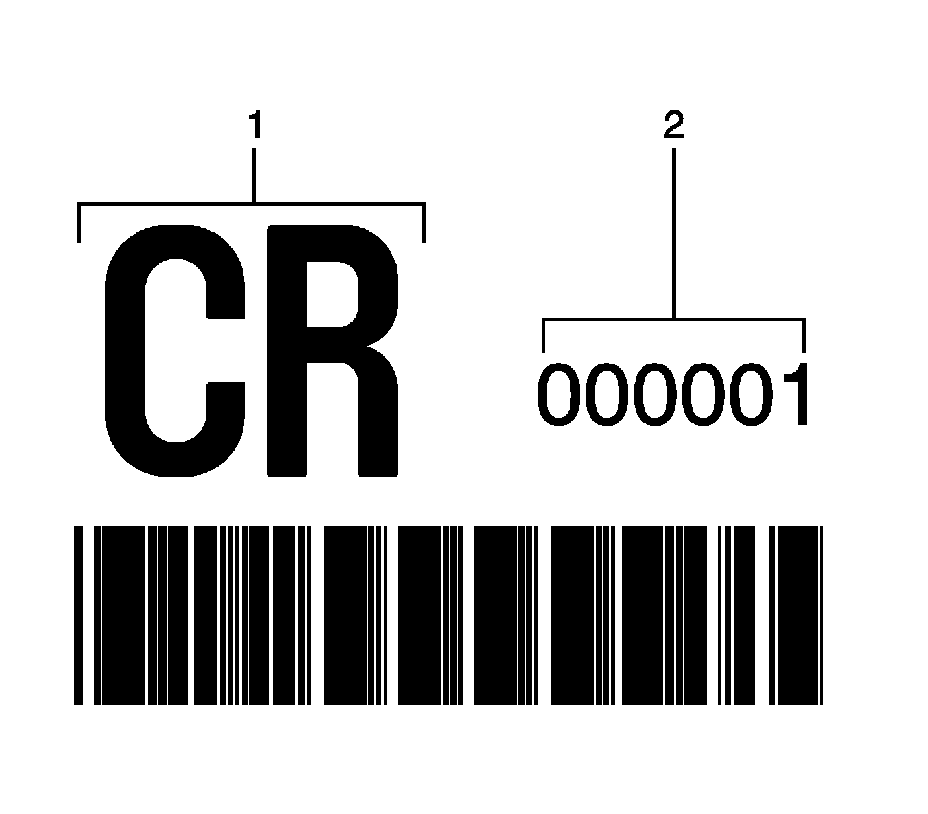

Manual Transmission Identification Number Derivative





1. Identification Code

2. Sequential Number

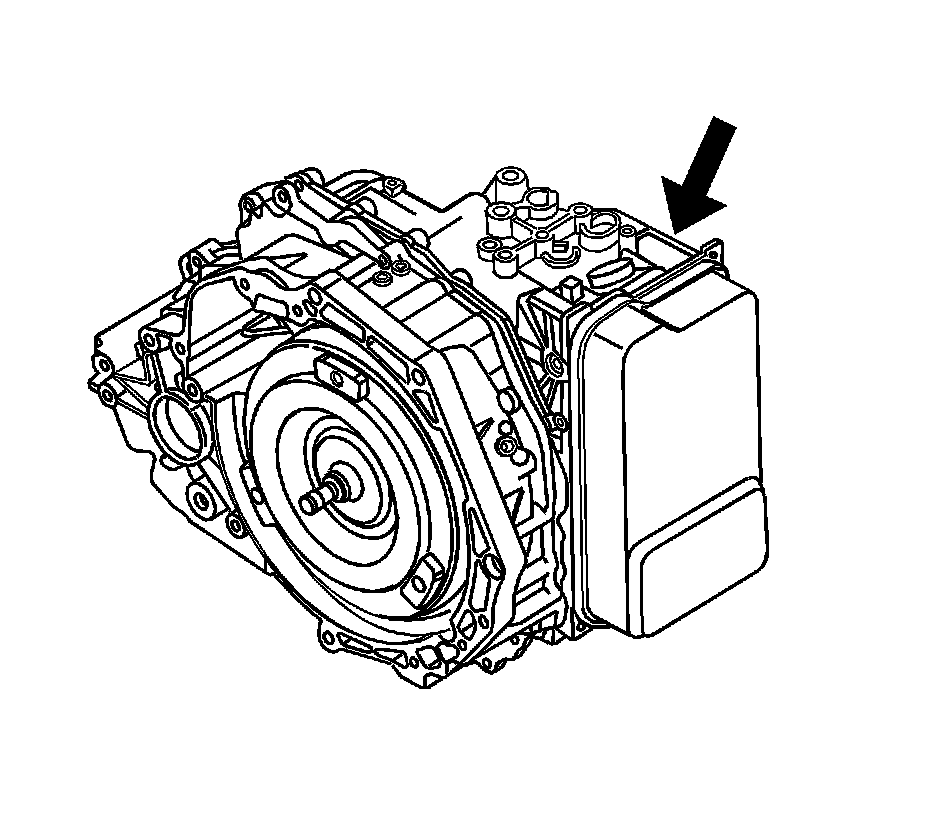

Automatic Transaxle Identification Number Location (ZF 4HP16)





The automatic transaxle identification number plate is attached on the rear bottom side of the transaxle case near the bulk head.

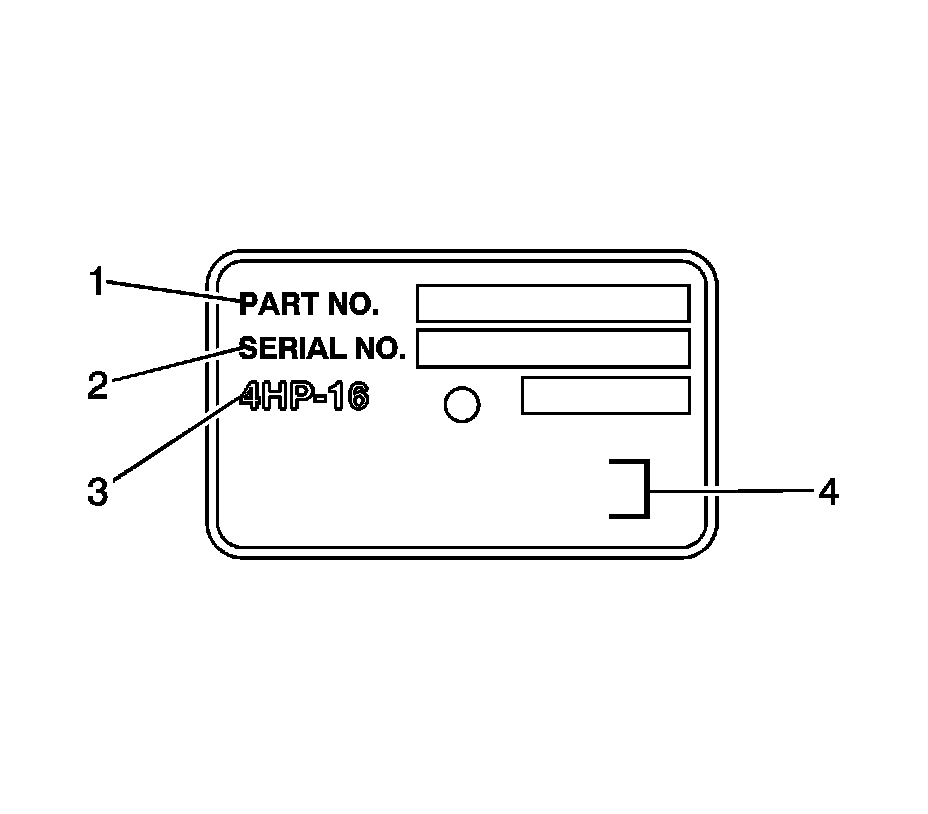

Automatic Transmission Identification Number Derivative (ZF 4HP16)





1. Part Number

2. Serial Number

3. Model Code

4. Manufactured Nation and Company

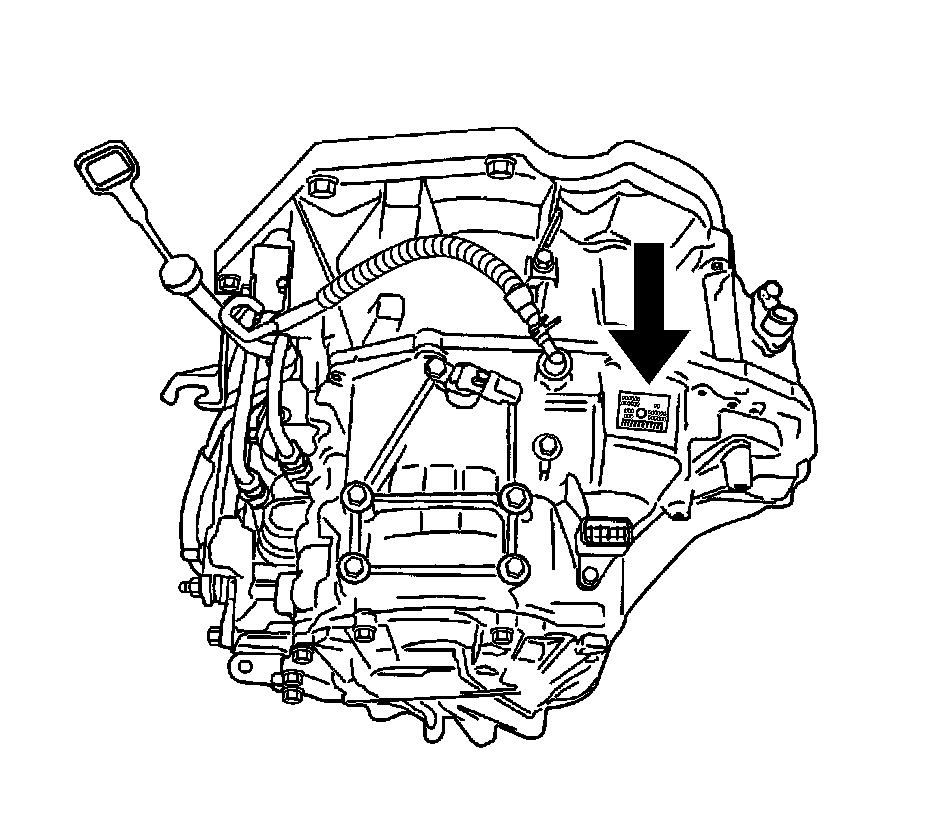

Automatic Transmission Identification Number Location (Aisin 81-40LE)





The automatic transaxle identification number plate is attached on the upper side of the transaxle case.

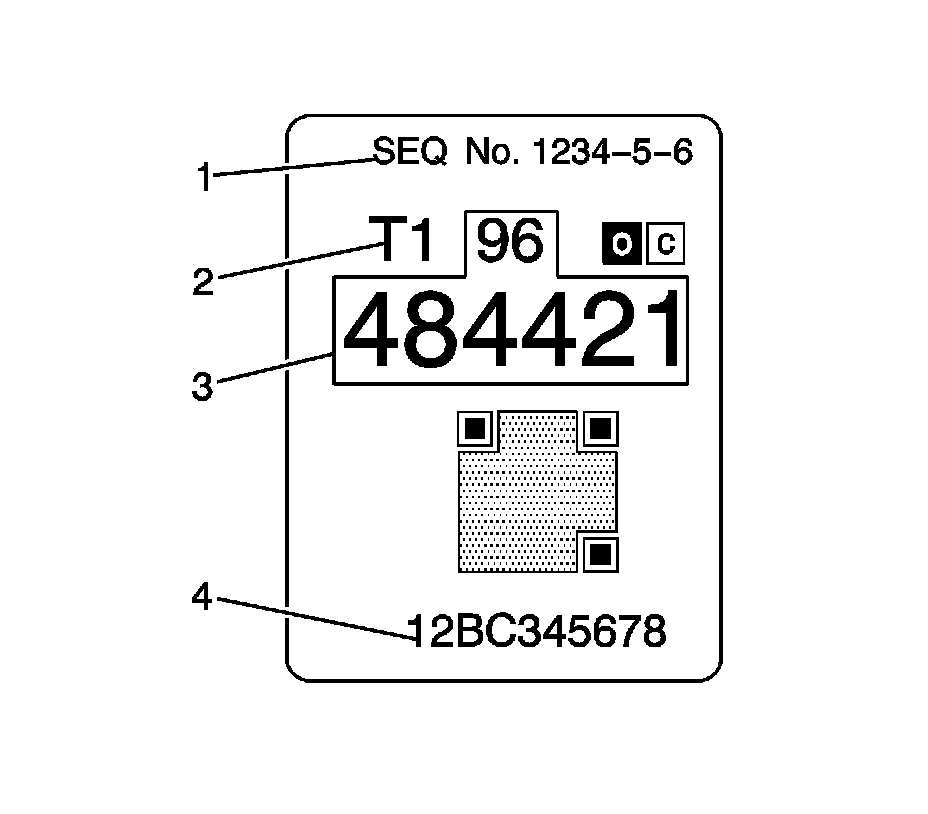

Automatic Transmission Identification Number Derivative (Aisin 81-40LE)





1. Lot Number

2. Part ID Code

3. Part Number

4. Serial Number
