Speedometer Gear, M/T: Service and Repair




Speedometer Driven Gear Replacement

Removal Procedure

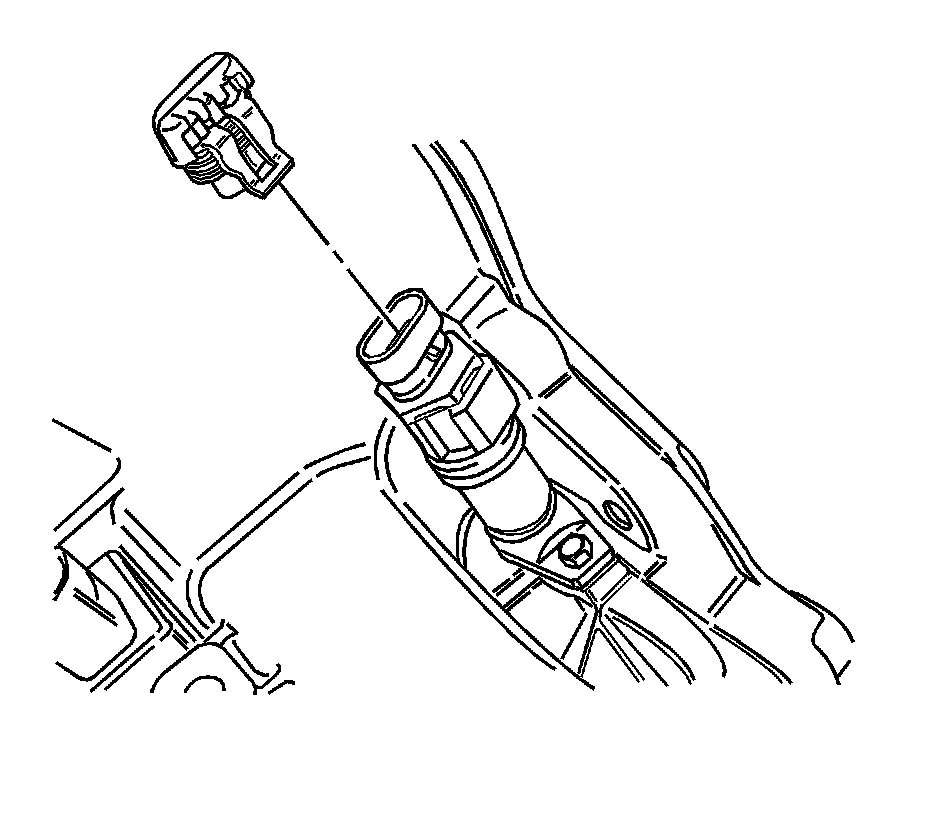

1. Disconnect the speedometer speed sensor electrical connector.





2. Remove the speedometer housing retaining bolt.

3. Remove the speedometer-driven gear and the speedometer housing.

Installation Procedure





1. Coat the O-ring with petroleum jelly.

2. Install the speedometer-driven gear and the speedometer housing.

Notice:
Refer to Fastener Notice Fastener Notice in Cautions and Notices.

3. Install the speedometer housing retaining bolt.

Tighten the speedometer housing retaining bolt to 4 Nm (35 lb in).





4. Connect the speedometer speed sensor electrical connector.
