Electrical Diagrams




Wiper/Washer Schematics

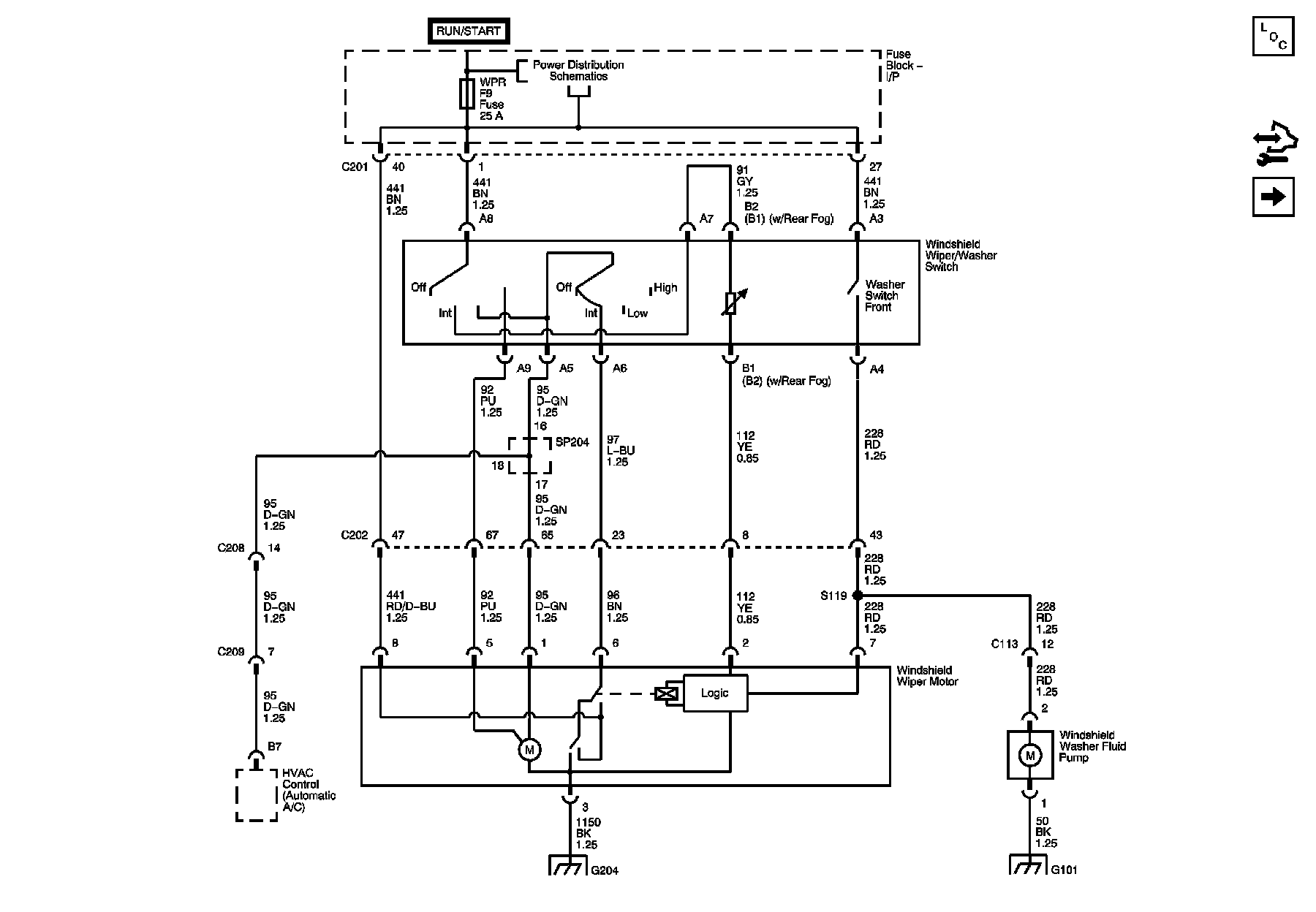

Wiper System- Notchback





Master Electrical Component List
Wiper System - Hatchback and Station Wagon
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
G101
Link target Object 1653969 does not exist in this publication.

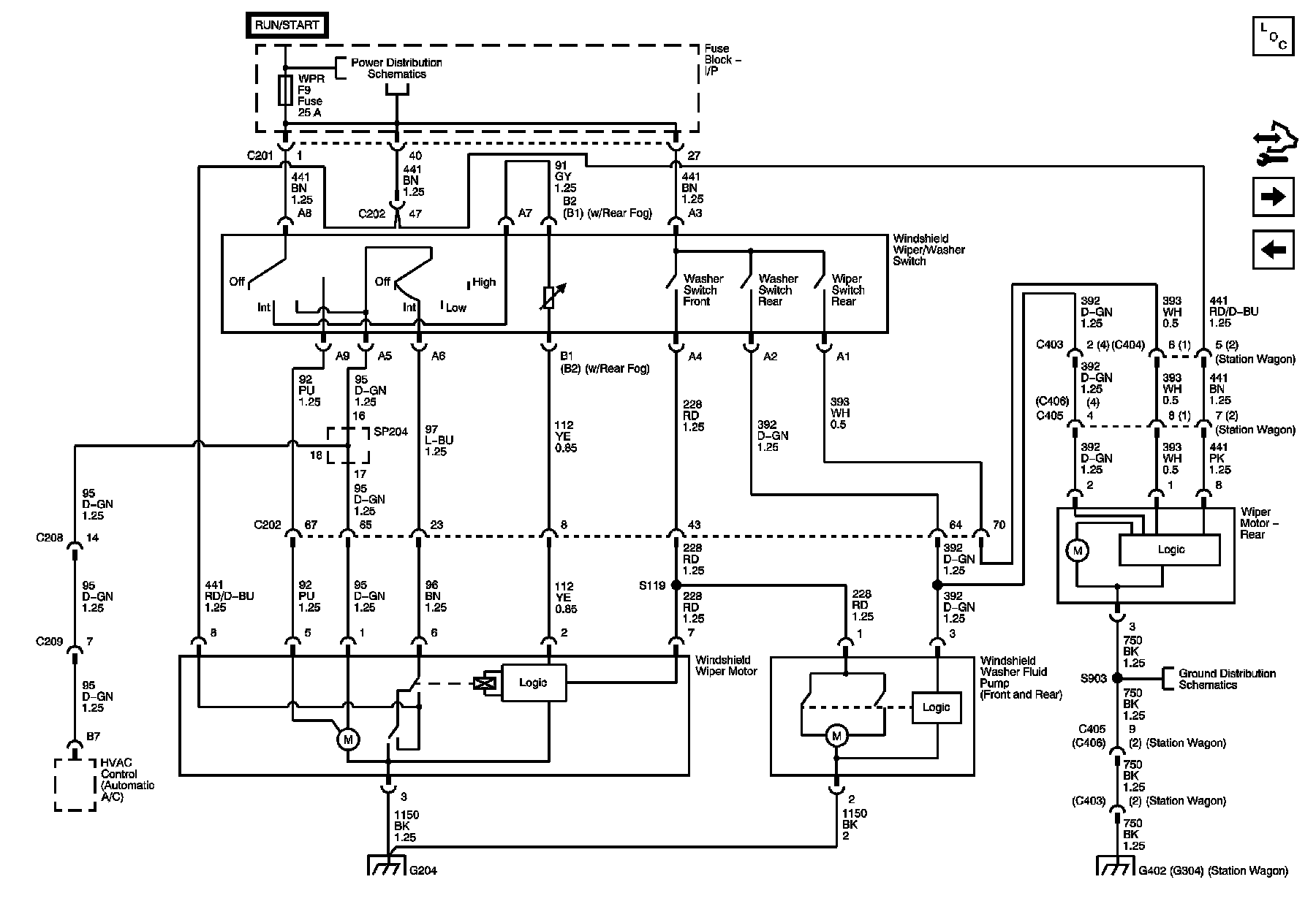

Wiper System- Hatchback and Station Wagon





Master Electrical Component List
Wiper System - Hatchback and Station Wagon w/Intermittent
Wiper System - Notchback
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
G303, G401
Link target Object 1653972 does not exist in this publication.
Link target Object 1653972 does not exist in this publication.

Wiper System- Hatchback and Station Wagon w/Intermittent





Master Electrical Component List
Wiper System - Hatchback and Station Wagon
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
G303, G401
Link target Object 1653972 does not exist in this publication.
Link target Object 1653972 does not exist in this publication.

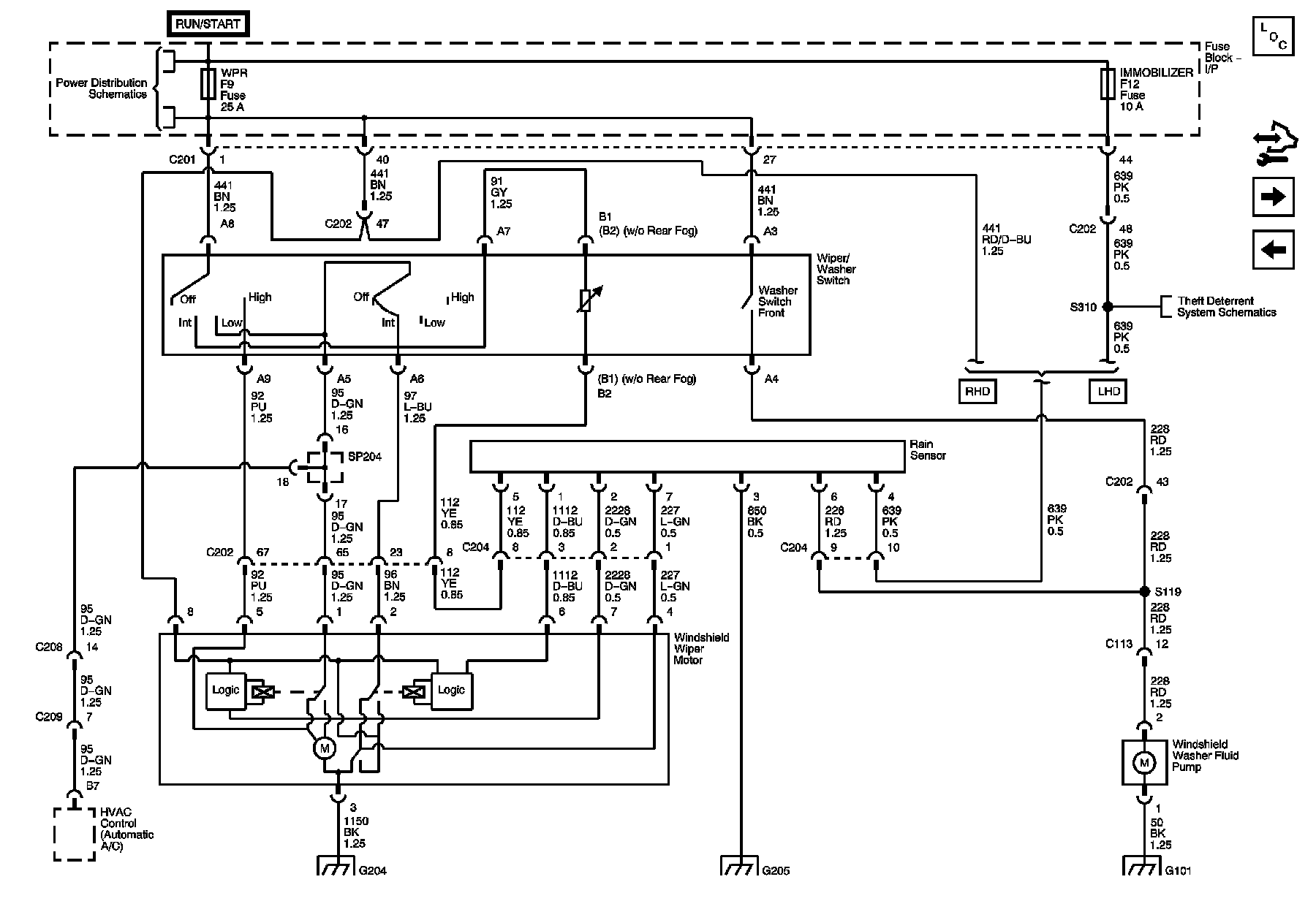

Wiper System- Notchback w/Rain Sensor





Master Electrical Component List
Hatchback and Station Wagon w/Rain Sensor
Wiper System - Hatchback and Station Wagon w/Intermittent
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
Remote Control Door LK Receiver
G101
G303, G401
G204, G301

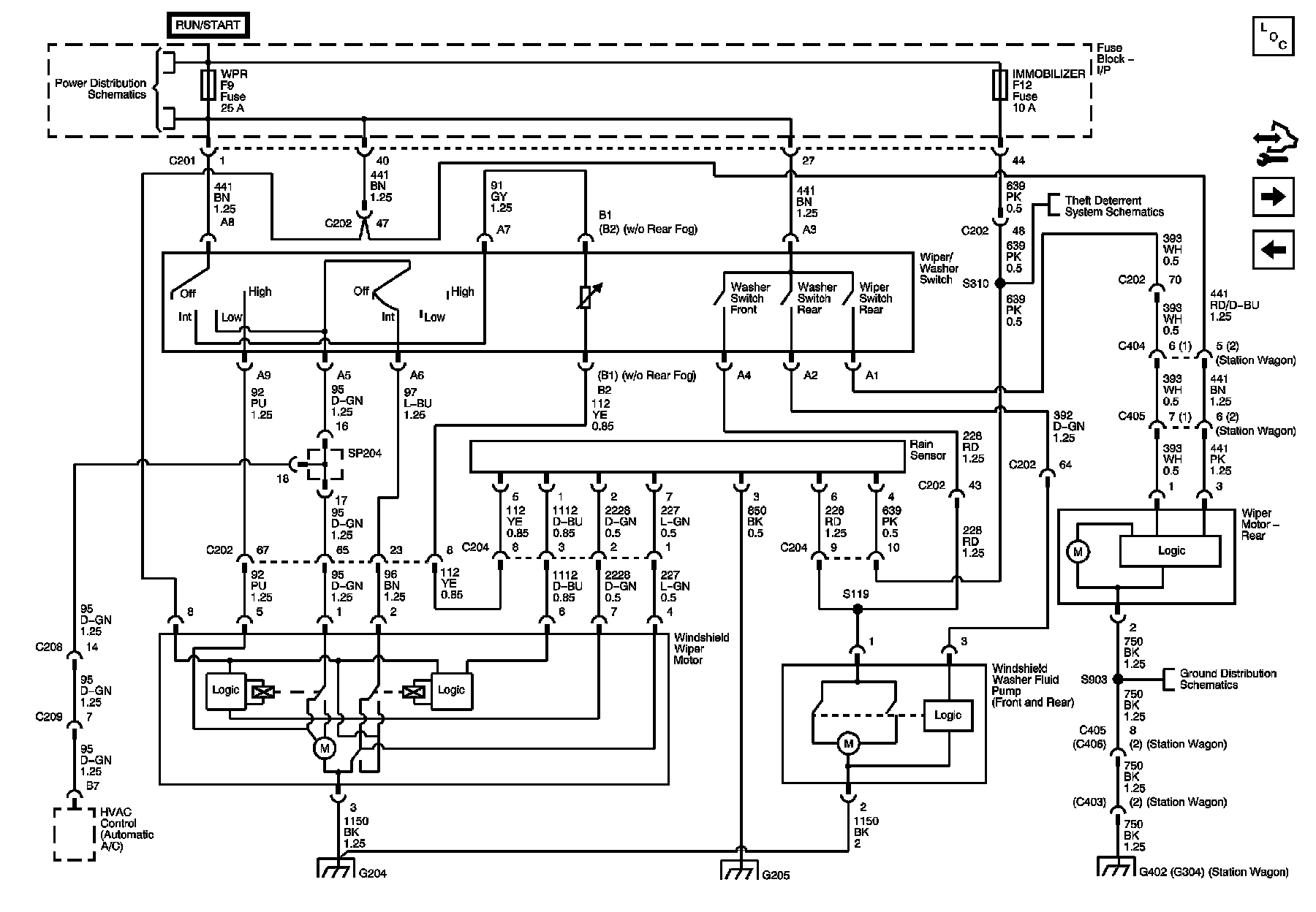

Wiper System- Hatchback and Station Wagon w/Rain Sensor





Master Electrical Component List
Hatchback and Station Wagon w/Intermittent and Rain Sensor
Notchback w/Rain Sensor
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
Remote Control Door LK Receiver
G204, G301
G303, G401
Link target Object 1653972 does not exist in this publication.
Link target Object 1653972 does not exist in this publication.

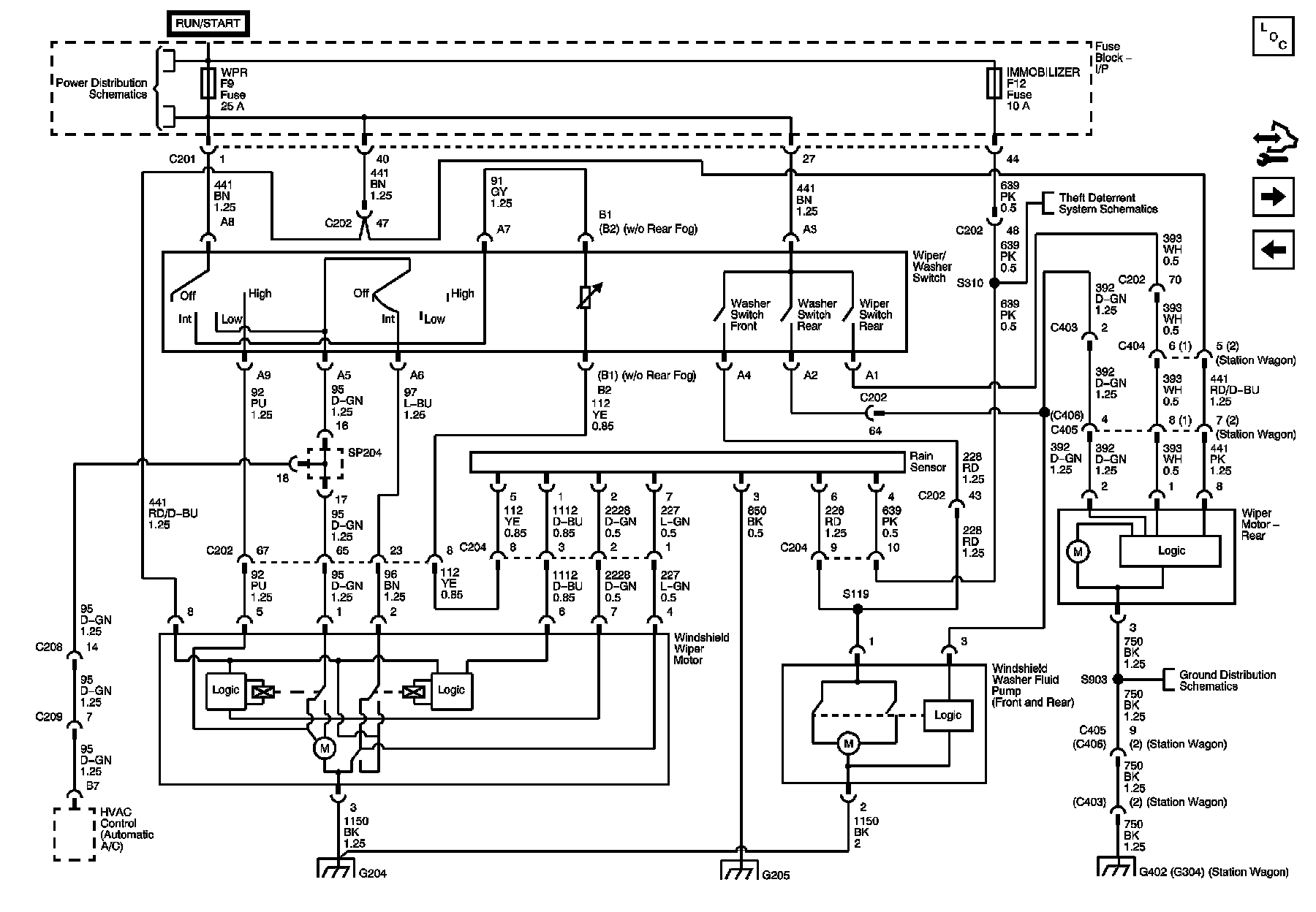

Wiper System- Hatchback and Station Wagon w/Intermittent and Rain Sensor





Master Electrical Component List
Hatchback and Station Wagon w/Rain Sensor
I/P Fuse Block ABS IMMOBILIZER, WRP, and TRN SIG LAMPS Fuses
Remote Control Door LK Receiver
G204, G301
G303, G401
Link target Object 1653972 does not exist in this publication.
Link target Object 1653972 does not exist in this publication.
