Windshield Washer Pump: Service and Repair




Washer Pump Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the left front wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

3. Remove the bolts and the screws and the front wheel well splash shield.

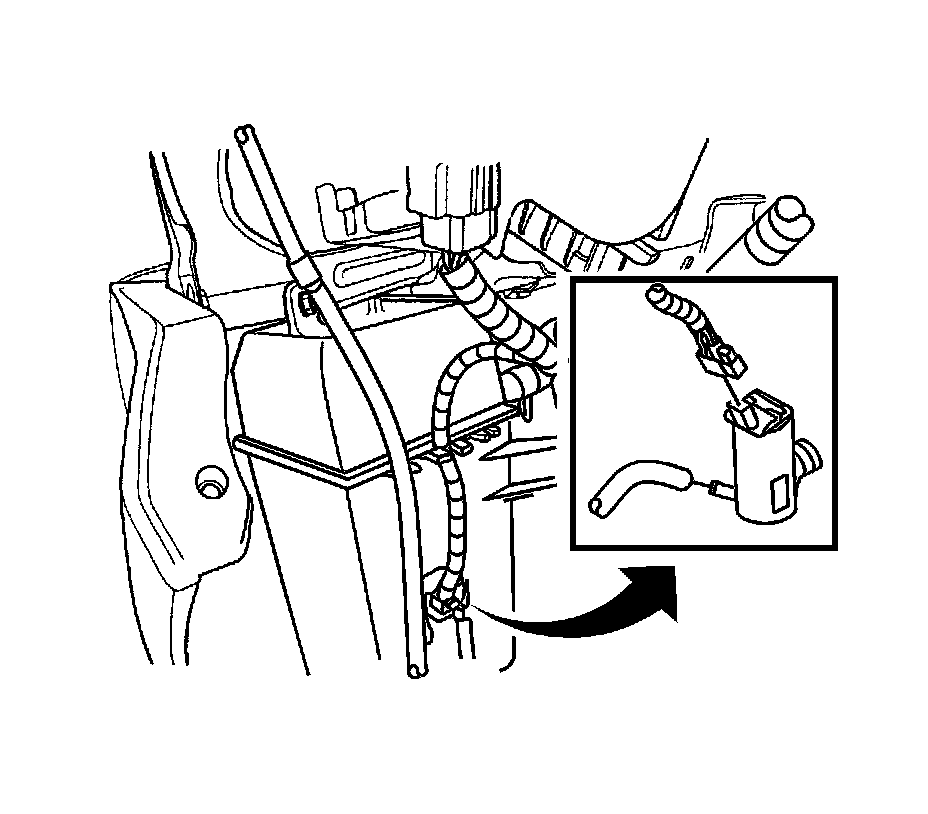

4. Disconnect the electrical connector.

5. Disconnect the washer hose from the washer pump.

6. Remove the washer pump.

Installation Procedure





1. Install the washer pump.

2. Connect the washer hose to the washer pump.

3. Connect the electrical connector.

Notice:
Refer to Fastener Notice Fastener Notice.

4. Install the front wheel well splash shield with the bolts and screws.

5. Install the left front wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

6. Connect the negative battery cable.
