Windshield Washer Reservoir: Service and Repair




Windshield Washer Solvent Container and Pump Replacement

Removal Procedure





Caution:
Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.

2. Remove the front left wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

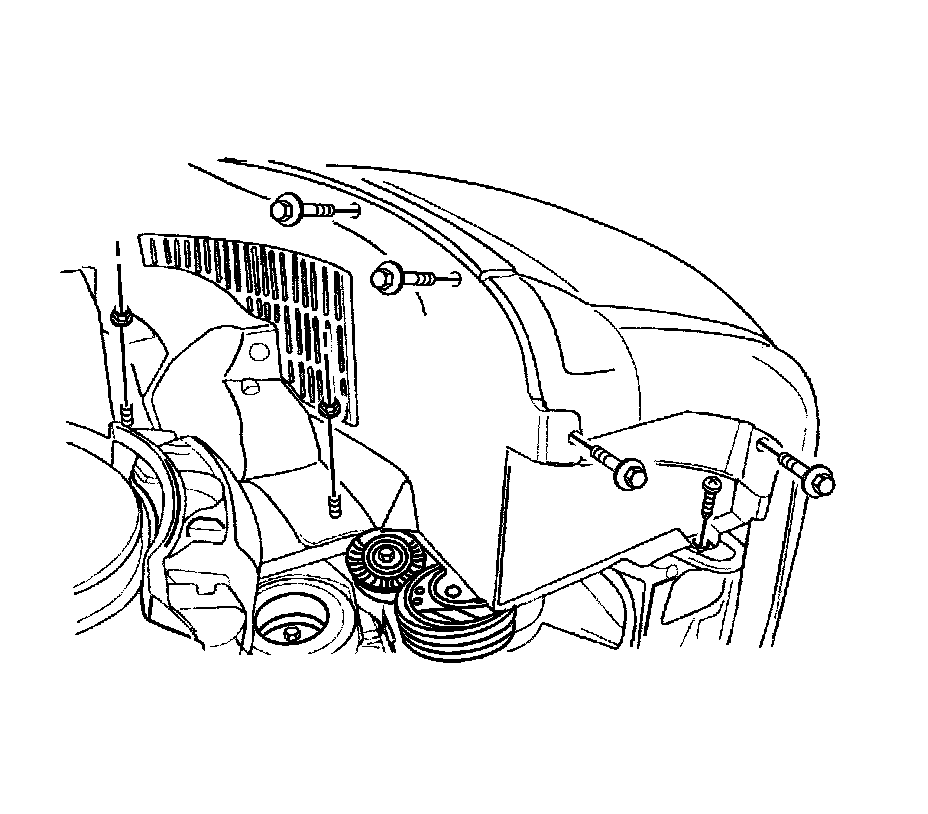

3. Remove the bolts and the screws and the front wheel well splash shield.





4. Disconnect the washer hose from the washer pump.

5. Disconnect the reservoir pump electrical connectors.

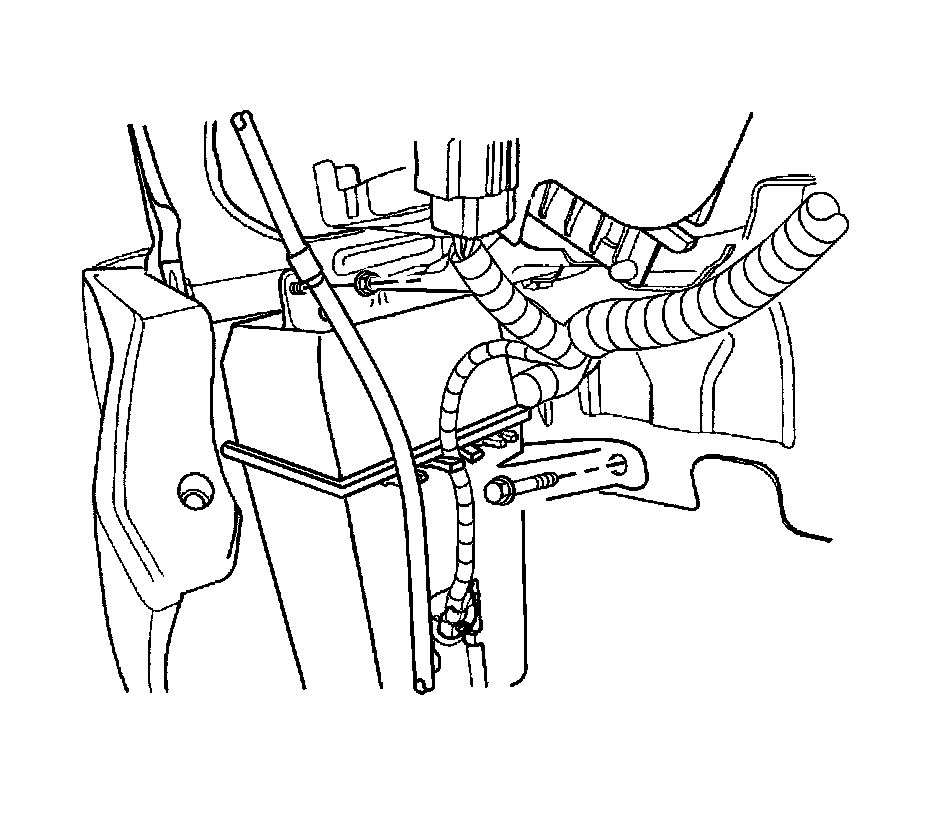

6. Remove the bolts and the reservoir.

Installation Procedure





Notice:
Refer to Fastener Notice Fastener Notice.

1. Install the reservoir with the bolts.

Tighten the washer fluid reservoir bolts to 8 Nm (71 lb in).

2. Connect the reservoir pump electrical connector.

3. Connect the washer hose to the washer pump.





4. Install the front wheel well splash shield with the bolts and screws.

Tighten the front wheel well splash shield bolts to 1.5 Nm (13 lb in).

5. Install the front left wheel. Refer to Tire and Wheel Removal and Installation Service and Repair.

6. Connect the negative battery cable.
