Windshield Wiper Arm Replacement
Windshield Wiper Arm ReplacementRemoval Procedure 1.
Open the hood.
2.

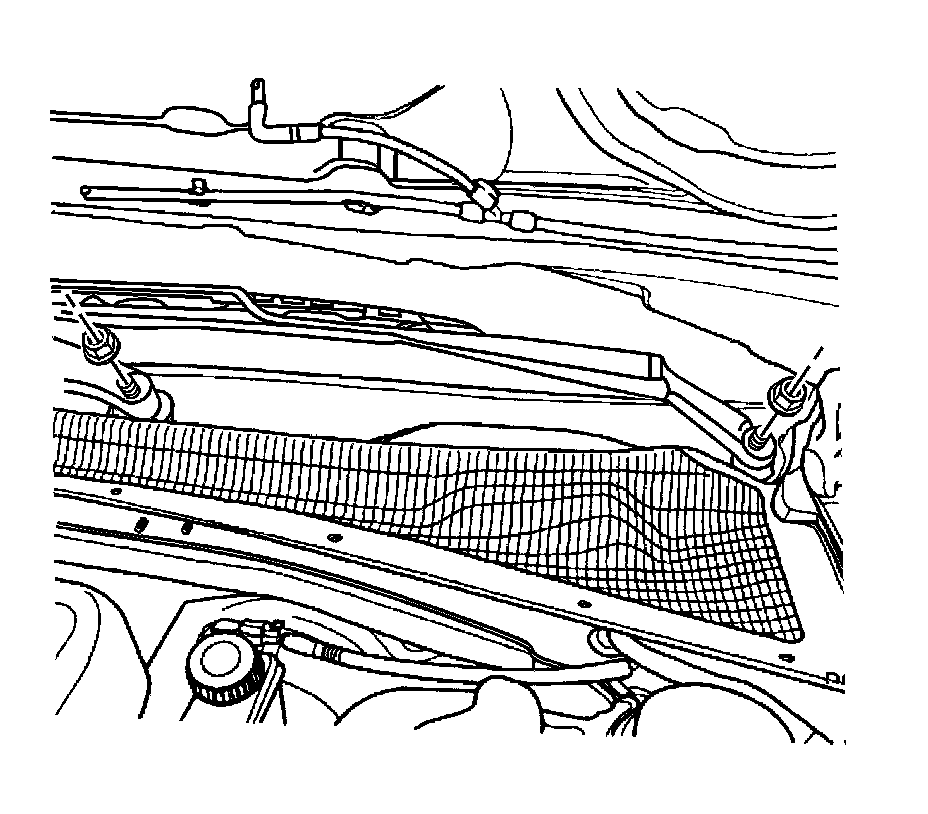

If necessary, remove the cap to reveal the
wiper arm nut.
3.
Remove the nut from the
wiper arm.
4.
Pull the
wiper arm off.
Installation Procedure 1.
Install the
wiper arm.
Notice: Refer to Fastener Notice
Fastener Notice.
2.
Secure the
wiper arm with the nut.
Tighten the wiper arm nut to 22 Nm (16 lb ft). 3.
Close the hood.
