Center Floor

AIR OUTLET DUCT REPLACEMENT - CENTER FLOOR

REMOVAL PROCEDURE

1. Remove the floor console side extensions.
2. Remove the left floor outlet duct.
3. Remove the right floor outlet duct.

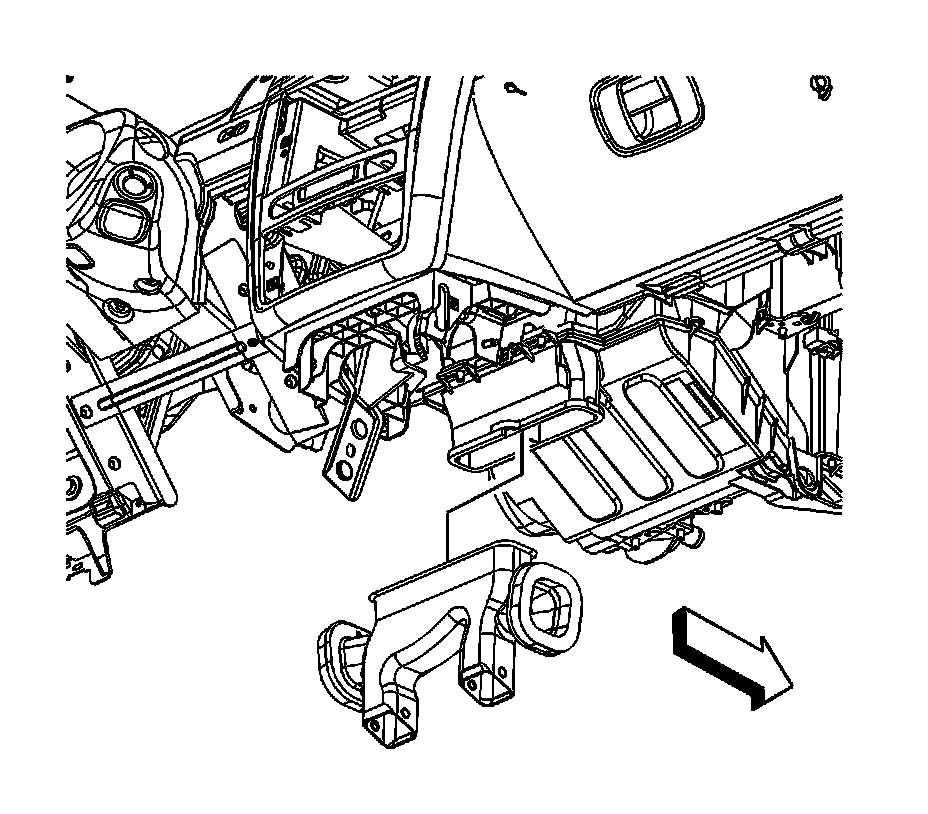

4. Remove the center floor air outlet duct.

INSTALLATION PROCEDURE

1. Install the center floor air outlet duct.
2. Install the right floor outlet duct.
3. Install the left floor outlet duct.
4. Install the floor console side extensions.
