Battery Negative Cable Replacement

BATTERY NEGATIVE CABLE REPLACEMENT

REMOVAL PROCEDURE
1. Lift the carpet to gain access to the battery cables.
2. Disconnect the negative battery cable.

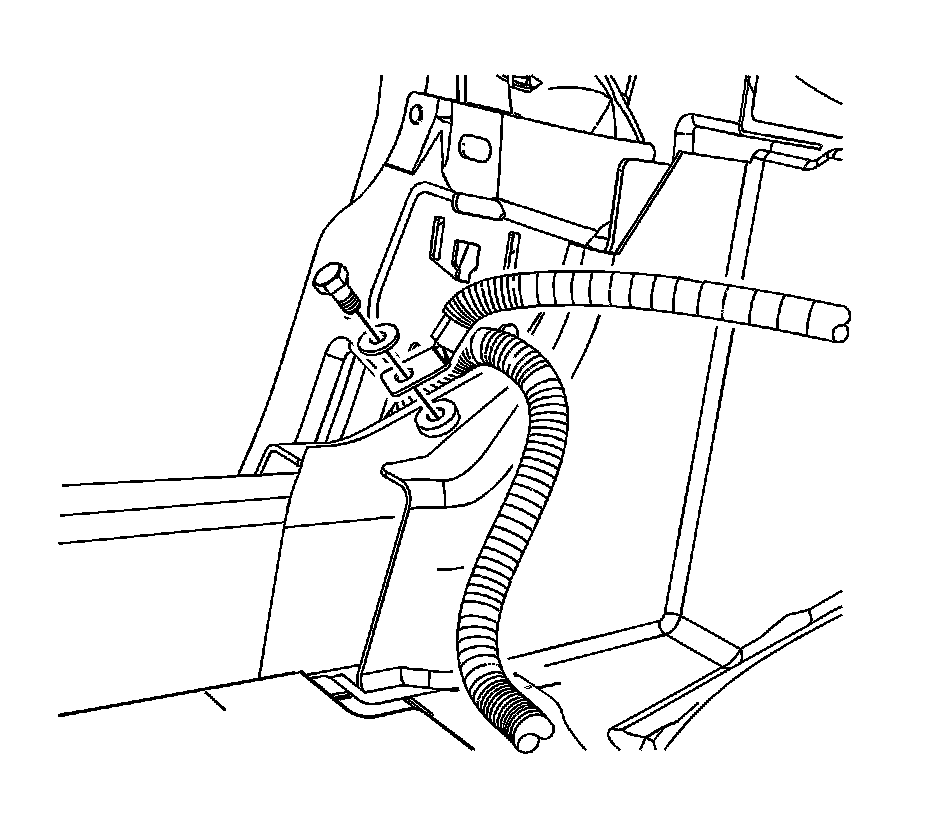

3. Unbolt the negative cable ground lead from the chassis.
4. Remove the negative battery cable.

INSTALLATION PROCEDURE
1. Install the negative battery cable.

2. Bolt the negative cable ground lead to the chassis.
3. Connect the negative battery cable.
4. Reposition the carpet.
