Battery Positive Cable Replacement



BATTERY POSITIVE CABLE REPLACEMENT

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

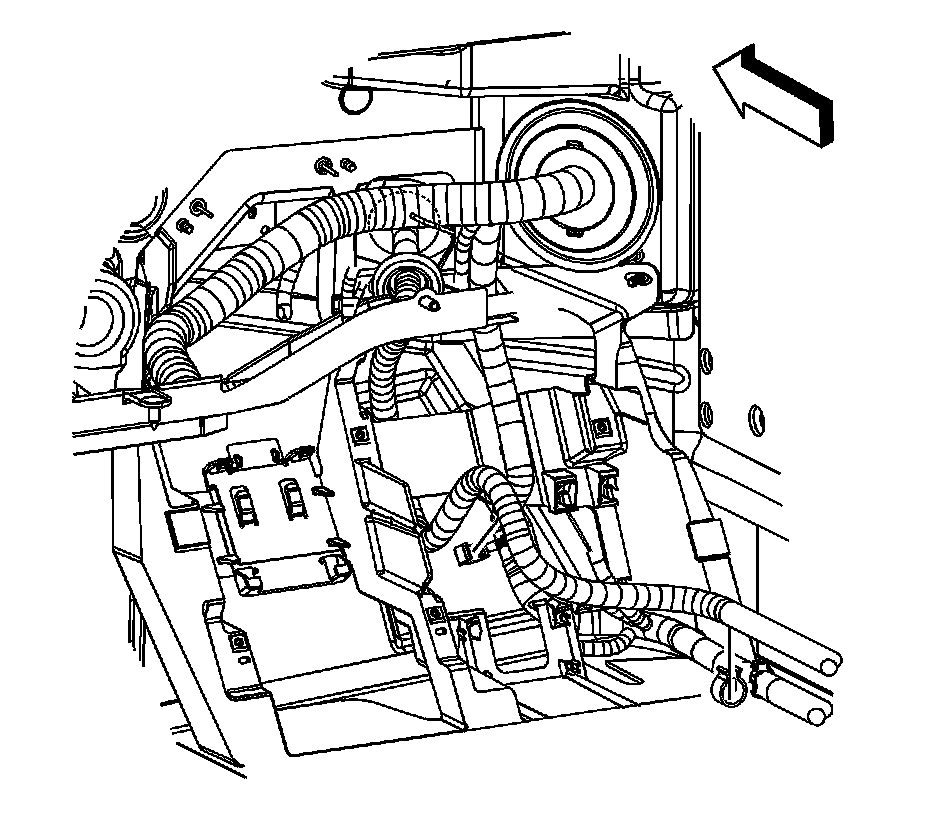

2. Open the stud cover on the fuse/relay center.




3. Remove the positive battery cable nut from the fuse/relay center stud.
4. Remove the positive battery cable lead (2) from the fuse/relay center stud.

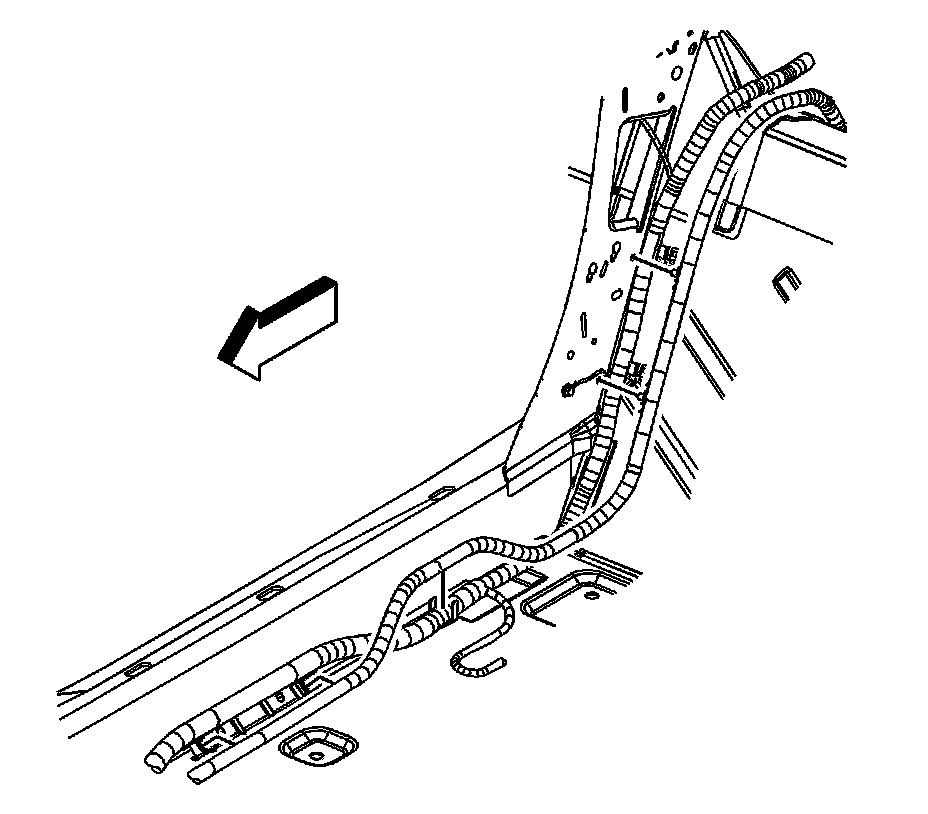

5. Lift up carpet to access the battery cables.




6. Remove the positive battery cable retainers.




7. Remove the positive battery cable grommet from the dash panel.
8. Pull the positive cable through the dash panel.
9. Remove the positive battery cable.

INSTALLATION PROCEDURE
1. Install the positive battery cable.




2. Push the positive cable grommet into place in the dash panel.




3. Install the positive battery cable to retainers.
4. Install the carpet.
5. Install the positive cable lead to the fuse/relay center stud.
6. Connect the negative battery cable.
7. Install the positive battery cable lead (2) to the fuse/relay center stud.
8. Install the positive battery cable nut to the fuse/relay center stud.

Tighten the positive battery cable nut to 10 N.m (89 lb in).

9. Close the stud cover on the fuse/relay center.
