Keyless Entry: Locations

Keyless Entry Component Views

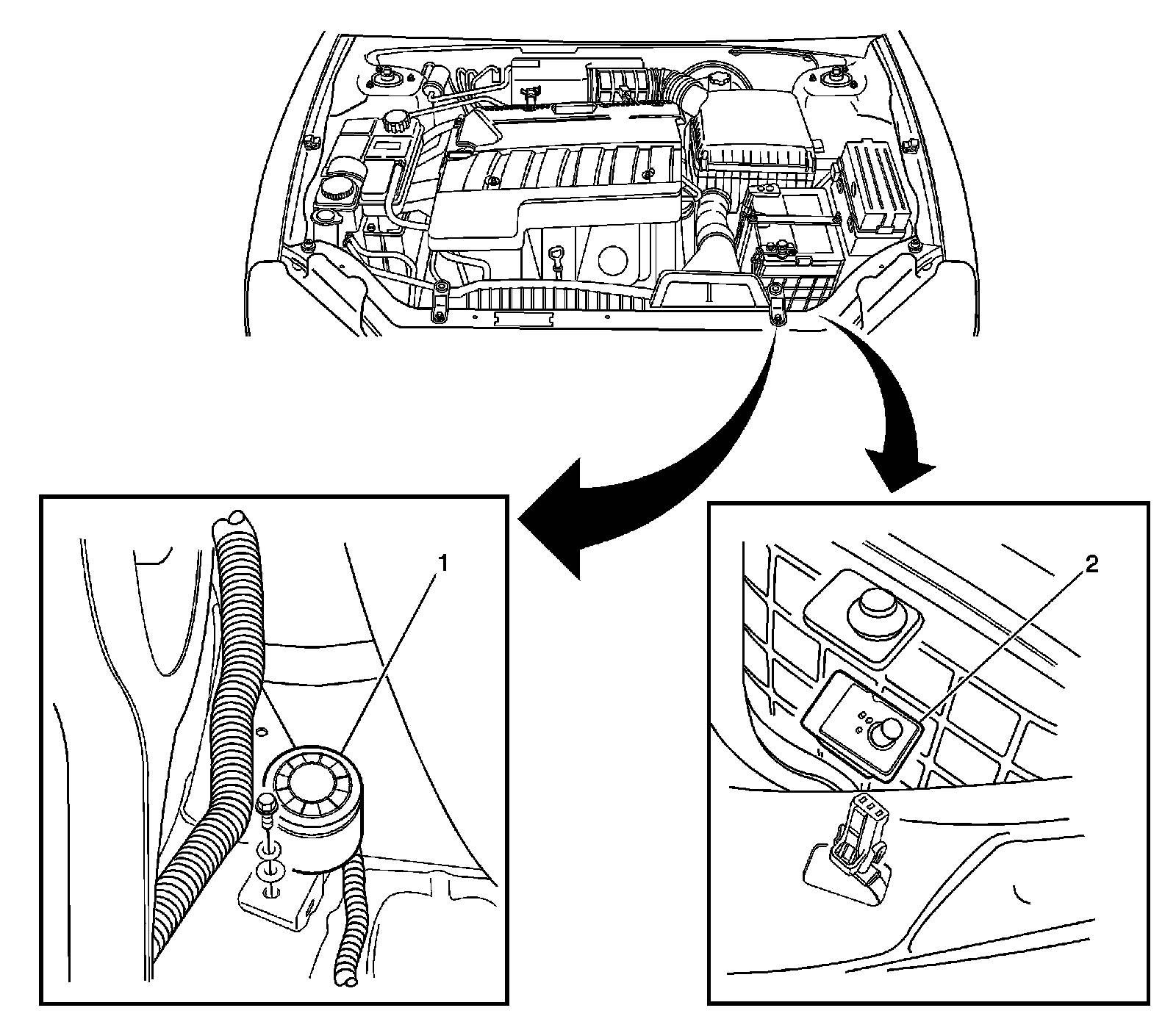

Theft Deterrent Alarm and Hood Ajar Switch

1 - Theft Deterrent Alarm
2 - Hood Ajar Switch

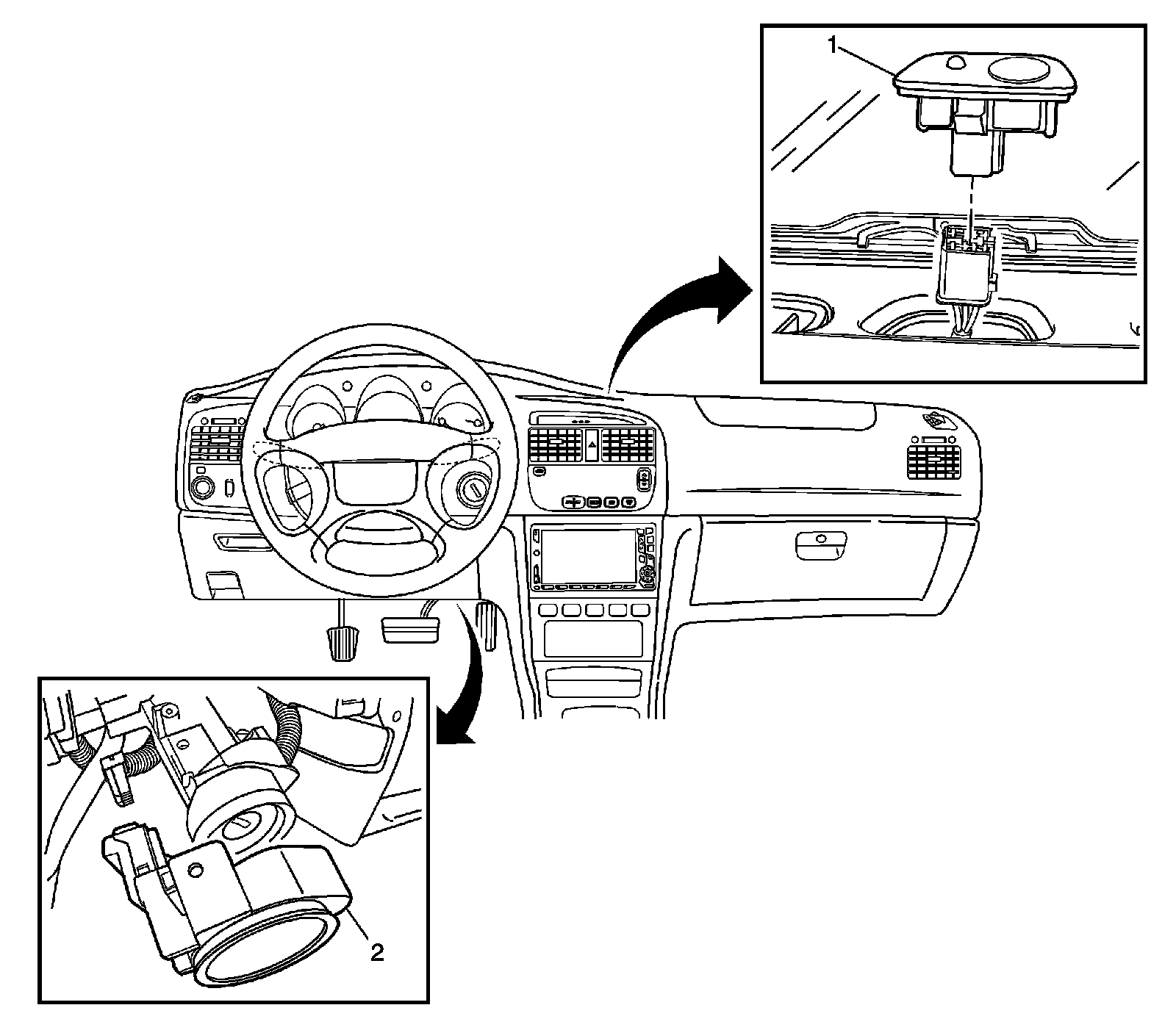

Theft Deterrent Control Module

1 - Security Indicator
2 - Theft Deterrent Control Module

Body Control Module (BCM), Defogger Switch and Eletrochonic Mirror

1 - Body Control Module (BCM)
2 - Defogger Switch
3 - Inside Rearview Mirror
4 - Cruise Control Switch
5 - Cruise Control Module
