Air Bag Systems

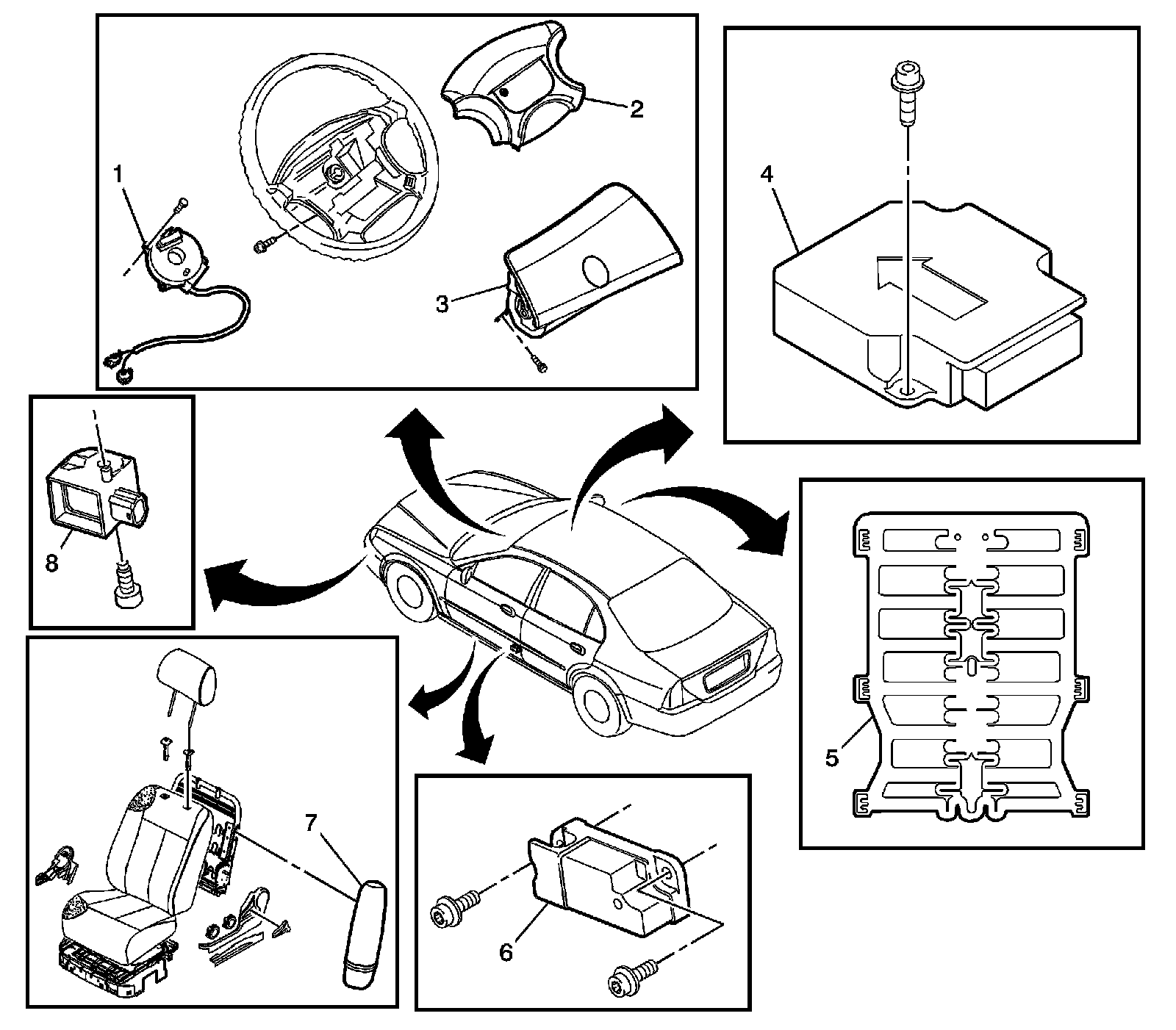

SIR Component Views




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Inflatable Restraint Steering Wheel Module
3 - Inflatable Restraint I/P Module
4 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
5 - Occupant Classification (OC) Sensor (North America)
6 - Inflatable Restraint Side Impact Sensor - Left Side Shown, Right Side Similar
7 - Inflatable Restraint Side Impact Sensor Module - Left Side Shown, Right Side Similar
7 - Inflatable Restraint Front End Discriminating Sensor - Left Side Shown, Right Side Similar (North America)
