Cooling System: Locations




Cooling System Component Views

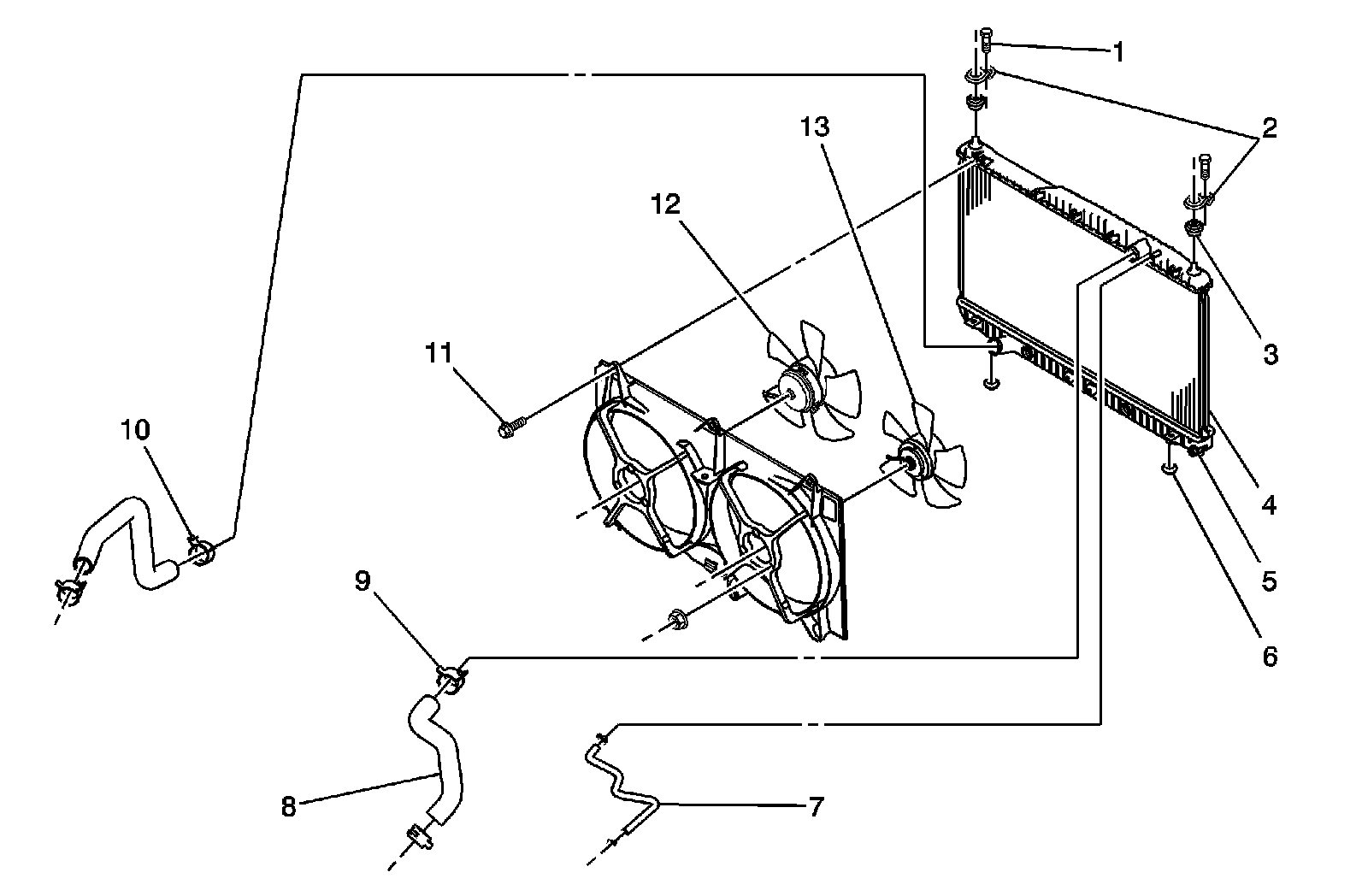

Radiator/Fan




1 - Radiator Retaining Bolts
2 - Radiator Bracket
3 - Upper Radiator Bumper
4 - Radiator
5 - Drain Plug
6 - Radiator Bumper
7 - Radiator Surge Tank Hose
8 - Upper Radiator Hose
9 - Spring Clamp
10 - Spring Clamp
11 - Fan Assembly Mounting Bolts
12 - Cooling Fan - Main
12 - Cooling Fan - Auxiliary

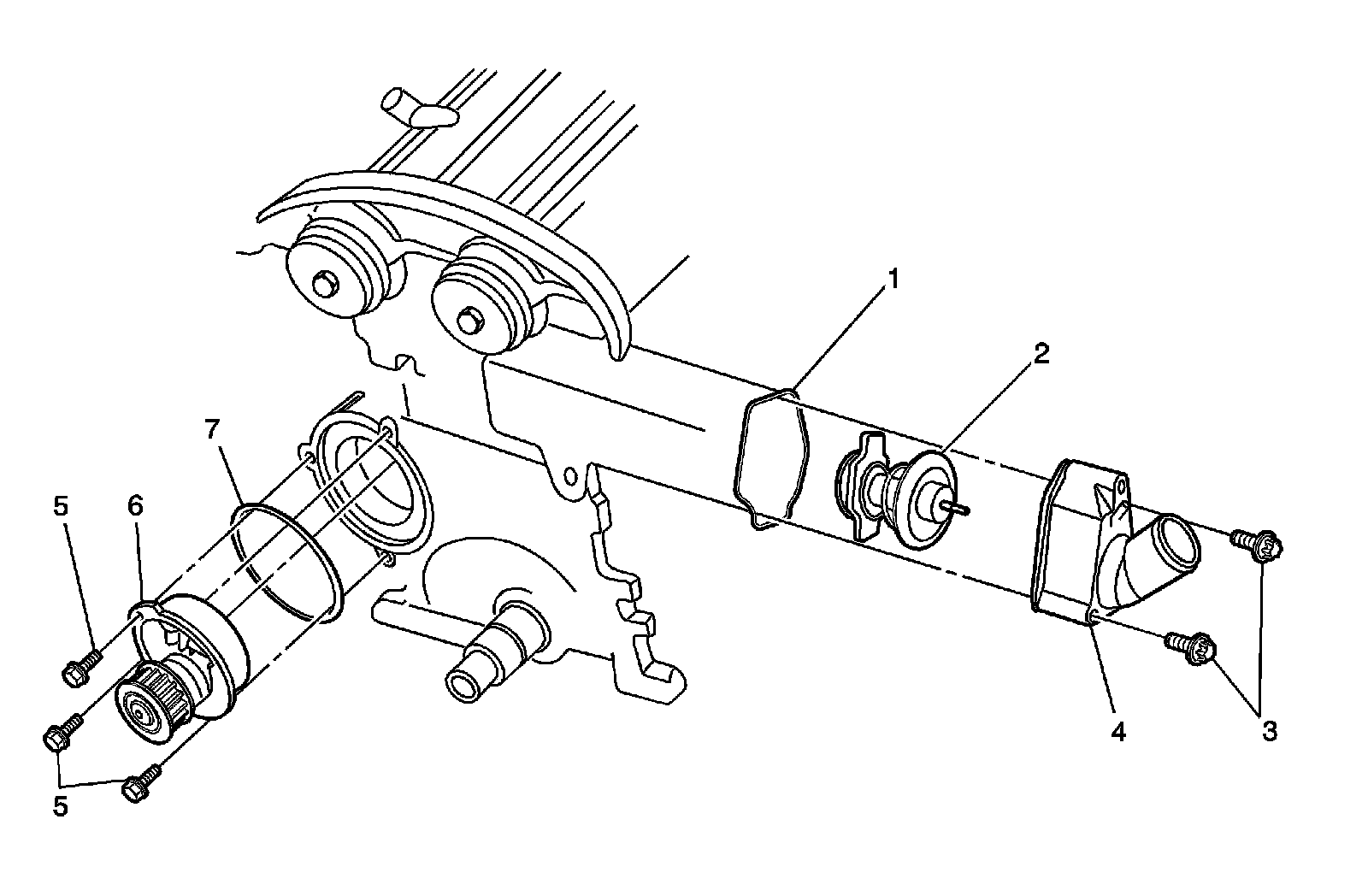

Coolant Pump/Thermostat - 2.0L




1 - O-Ring Seal
2 - Thermostat
3 - Thermostat Housing Mounting Bolt
4 - Thermostat Housing
5 - Coolant Pump Mounting Bolt
6 - Coolant Pump
7 - Ring Seal

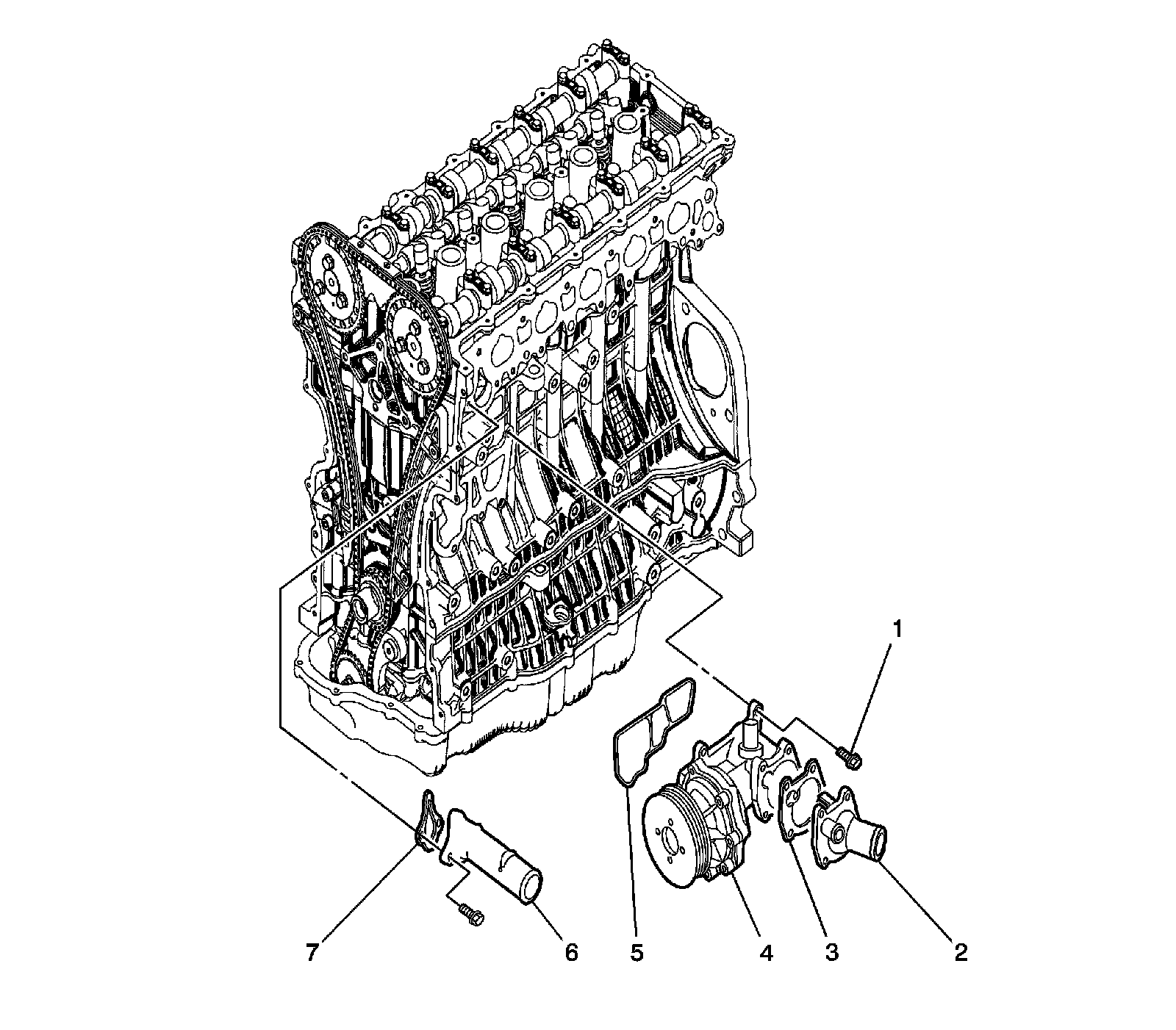

Coolant Pump/Thermostat - 2.5L




1 - Coolant Pump Mounting Bolt
2 - Thermostat
3 - Thermostat Seal Ring
4 - Coolant Pump
5 - Coolant Pump Rubber Seal
6 - Coolant Outlet Port
7 - Coolant Outlet Port Gasket
