Power Distribution Schematics




Power Distribution Schematics

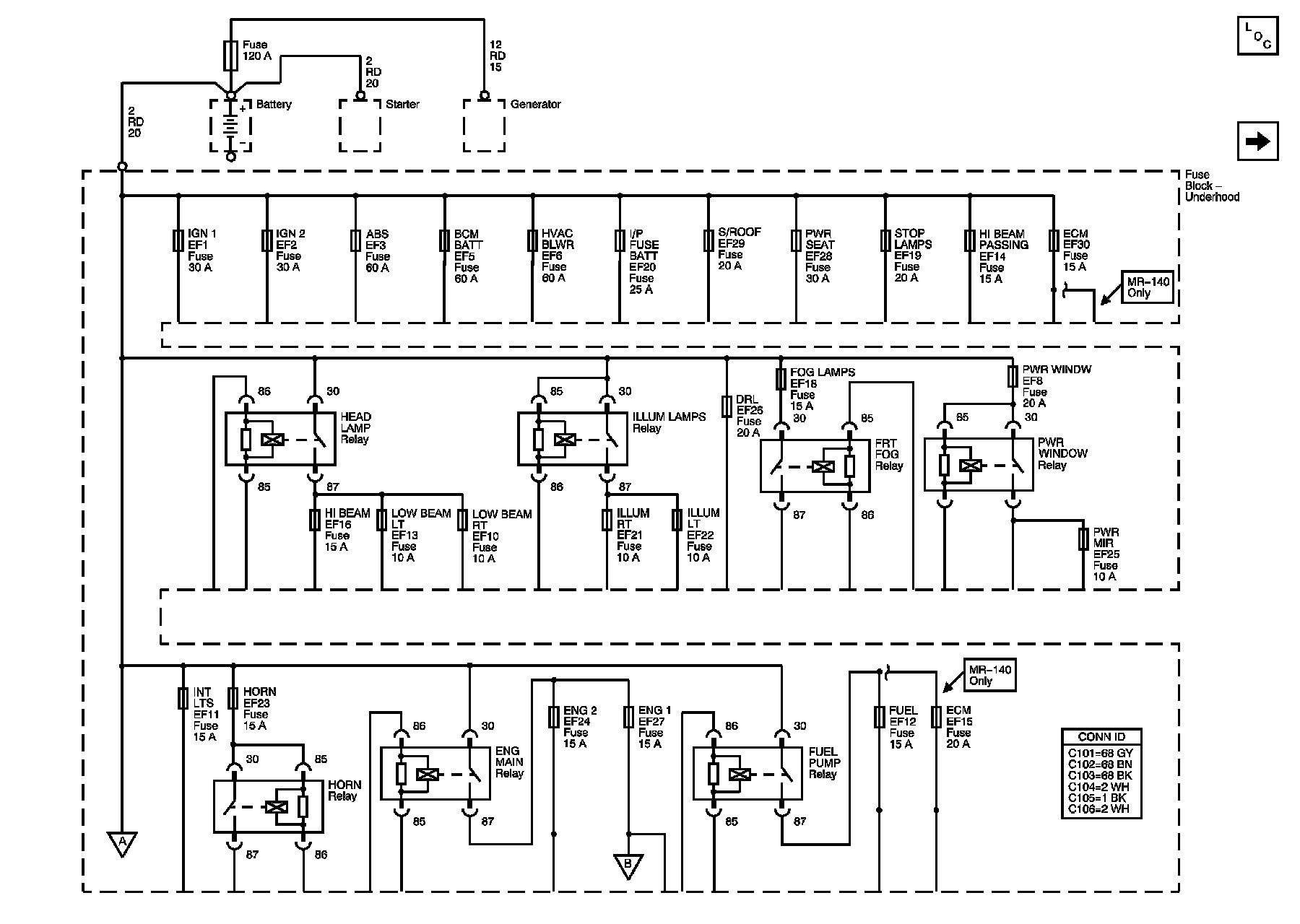

Underhood Fuse Block - Battery Feeds





Underhood Fuse Block - Battery Feeds

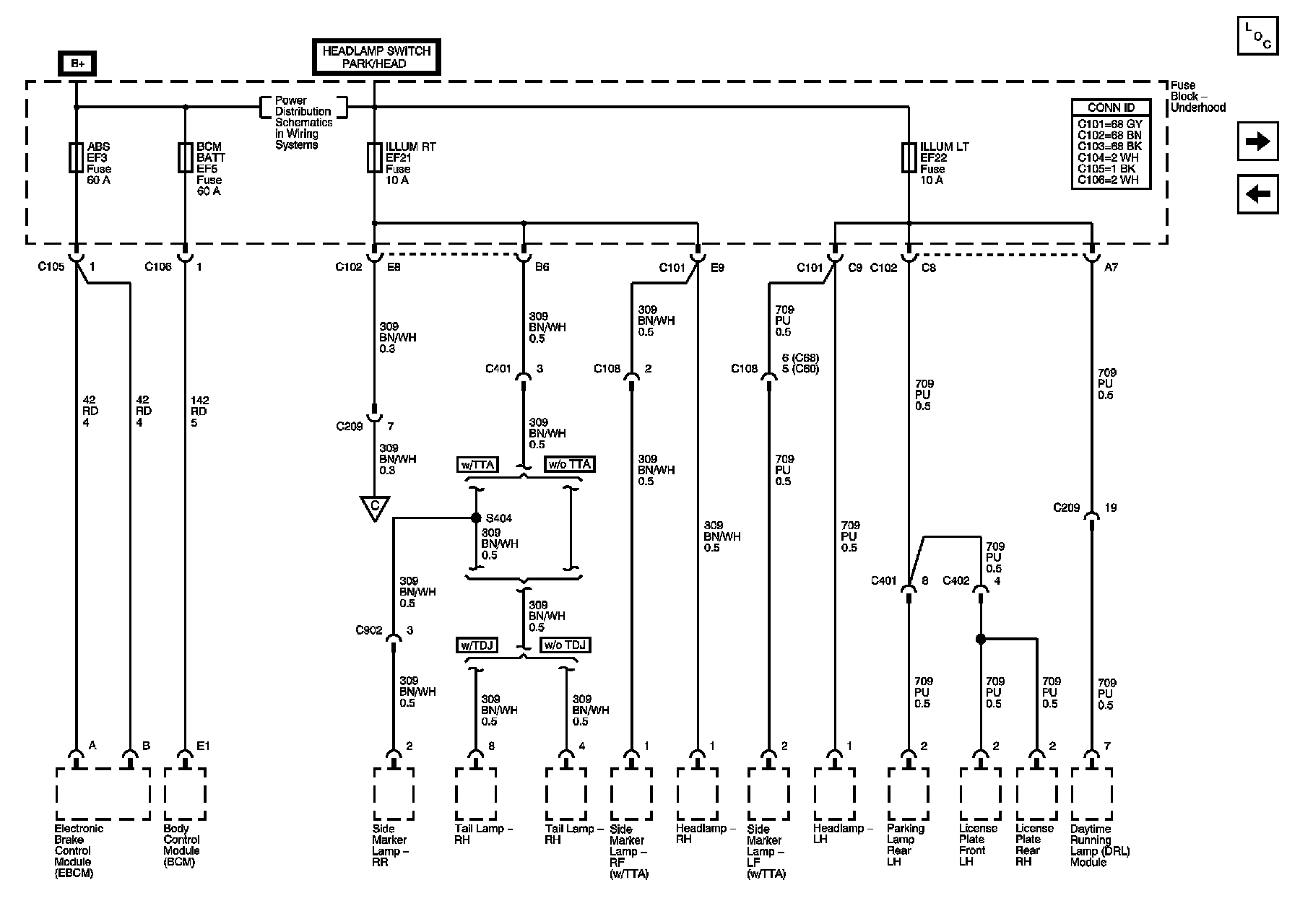

Underhood Fuse Block - ABS, BCM BATT, ILLUM RT, and ILLUM LT Fuses

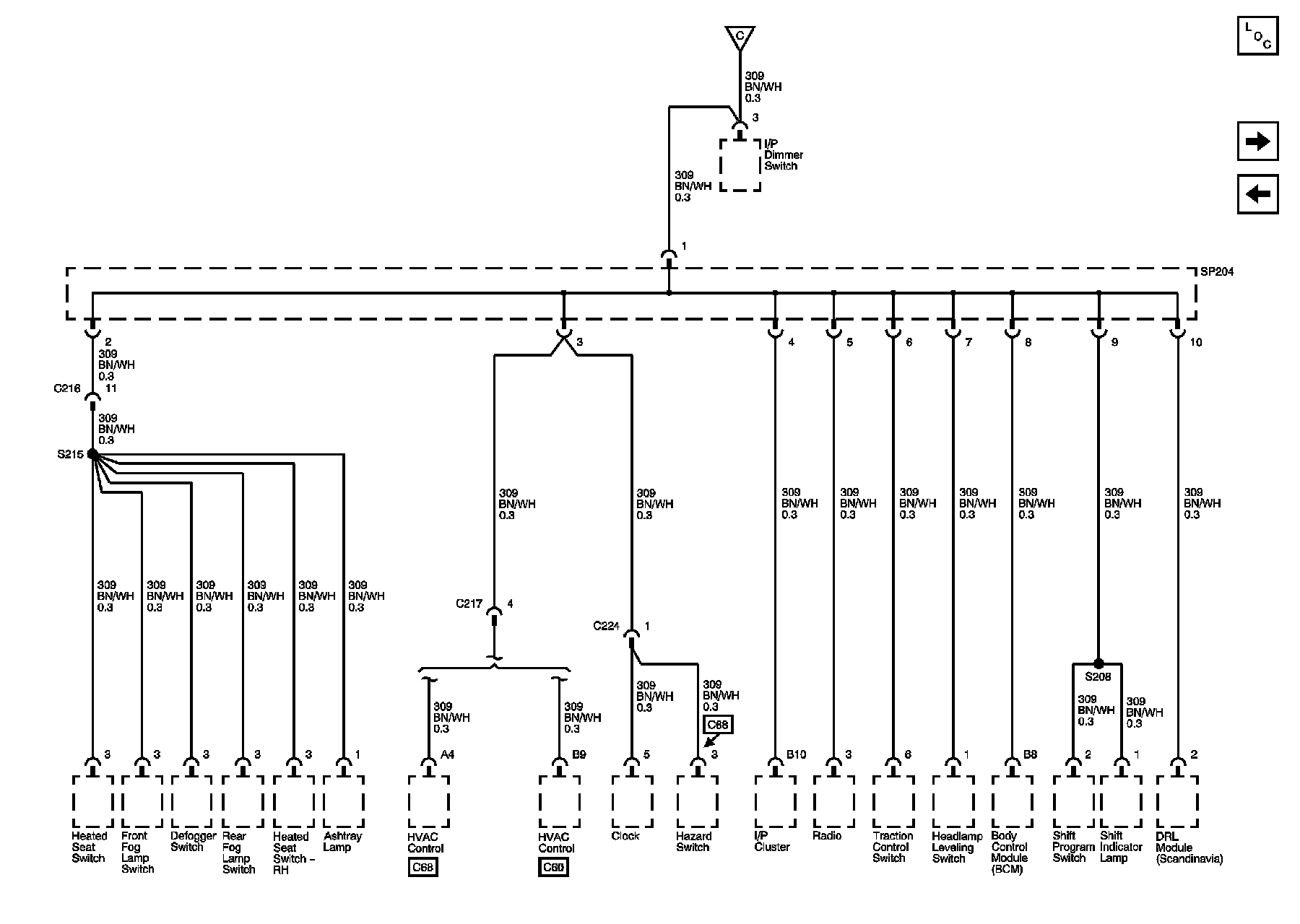

Underhood Fuse Block - ILLUM RT Fuse (continued)





Underhood Fuse Block - HVAC BLWR, S/ROOF, and PWR SEAT Fuses

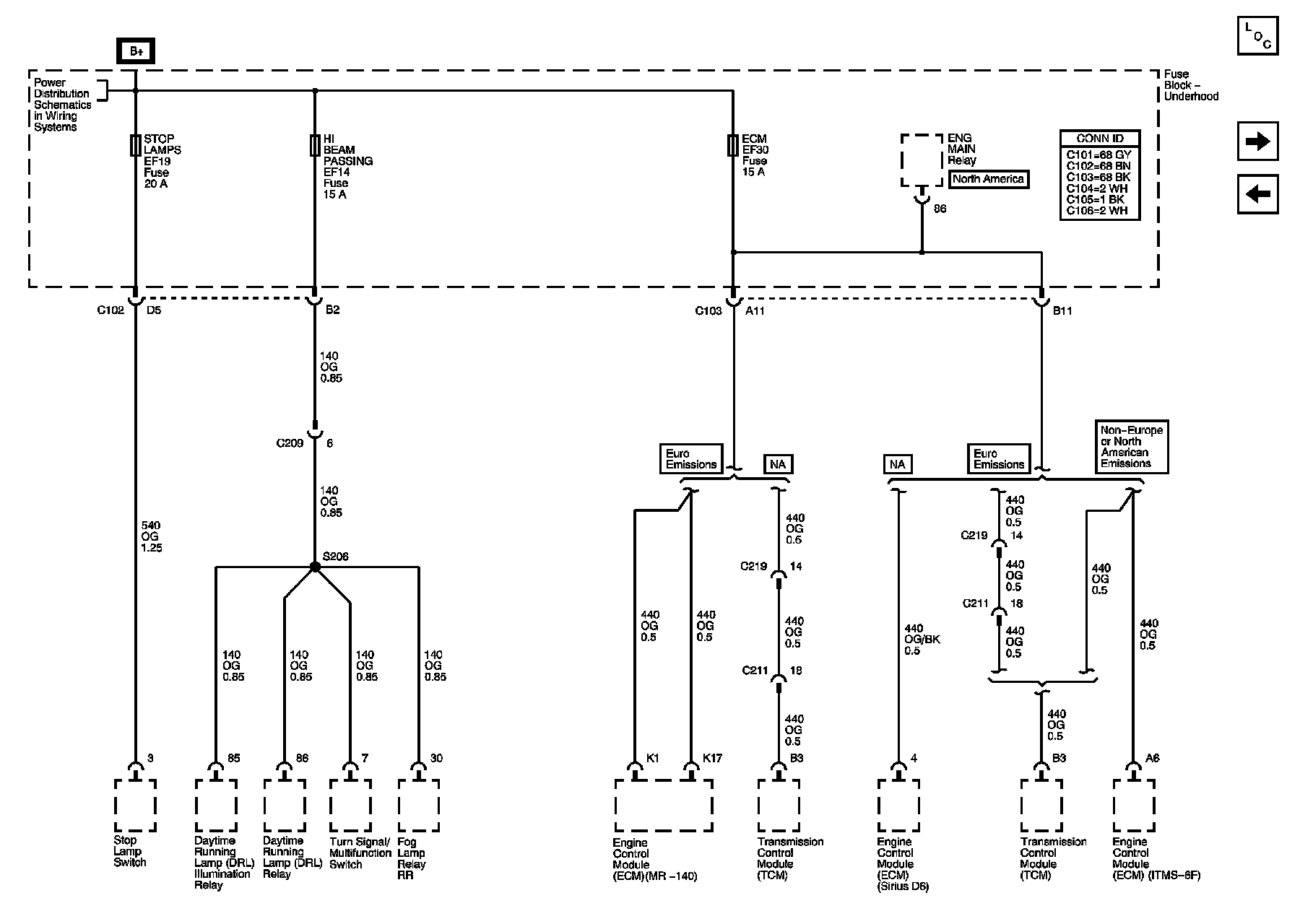

Underhood Fuse Block - STOP LAMPS, HI BEAM PASSING, and ECM Fuses

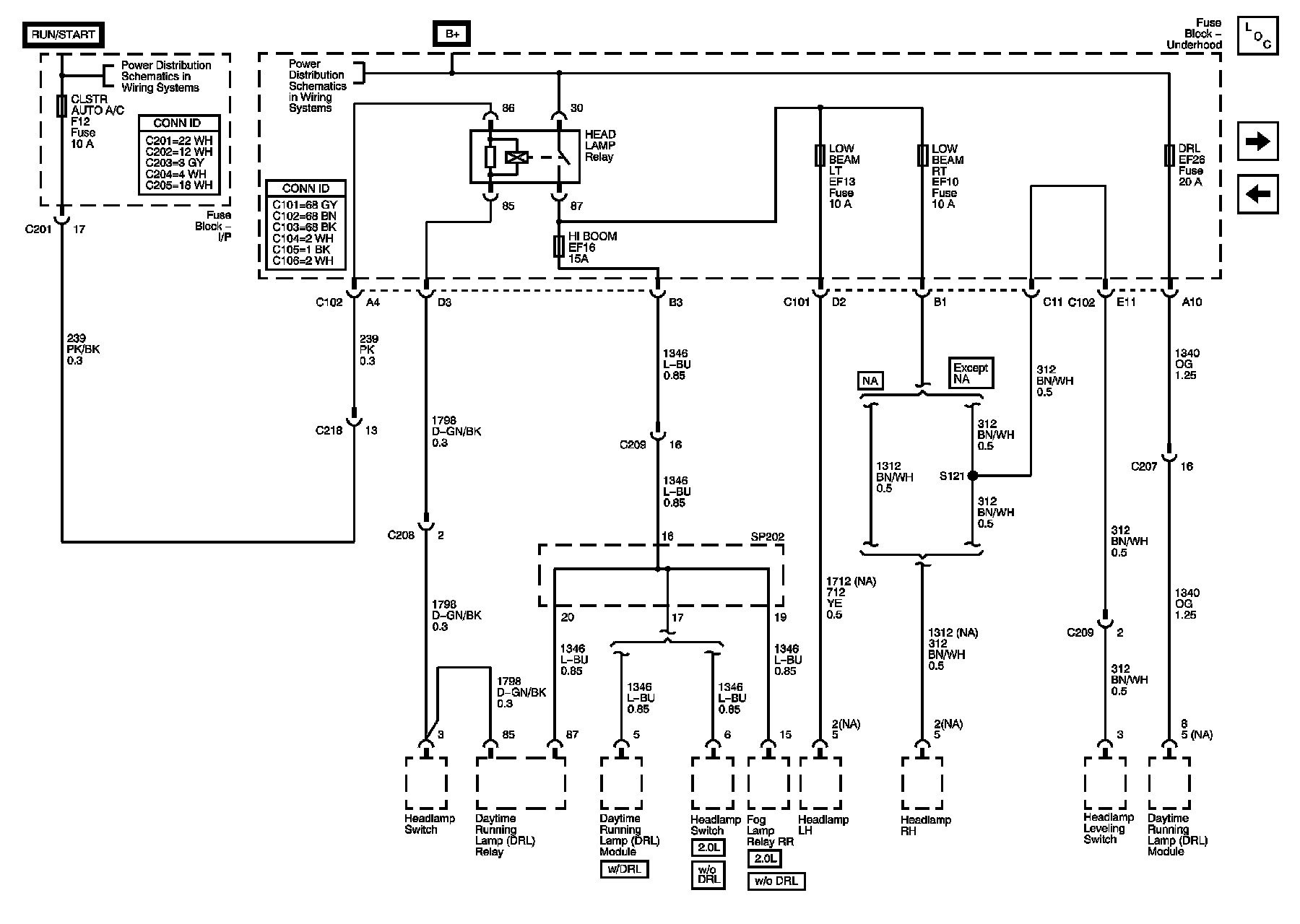

Underhood Fuse Block - HEADLAMP Relay and LOW BEAM LT, LOW BEAM RT, and DRL Fuses





Underhood Fuse Block - FOG LAMPS, PWR WNDW, PWR MIR, and HORN Fuses

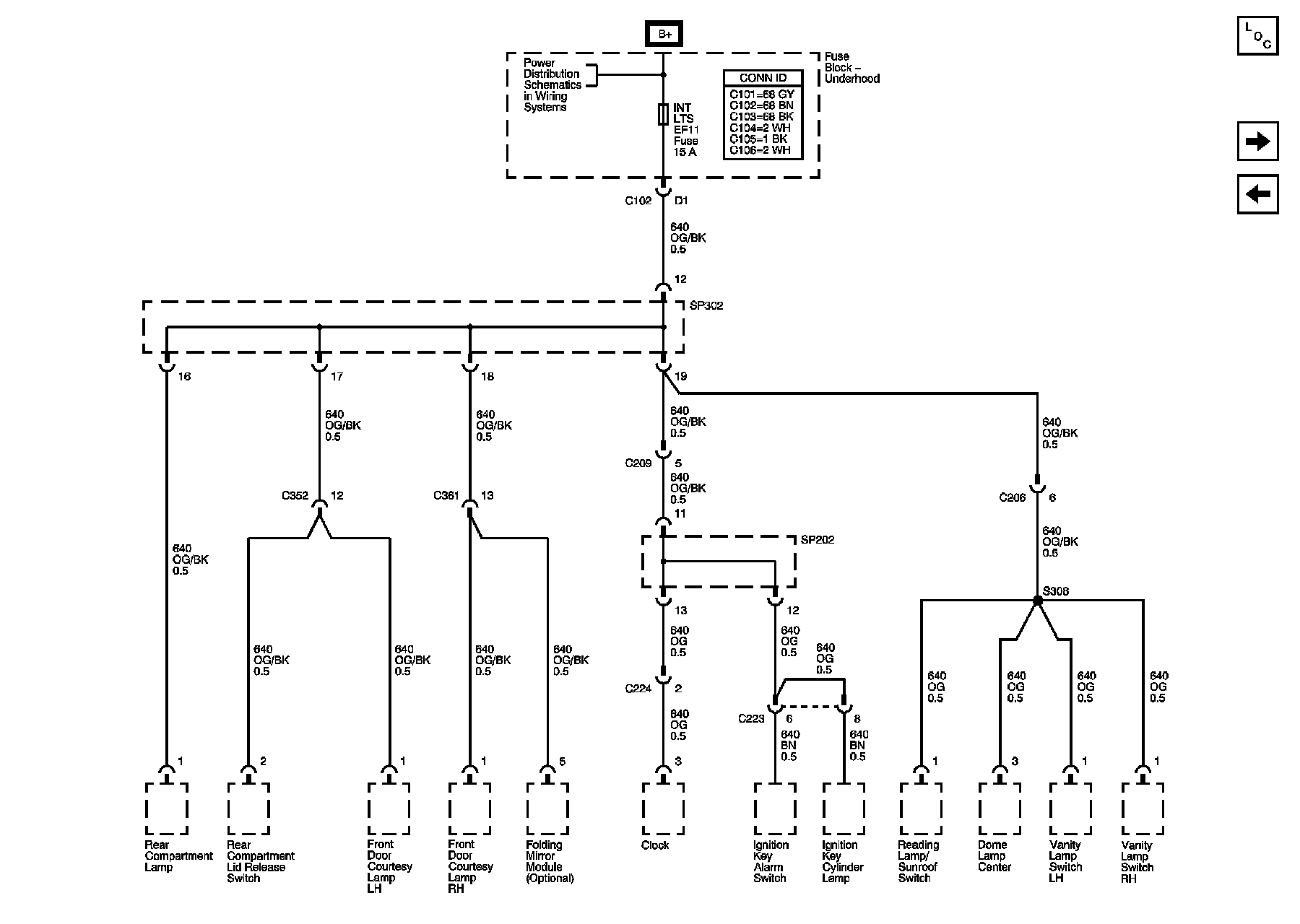

Underhood Fuse Block - INT LTS Fuse





Underhood Fuse Block (2.0L) - ENG MAIN Relay and ENG2 Fuse





Underhood Fuse Block (2.5L) - ENG MAIN Relay and ENG2 Fuse





Underhood Fuse Block - Fuel Pump Relay, FUEL and ECM Fuses





Underhood Fuse Block - ENG1, COOL FAN HIGH, and COOL FAN LOW Fuses





Underhood Fuse Block - A/C and IP Fuse, BATT, I/P Fuse Block - RADIO CRUISE, AUTO HVAC CLSTR, and DLC Fuses

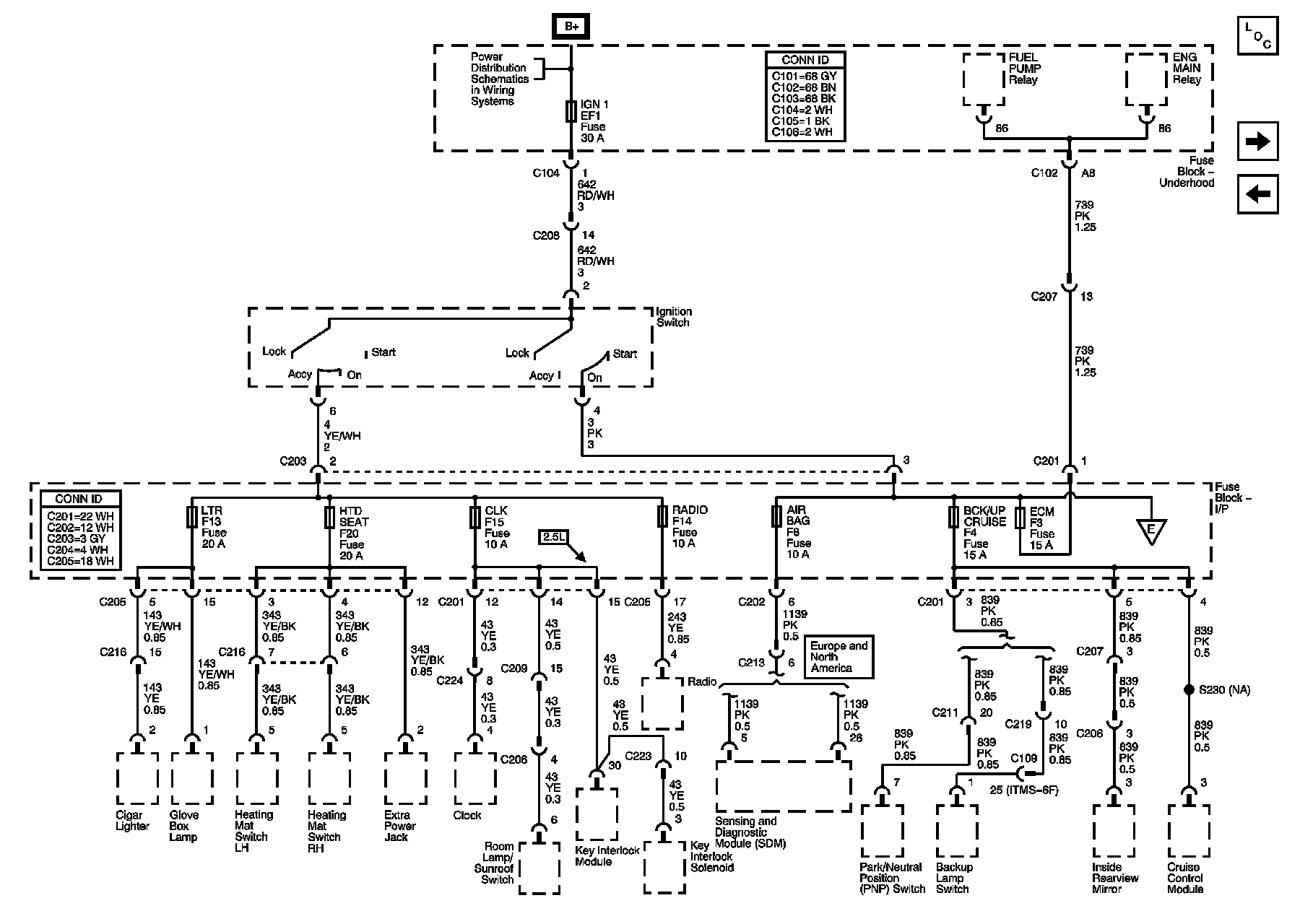

Underhood Fuse Block - IGN1 Fuse, Ignition Switch, I/P Fuse Block - LTR, HTD SEAT, CLK, RADIO, AIR BAG, BCK/UP CRUISE, and ECM Fuses

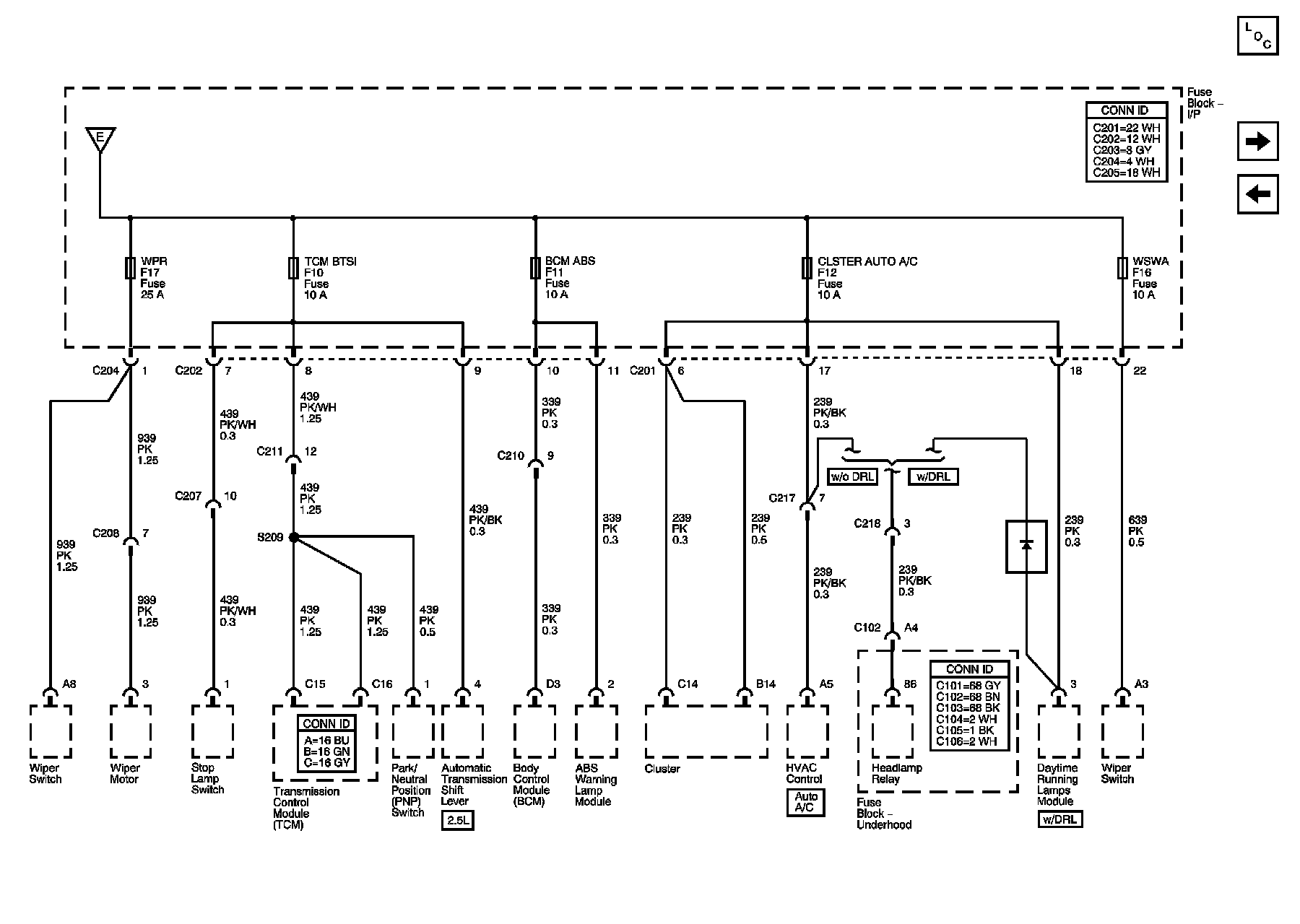

I/P Fuse Block - WPR, TCM BTSI, BCM ABS, CLSTR AUTO A/C, and WSWA Fuses

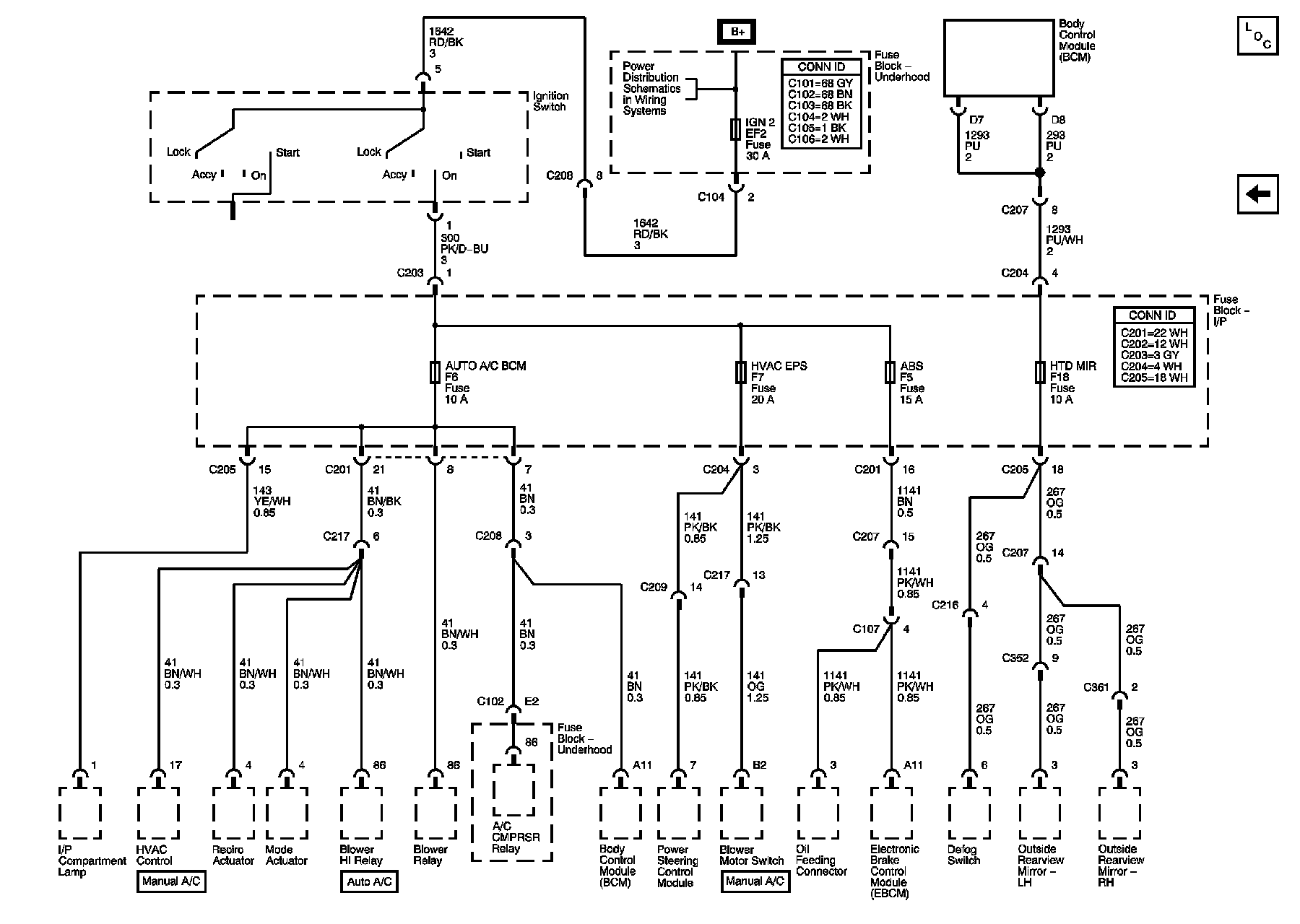

Underhood Fuse Block - IGN2 Fuse, Ignition Switch, I/P Fuse Block - AUTO A/C BCM, HVAC EPS, ABS and HTD MIR Fuses
