6. Bearing Plate Assembly Installation
Bearing Plate Assembly Installation Notice: Refer to Fastener Notice
Fastener Notice in Cautions and Notices.
1.

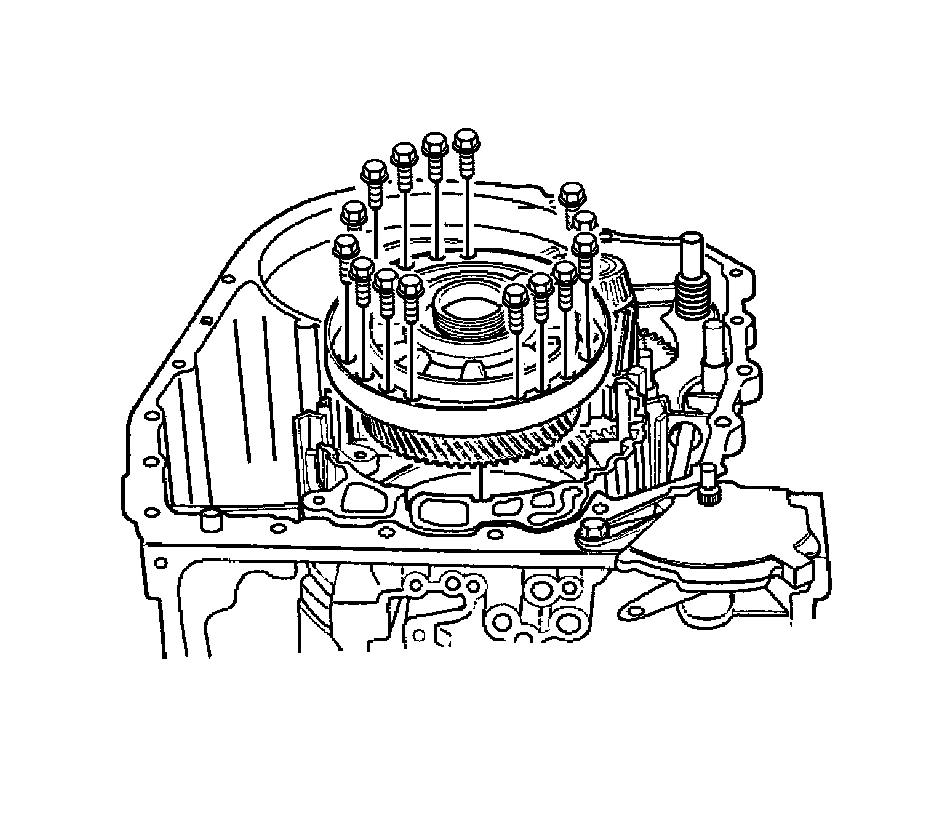

Install the bearing plate bolts and bearing plate.
Tighten the bearing plate bolts to 27 Nm (17 lb in). 2.
Install the piston F. Refer to Brake F, Slotted Nut Installation
14. Brake F, Slotted Nut Installation.
