Part 2

Thread Repair Specifications

Generator Bracket:

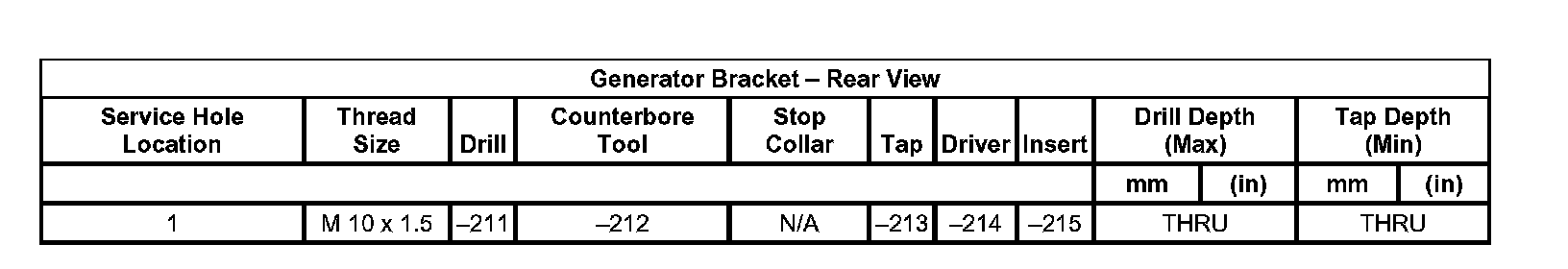

Generator Bracket - Rear View:

Generator Bracket:

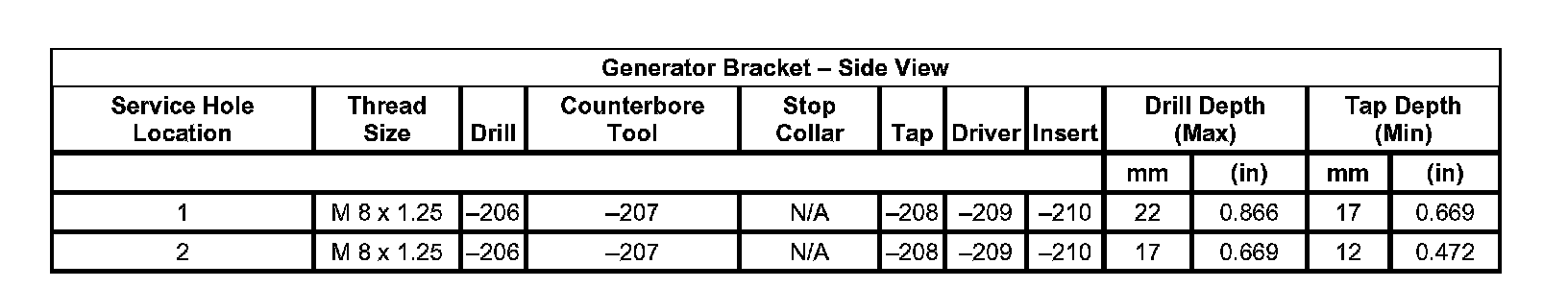

Generator Bracket - Side View:

Engine Front Cover:

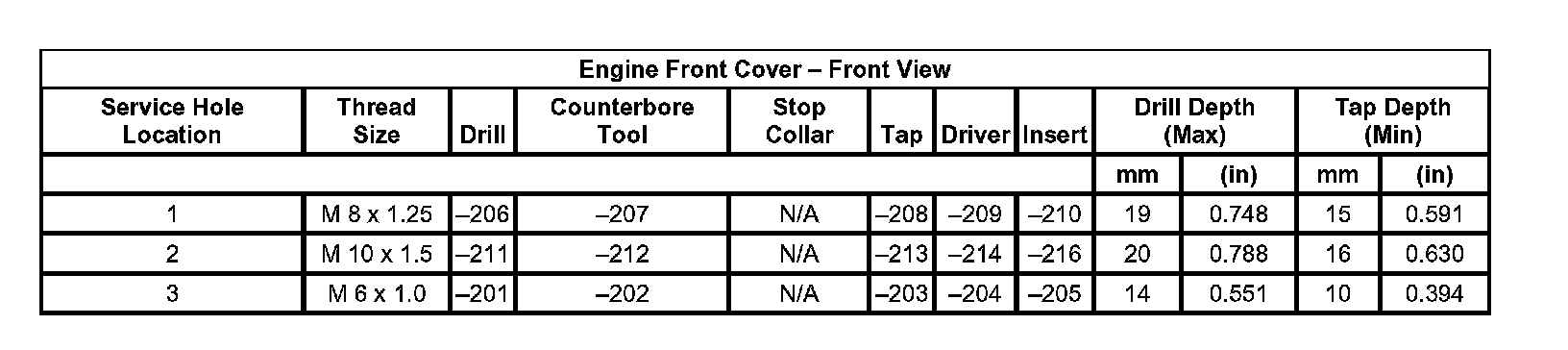

Engine Front Cover - Front View:

Engine Front Cover:

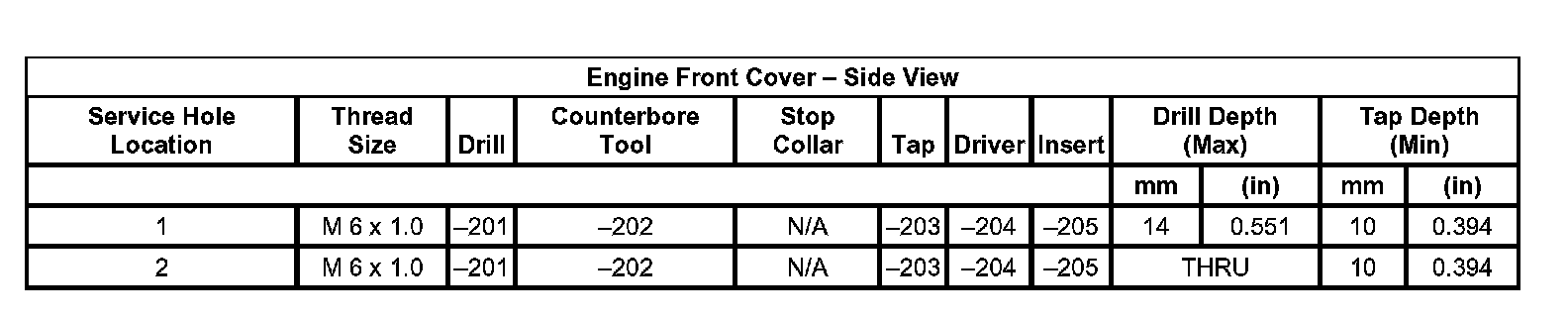

Engine Front Cover - Side View:

Engine Front Cover:

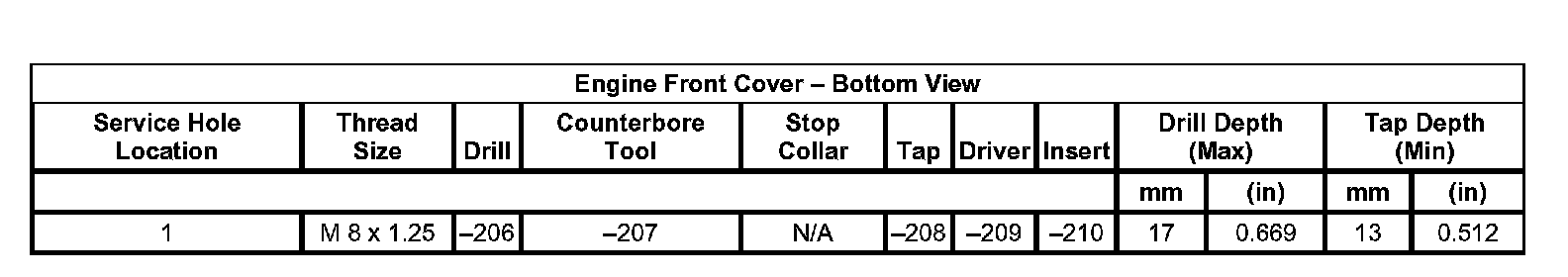

Engine Front Cover - Bottom View:

Lower Rocker Arm Cover:

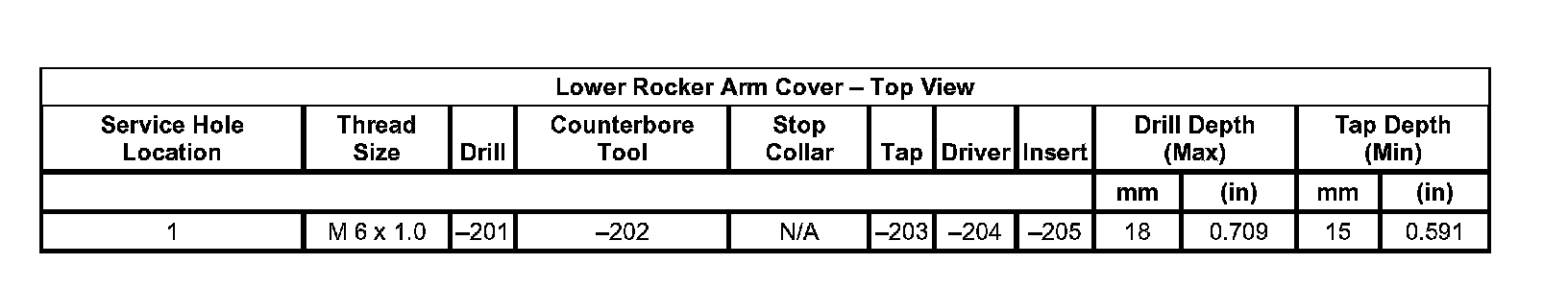

Lower Rocker Arm Cover - Top View:

Lower Rocker Arm Cover:

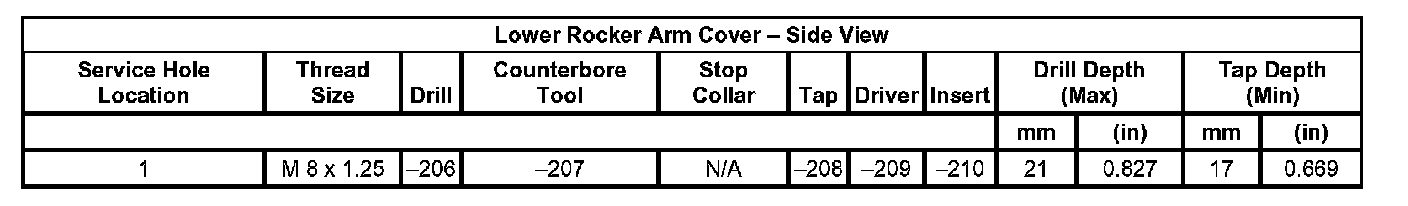

Lower Rocker Arm Cover - Side View:

Upper Rocker Arm Cover:

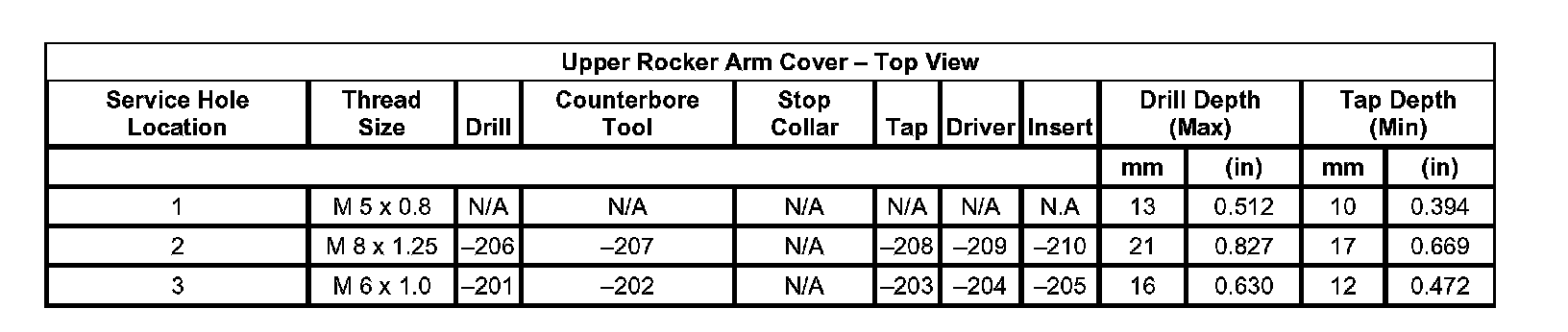

Upper Rocker Arm Cover - Top View:

Upper Rocker Arm Cover:

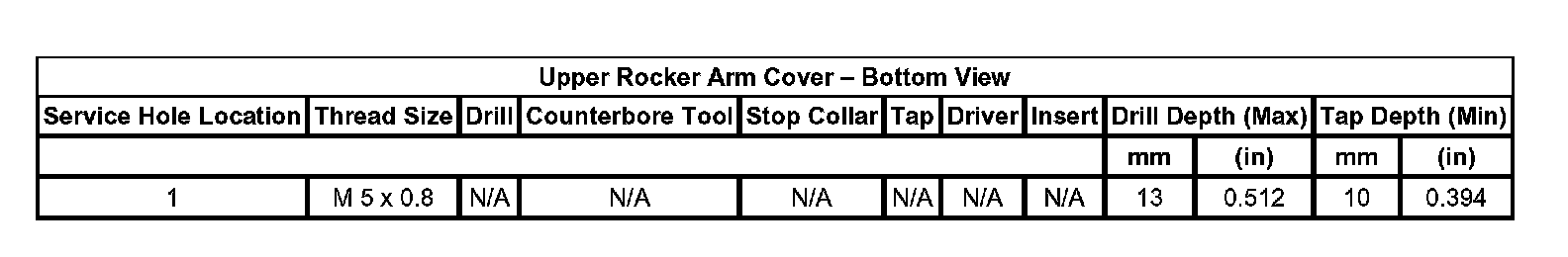

Upper Rocker Arm Cover - Bottom View:

Flywheel Housing:

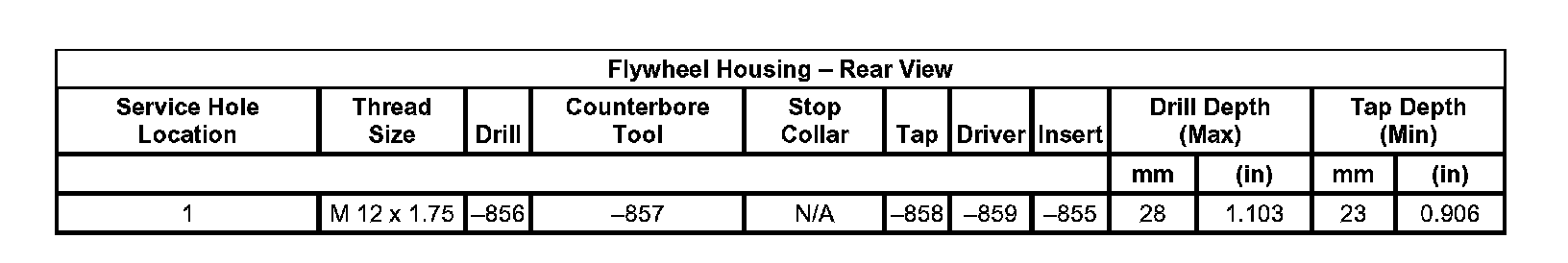

Flywheel Housing - Rear View:

Flywheel Housing:

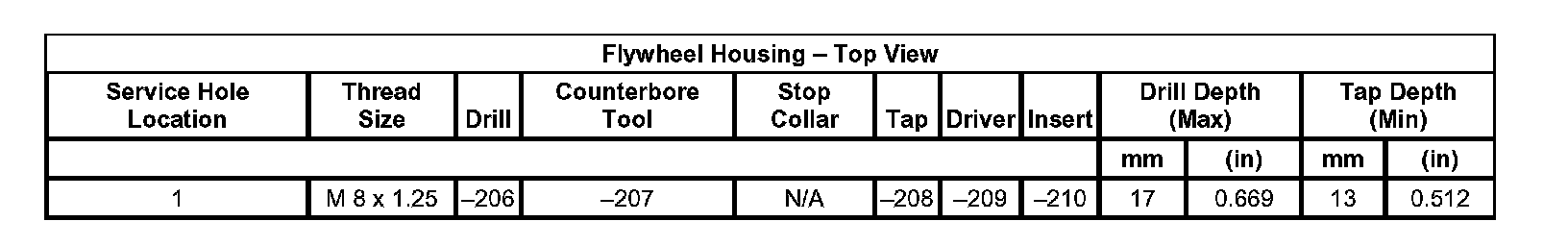

Flywheel Housing - Top View:

Flywheel Housing:

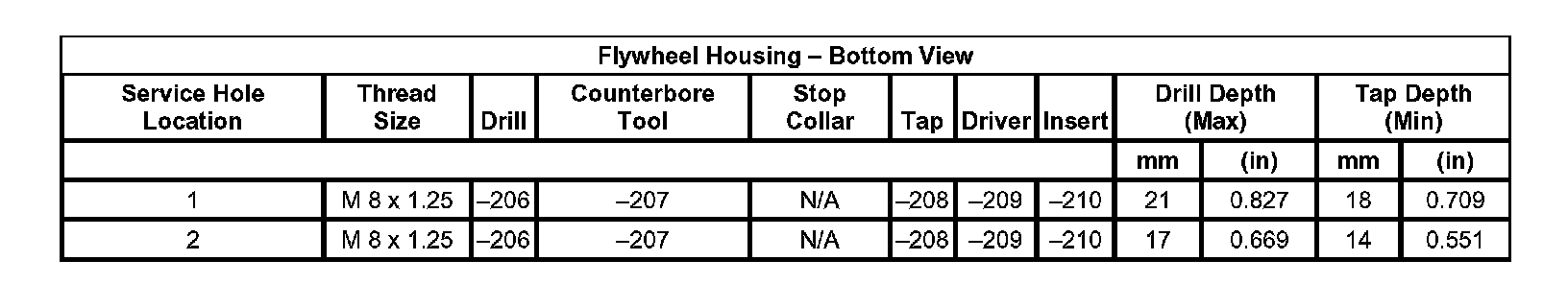

Flywheel Housing - Bottom View:

Flywheel Housing:

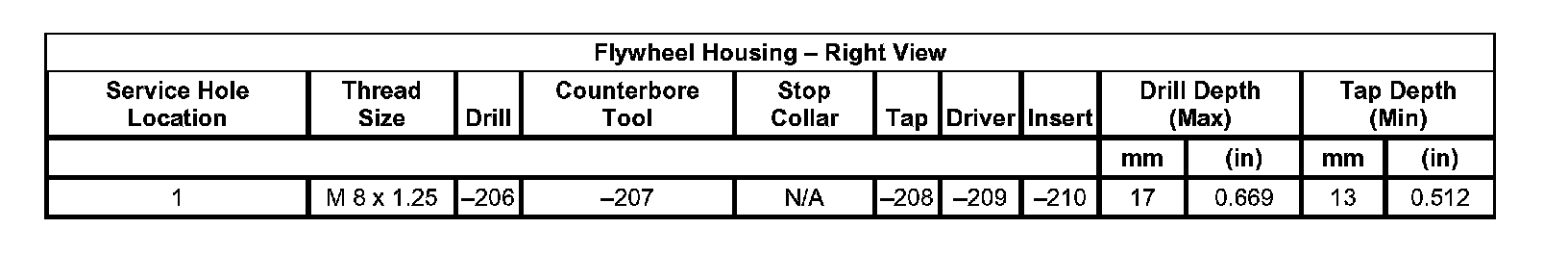

Flywheel Housing - Right View:

Flywheel Housing:

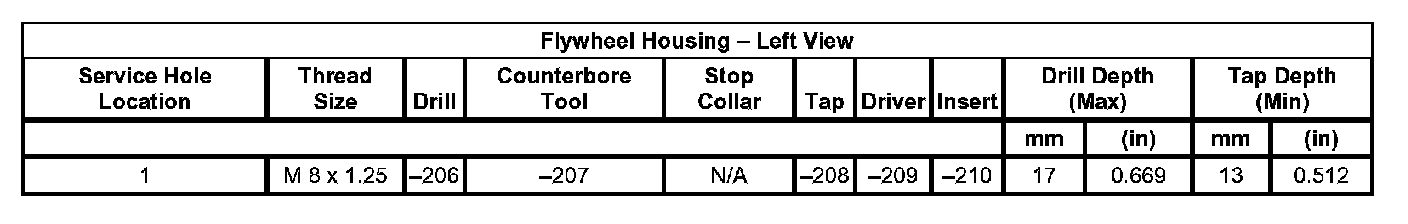

Flywheel Housing - Left View:

Upper Oil Pan:

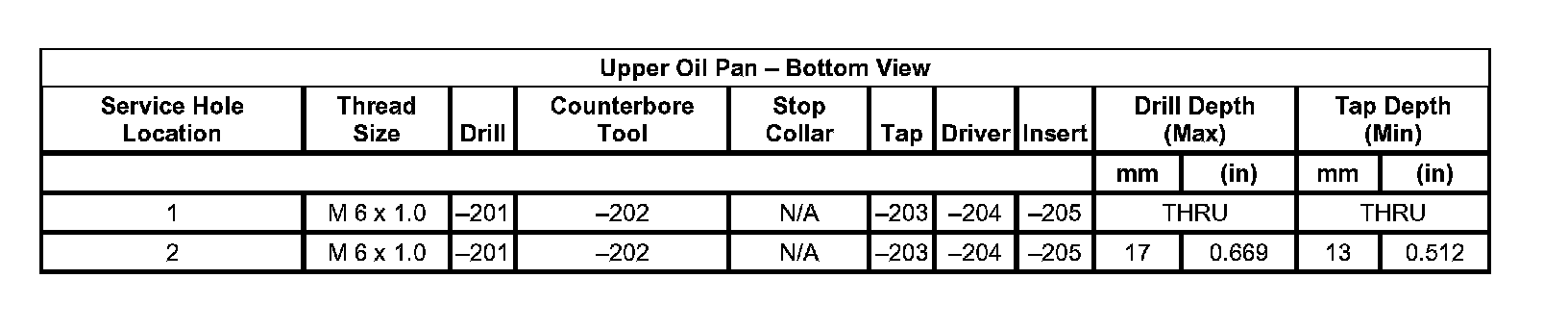

Upper Oil Pan - Bottom View:

Upper Oil Pan:

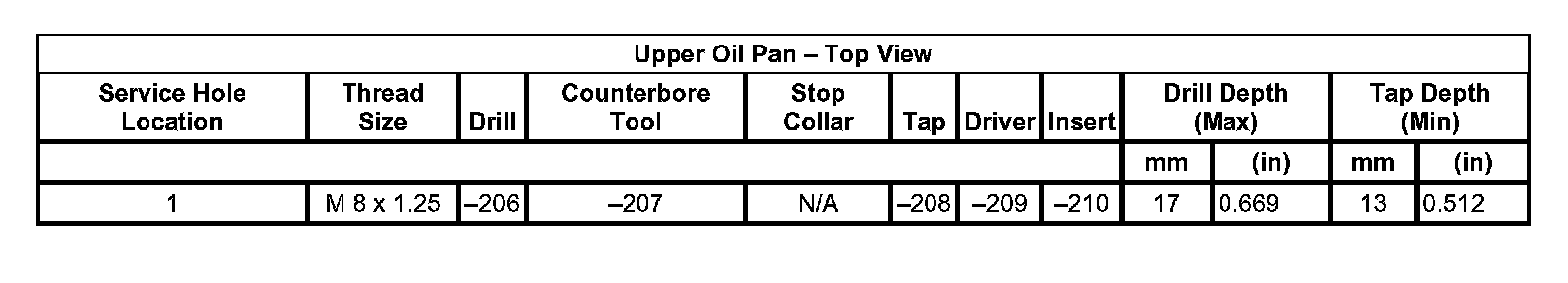

Upper Oil Pan - Top View:

Upper Oil Pan:

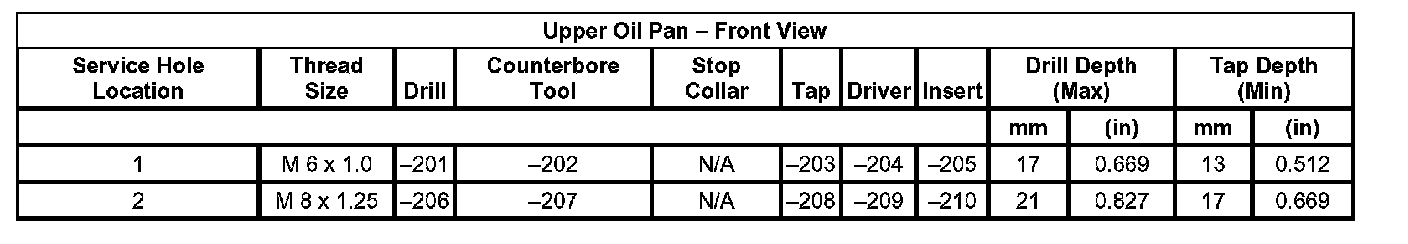

Upper Oil Pan - Front View:

Upper Oil Pan:

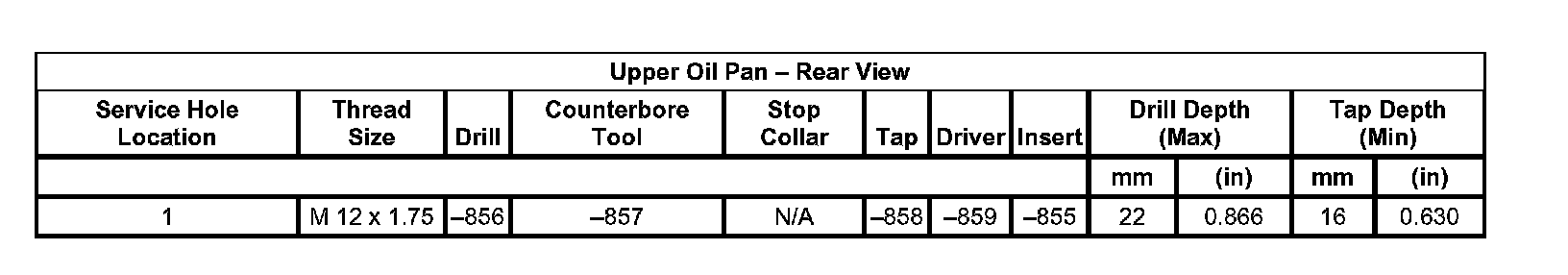

Upper Oil Pan - Rear View:

Upper Oil Pan:

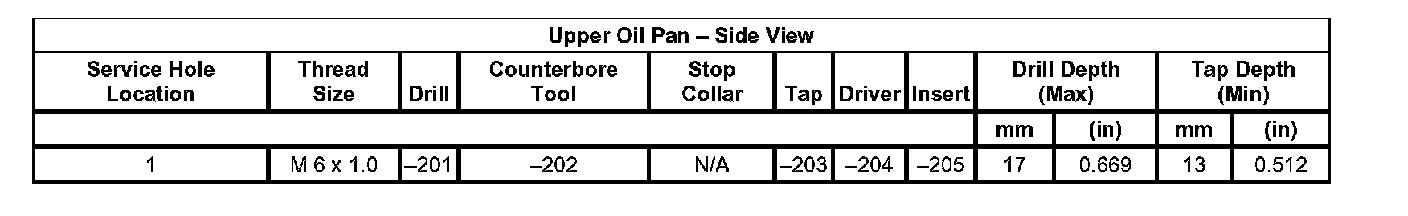

Upper Oil Pan - Side View:
