Heater Hose Replacement - Outlet

HEATER HOSE REPLACEMENT - OUTLET

TOOLS REQUIRED
J 38185 Hose Clamp Pliers

REMOVAL PROCEDURE
1. Drain the coolant. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47716 Fill).
2. Remove the surge tank from the surge tank bracket.

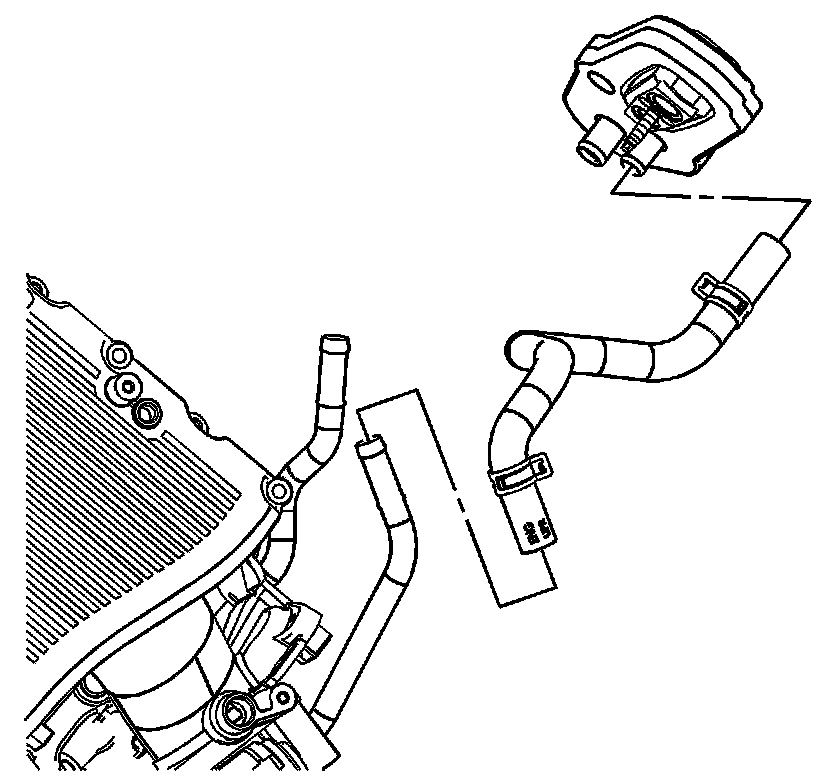

3. Reposition the heater outlet hose clamp at the heater core using the J 38185.
4. Reposition the heater outlet hose clamp at the engine using the J 38185.




5. Remove the heater outlet hose from the heater core.
6. Remove the heater outlet hose from the engine.
7. Remove both heater outlet hose clamps from the heater outlet hose.

INSTALLATION PROCEDURE
1. Install both heater outlet hose clamps to the heater outlet hose.




2. Install the heater outlet hose to the engine.
3. Install the heater outlet hose to the heater core.
4. Reposition the heater outlet hose clamp at the engine using the J 38185.
5. Reposition the heater outlet hose clamp at the heater core using the J 38185.
6. Install the surge tank to the surge tank bracket.
7. Fill the coolant. Refer to Draining and Filling Cooling System (Static Fill) Draining and Filling Cooling System (GE 47716 Fill).
