Access Cover: Service and Repair

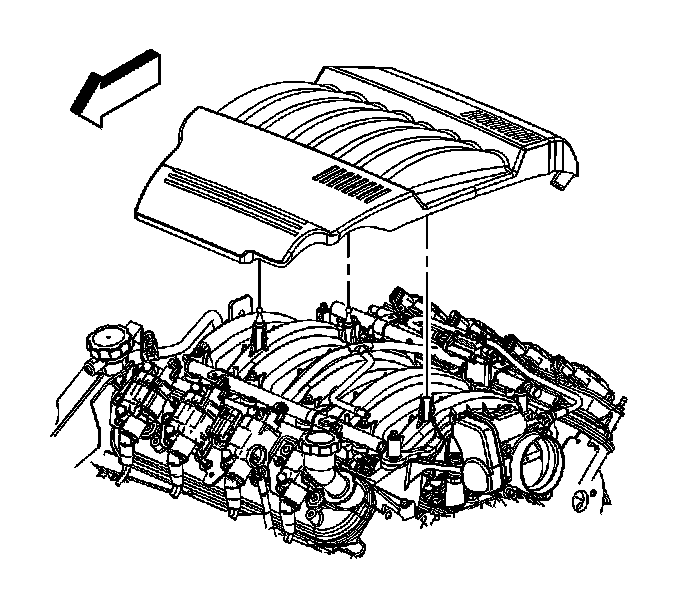

Engine Sight Shield Replacement Removal Procedure 1.
Pull up on the front and rear of the sight shield in order to disengage sight shield from the studs.
2.
Remove the engine sight shield from the vehicle.
Installation Procedure 1.
Align the sight shield to the studs on the
intake manifold.
2.
Push down in the 3 locations in order to secure the sight shield to the studs.
