Drive Belt: Service and Repair



Drive Belt Replacement - Accessory

Tools Required
^ EN-47988 Serpentine Belt Tension Unloader

Removal Procedure

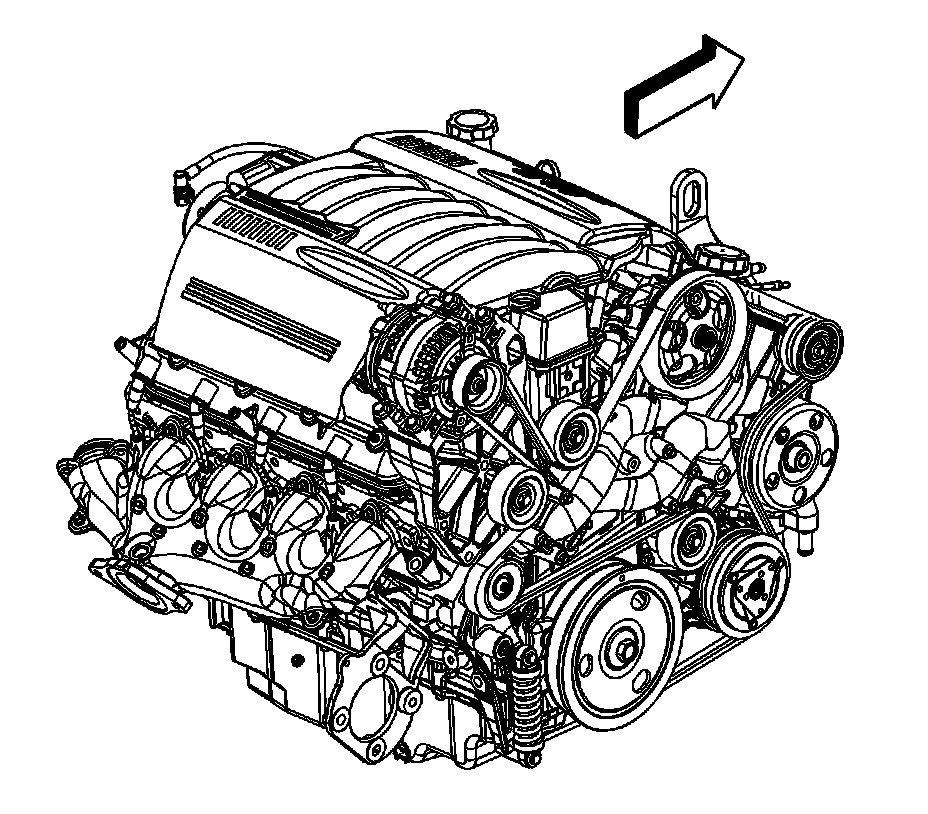

1. Using the EN-47988, rotate the drive belt tensioner clockwise in order to relieve tension on the drive belt.
2. Remove the drive belt from the drive belt tensioner and pulleys.
3. Slowly release the tension on the drive belt tensioner.
4. Clean and inspect the belt surfaces of the pulleys.

Installation Procedure





1. Route the drive belt around all the pulleys except the idler pulley.
2. Using the EN-47988, rotate the drive belt tensioner clockwise in order to relieve the tension on the drive belt tensioner.
3. Install the drive belt under the idler pulley.
4. Slowly release the tension on the belt tensioner.
5. Inspect the drive belt for proper installation and alignment.
