Marker Lamp



Marker Lamp - LR (Coupe):




Marker Lamp - RR (Coupe):




Marker Lamp - LF:




Marker Lamp - RF:

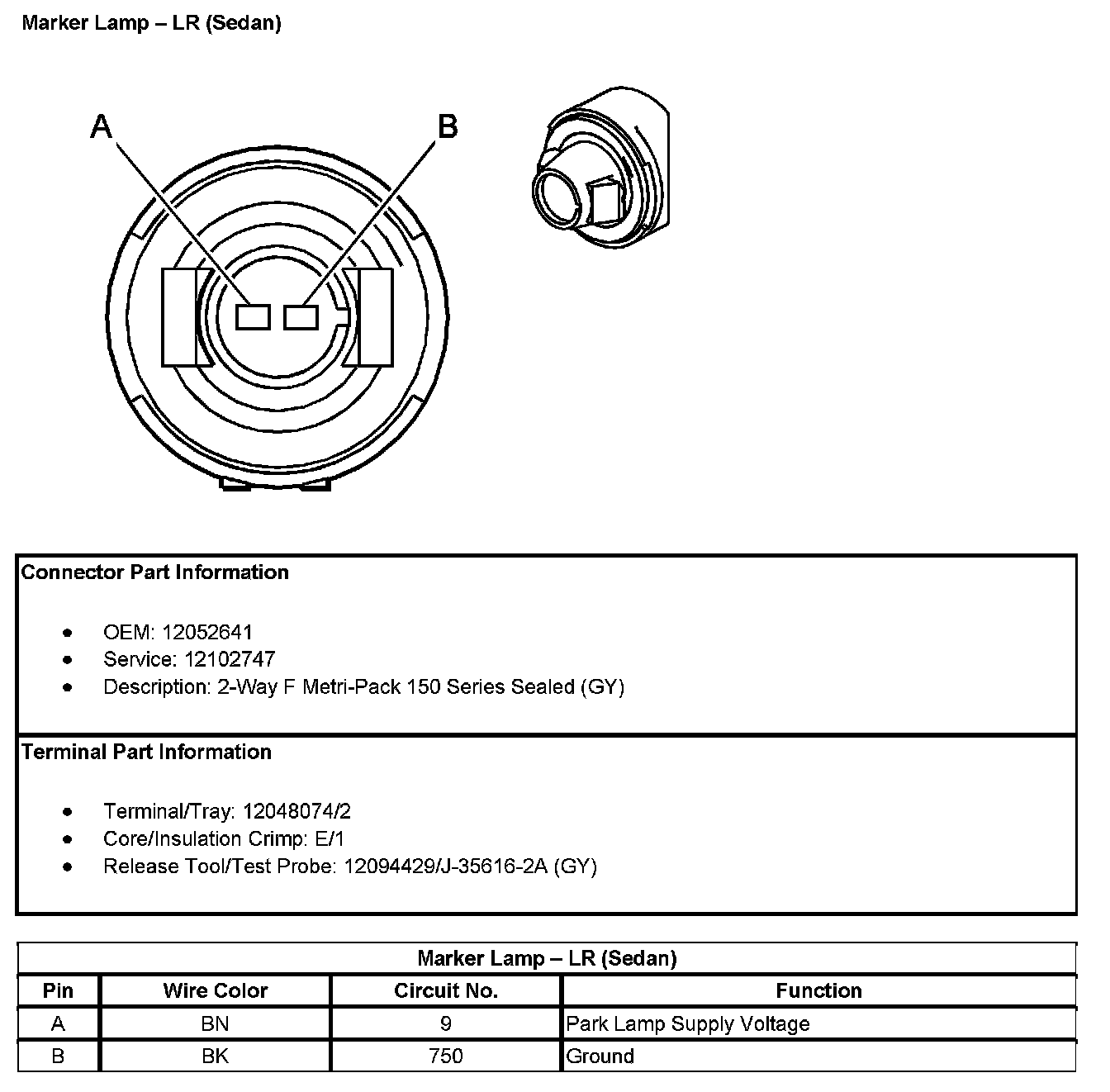

Marker Lamp - LR (Sedan):




Marker Lamp - RR (Sedan):
