Fuel Injector

Engine Controls Connector End Views

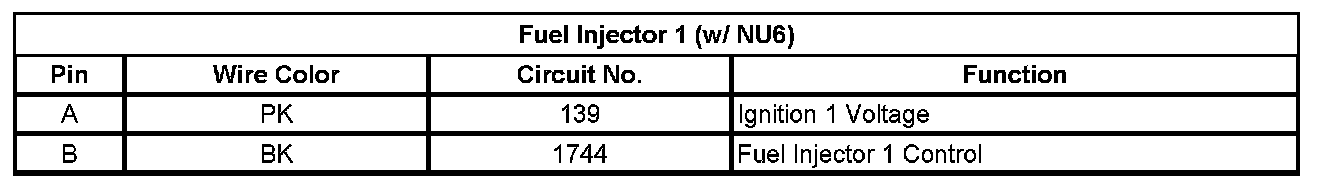

Fuel Injector 1 (w/ NU6)

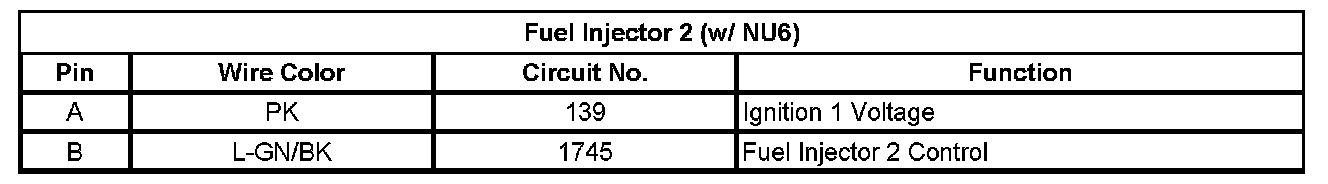

Fuel Injector 2 (w/ NU6)

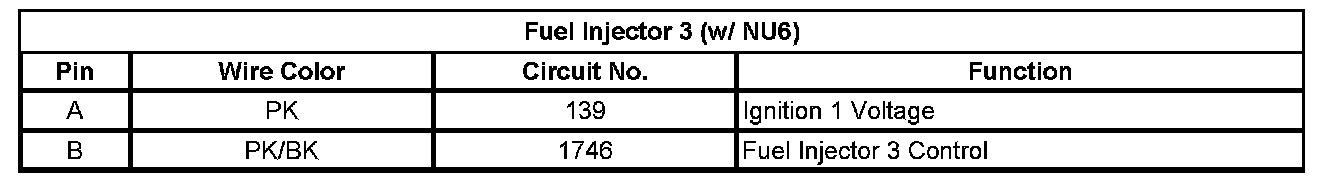

Fuel Injector 3 (w/ NU6)

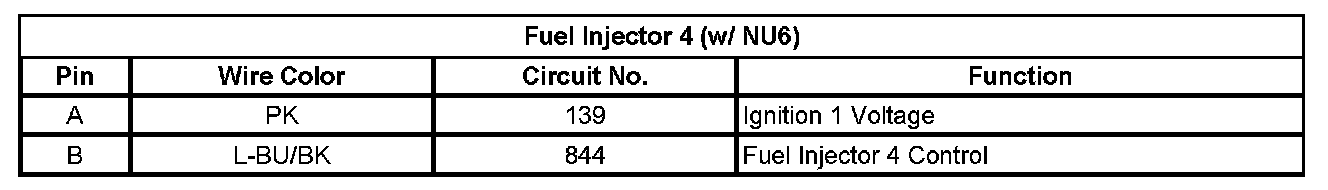

Fuel Injector 4 (w/ NU6)

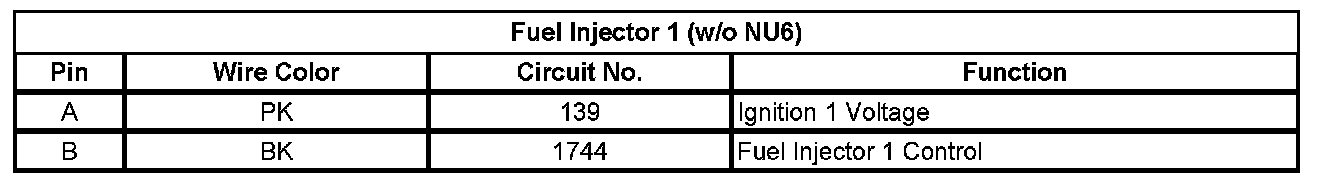

Fuel Injector 1 (w/o NU6)

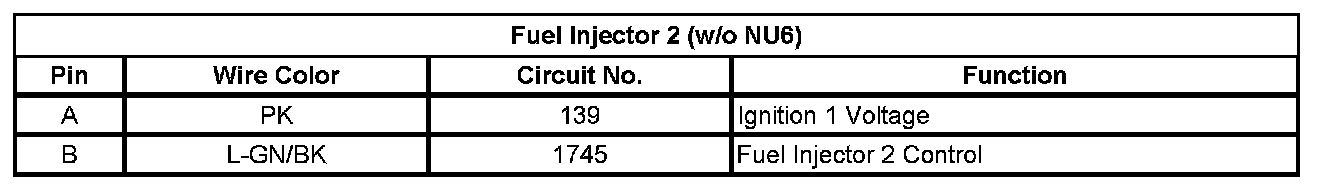

Fuel Injector 2 (w/o NU6)

Fuel Injector 3 (w/o NU6)

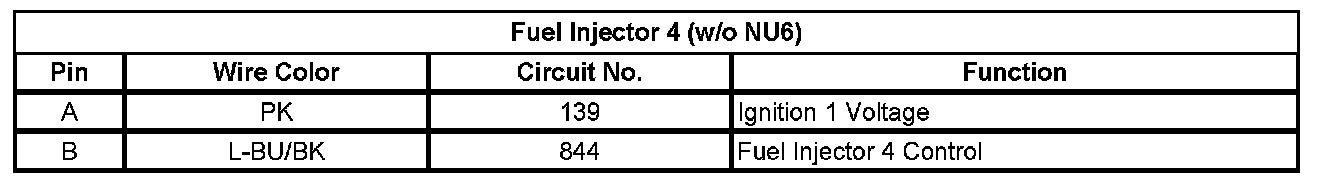

Fuel Injector 4 (w/o NU6)
