Radio Opening Cover Replacement

Radio Opening Cover Replacement

Removal Procedure

1. Remove the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .

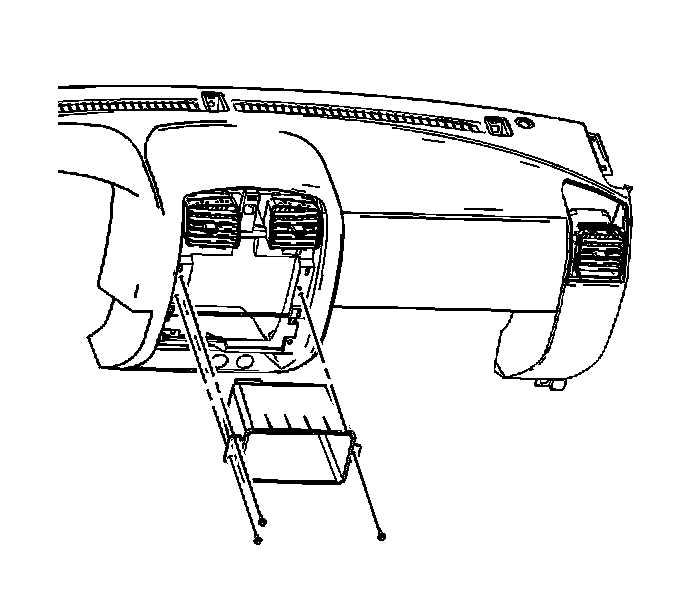

2. Remove the 3 screws retaining the box to the instrument panel (I/P).
3. Partially remove the box from the I/P.



Installation Procedure





1. Install the box to the I/P.

Notice: Refer to Fastener Notice .

2. Install the 3 screws that retain the box to the I/P.

Tighten the screws to 2 N.m (18 lb in).

3. Install the accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .
