Seat Belt Systems: Locations

Seat Belt Component Views

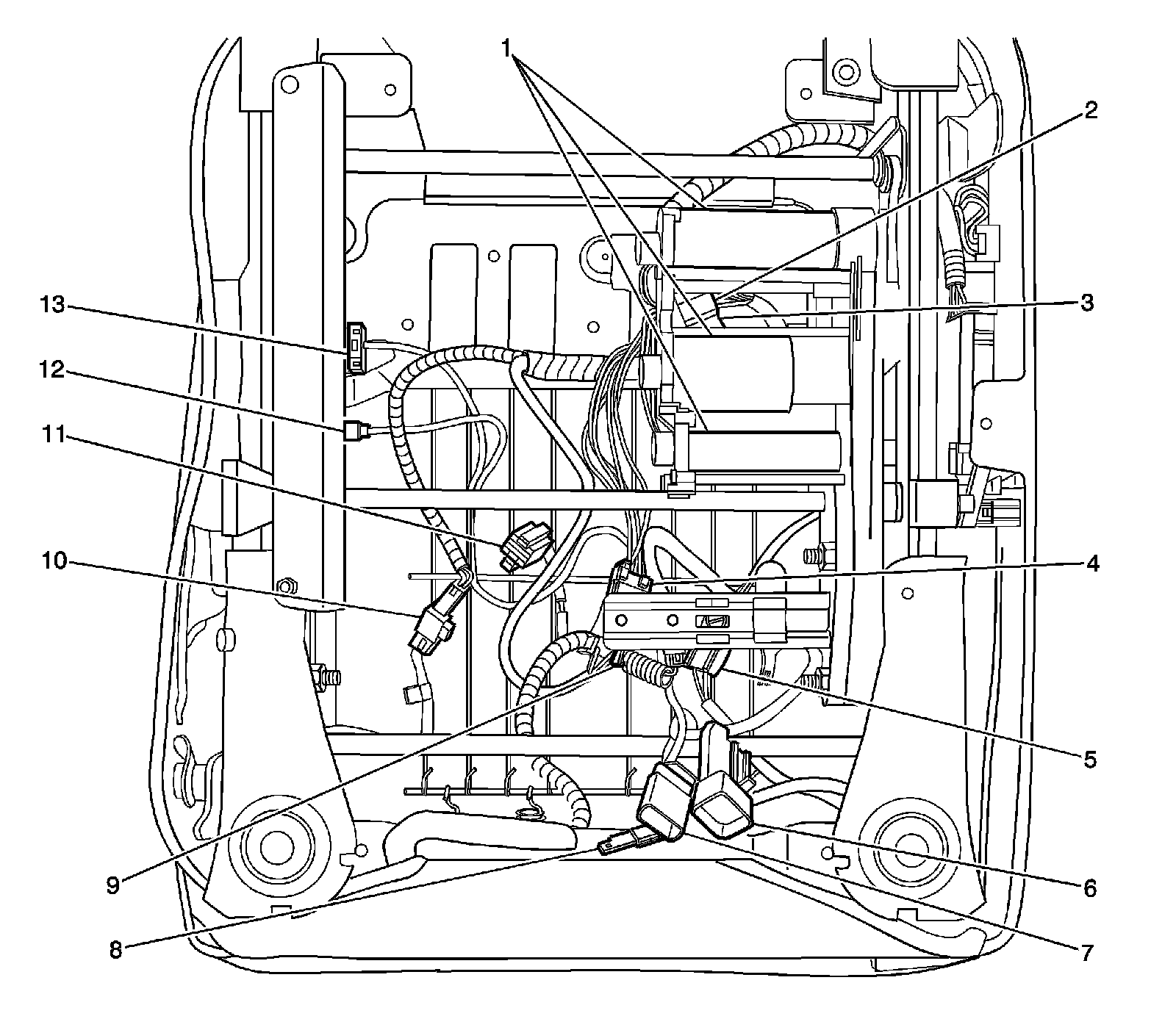

Driver Seat




1 - Seat Motors - Driver
2 - Seat Adjuster Switch - Driver C1
3 - Seat Adjuster Switch - Driver C2
4 - Seat Motors - Driver Connector
5 - Lumbar Pump Motor - Driver
6 - C307
7 - C314
8 - Heater Element Seat Back - Driver
9 - C319
10 - Recliner Motor
11 - Heated Seat Module - Driver
12 - Seat Belt Buckle - Driver
13 - Inflatable Restraint Seat Position Sensor (SPS) - Left

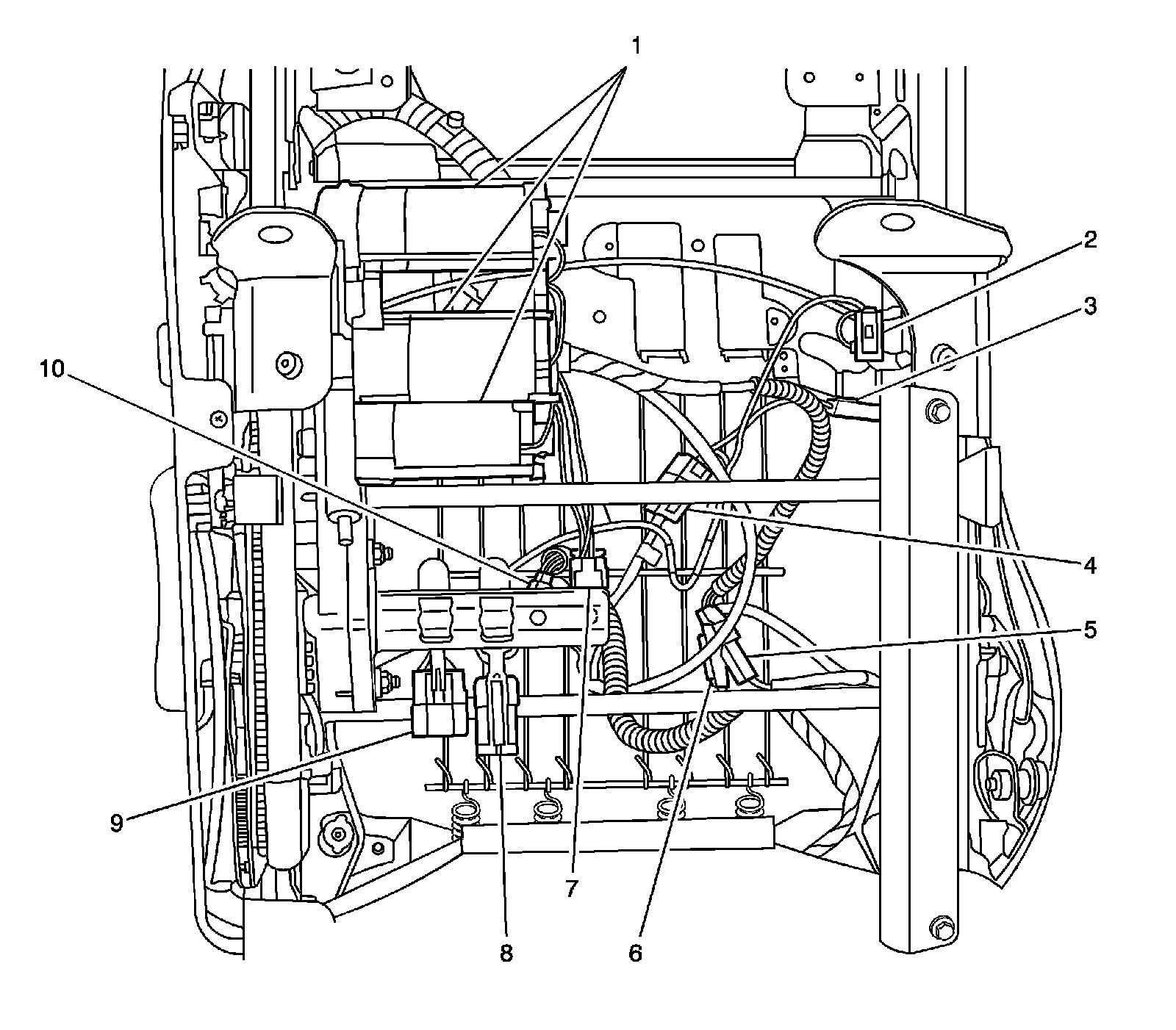

1 - Seat Motors - Passenger
2 - Inflatable Restraint Seat Position Sensor (SPS) - Right
3 - Seat Belt Buckle - Passenger
4 - Heated Seat Module - Passenger
5 - Lumbar Pump Motor - Passenger
6 - Heater Element Seat Back Passenger
7 - Seat Motors - Passenger Connector
8 - C313
9 - C315
10 - C318
