Engine General Specifications & Service Limits



Engine Mechanical Specifications (LM7 VIN T)

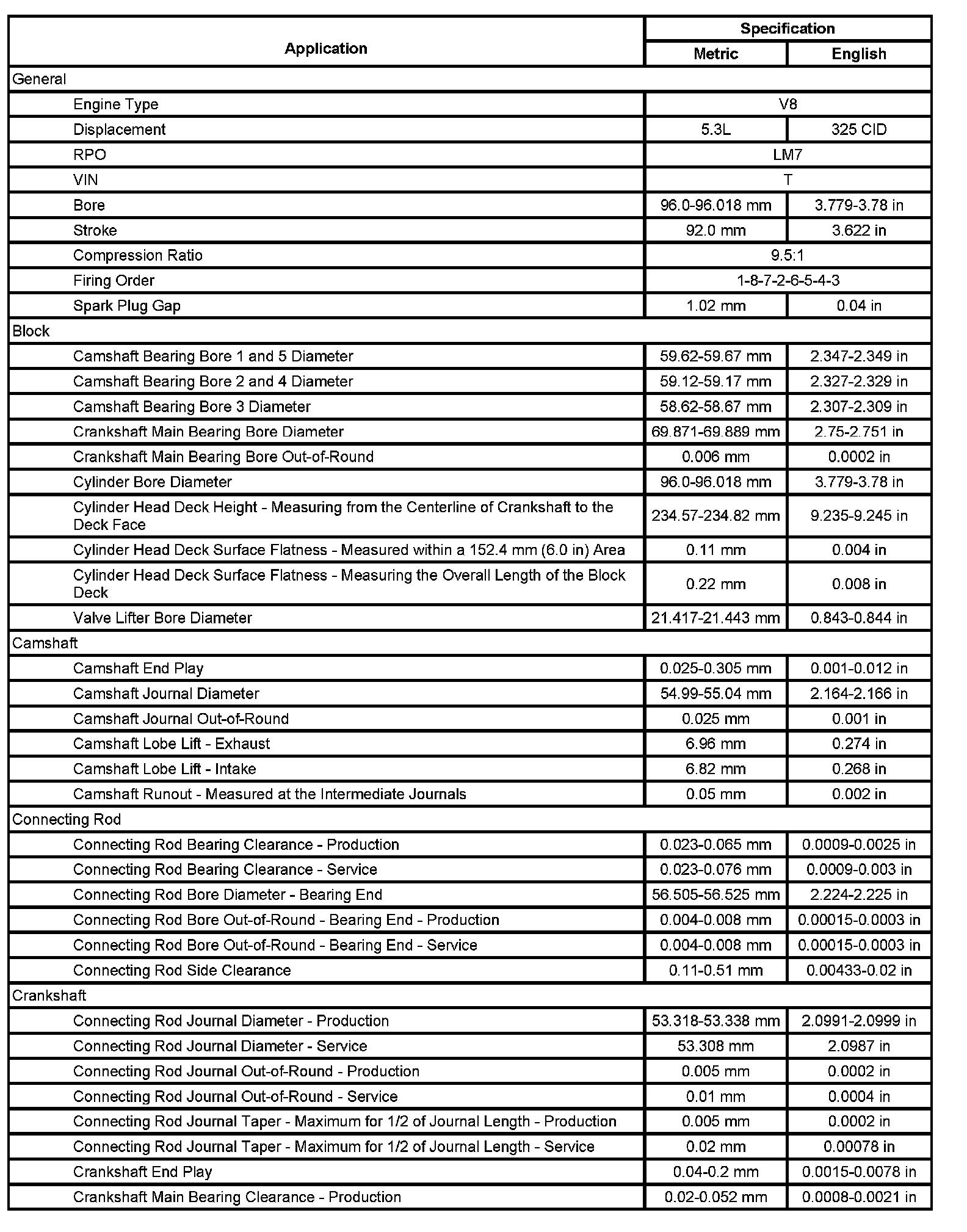

Engine Mechanical Specifications (LM7 VIN T):

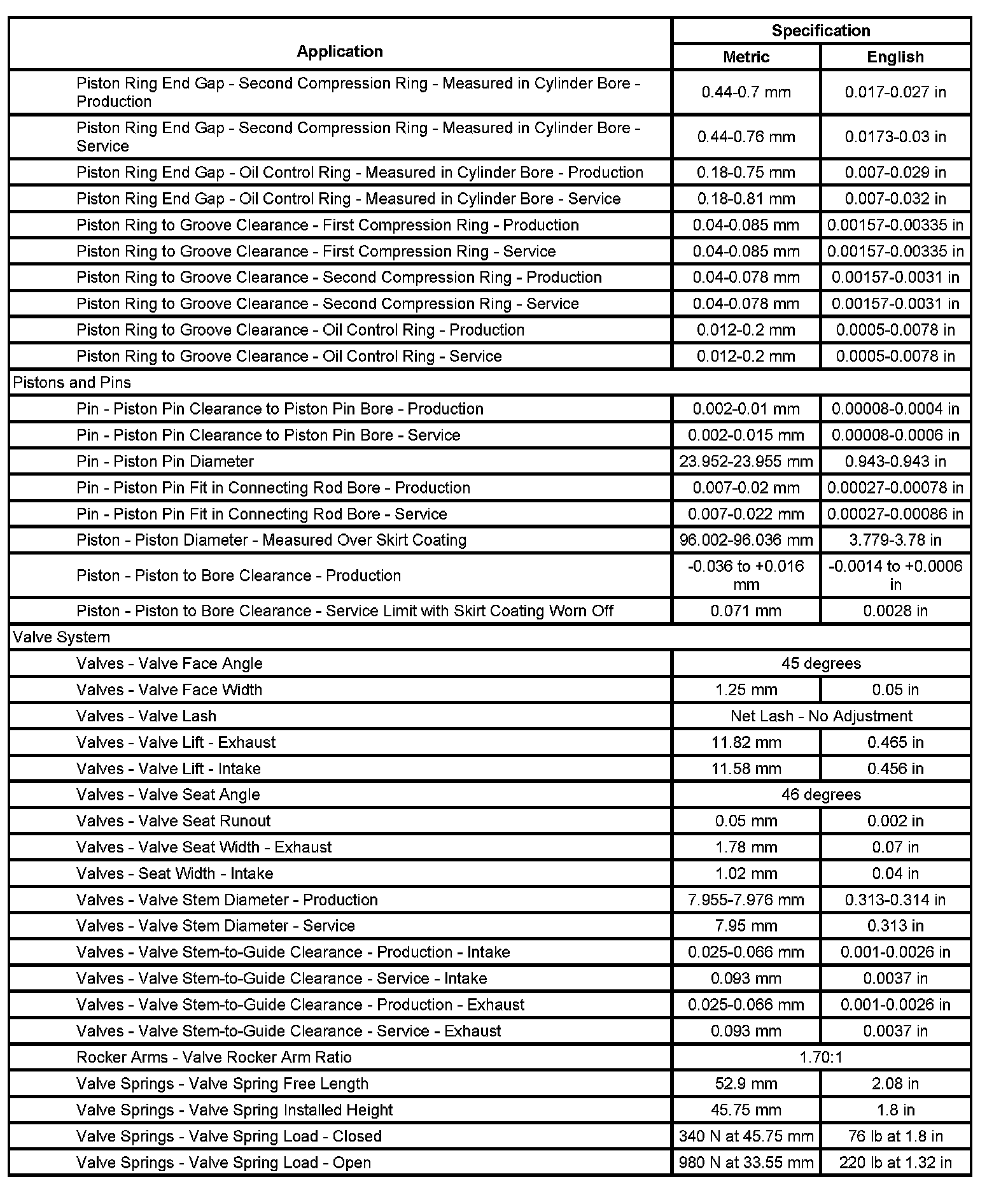

Engine Mechanical Specifications (LM7 VIN T):

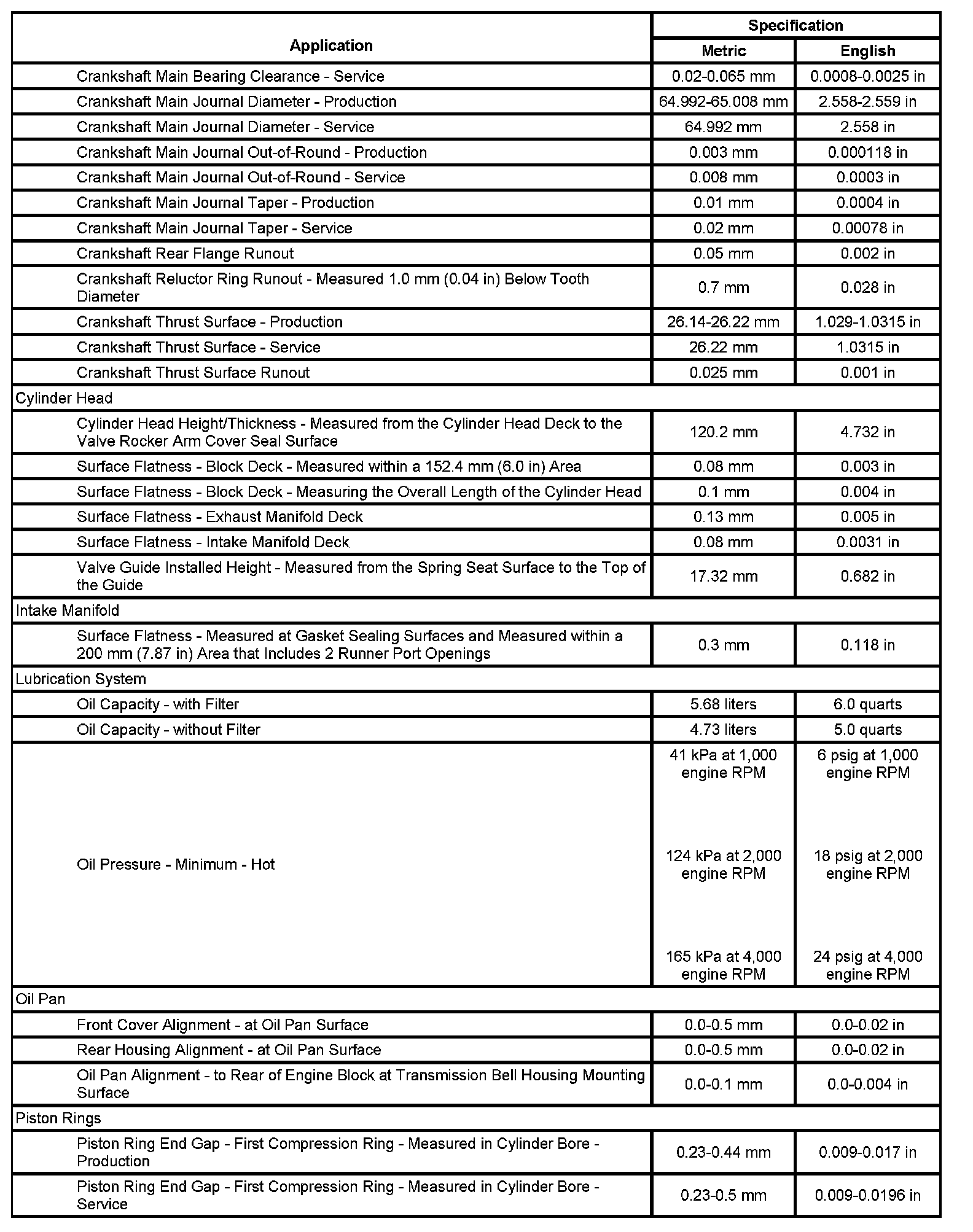

Engine Mechanical Specifications (LM7 VIN T):
