Manual Mirror Replacement



MANUAL MIRROR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the front door garnish molding.

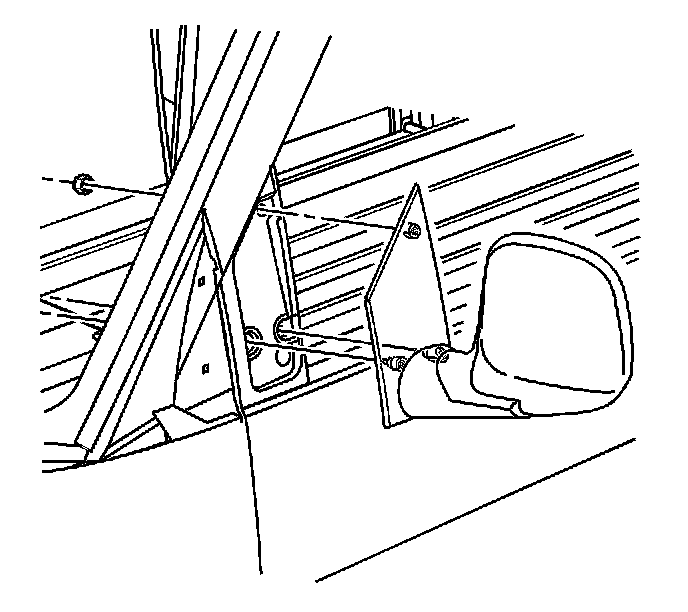

2. Remove the nuts that retain the rearview mirror to the door.
3. Remove the rearview mirror from the door.

INSTALLATION PROCEDURE




1. Install the rearview mirror to the door.

2. NOTE: Refer to Fastener Notice.

Install the nuts in order to retain the rearview mirror to the door.

Tighten the retaining nuts to 10 N.m (89 lb in).

3. Install the front door front garnish molding.
