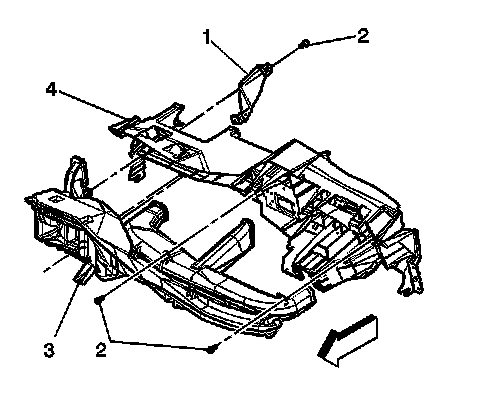

Air Distributor Duct Replacement



Air Distributor Duct Replacement

Removal Procedure

1. Remove the engine cover.
2. Remove the I/P carrier.





3. Remove the air distribution duct retaining screws (2).
4. Remove the retaining screws at the instrument panel.
5. Remove the air distribution duct from the instrument panel.

Installation Procedure





1. Install the air distribution duct to the instrument panel.

Notice: Refer to Fastener Notice.

2. Install the air distribution duct retaining screws (2) to the instrument panel.

Tighten the screws to 4 N.m (35 lb in).

3. Install the I/P carrier.
4. Install the engine cover.
