Instrument Panel Air Deflector Replacement



Instrument Panel Air Deflector Replacement

Removal Procedure

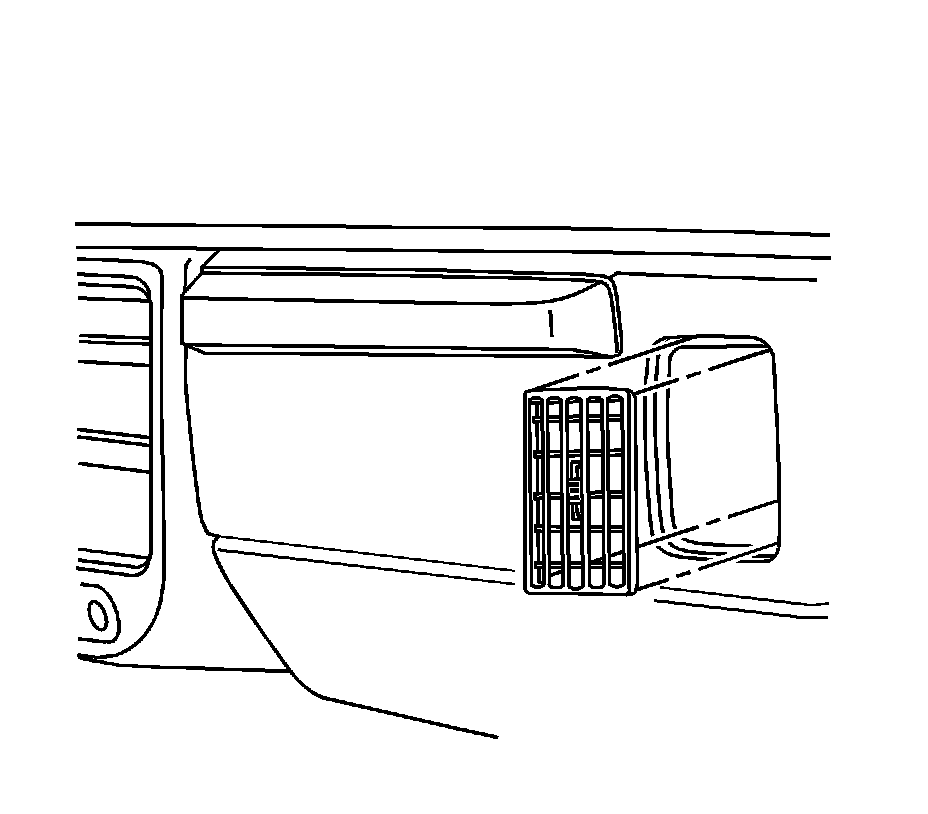

1. Use a flat blade tool to remove the instrument panel (I/P) deflector from the I/P.
2. Remove the I/P air deflector from the vehicle.

Installation Procedure





1. Align the I/P air deflector with the opening.
2. Push the I/P air deflector towards the IP opening until the deflector snaps into place.
3. Inspect the I/P air deflector for proper operation.
