4L80-E/4L85-E Automatic Transmission

Automatic Transmission Controls Schematics (4.8L and 6.0L)

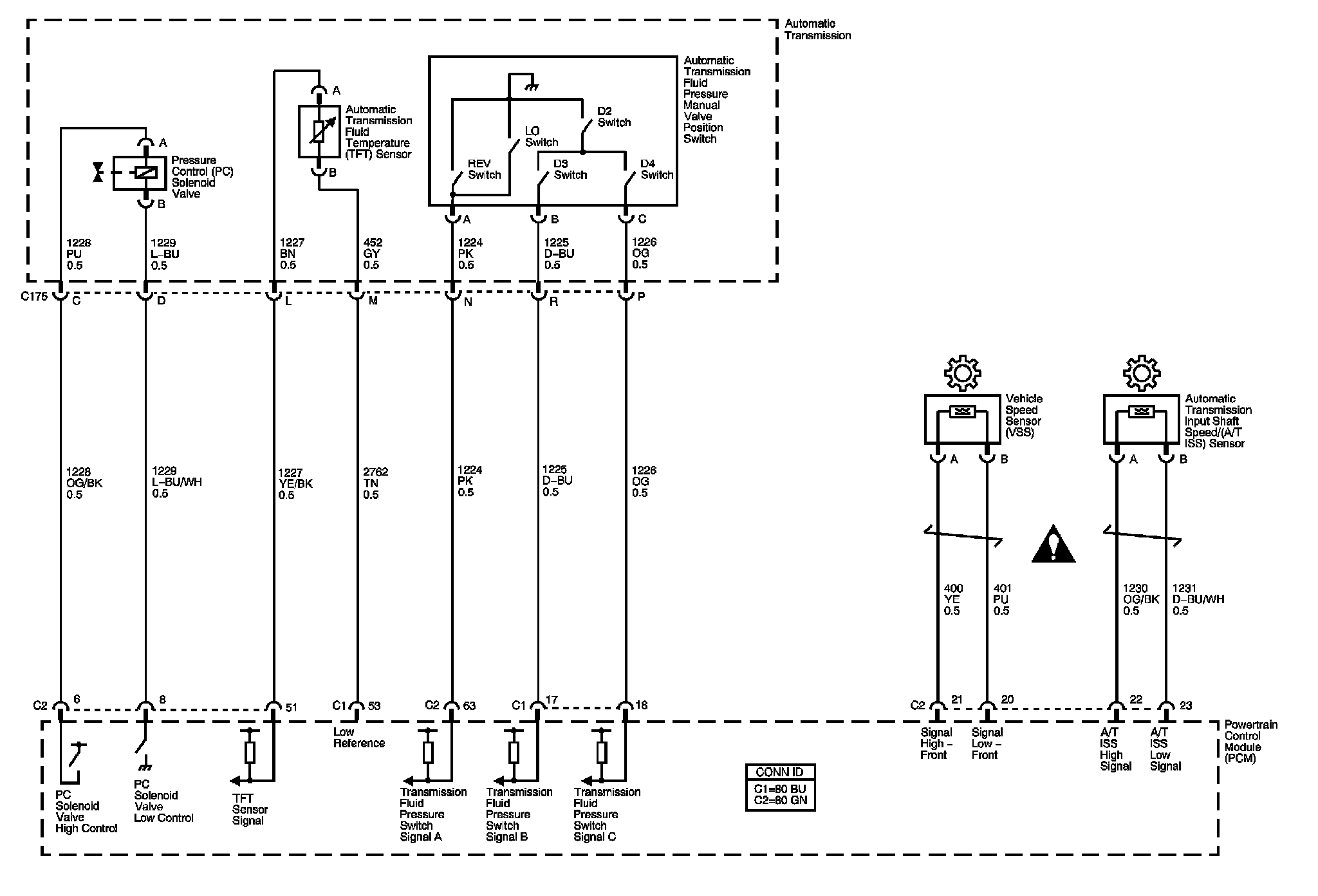

Automatic Transmission Controls Schematics 1:

Automatic Transmission Controls Schematics 2:

Automatic Transmission Controls Schematics 3:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
