Body Control Module: Diagrams

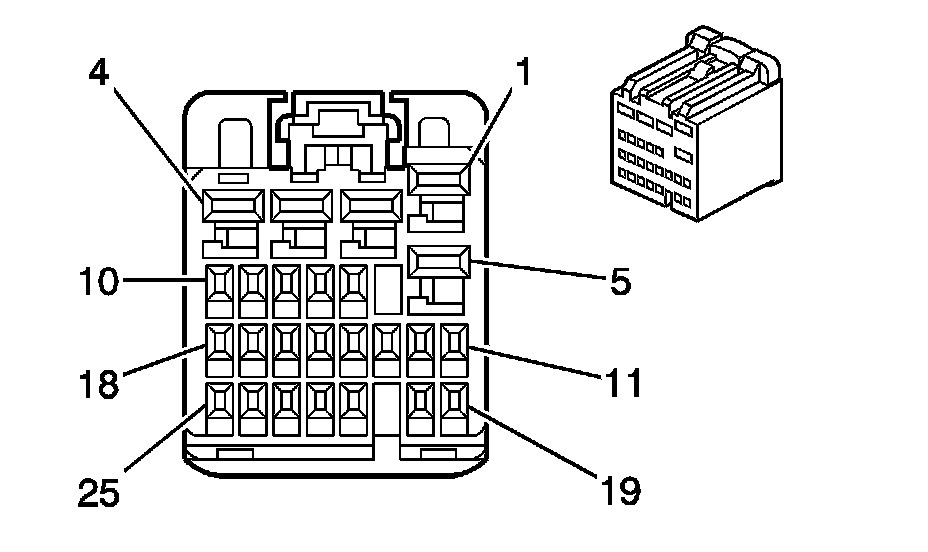

Body Control Module (BCM) C1

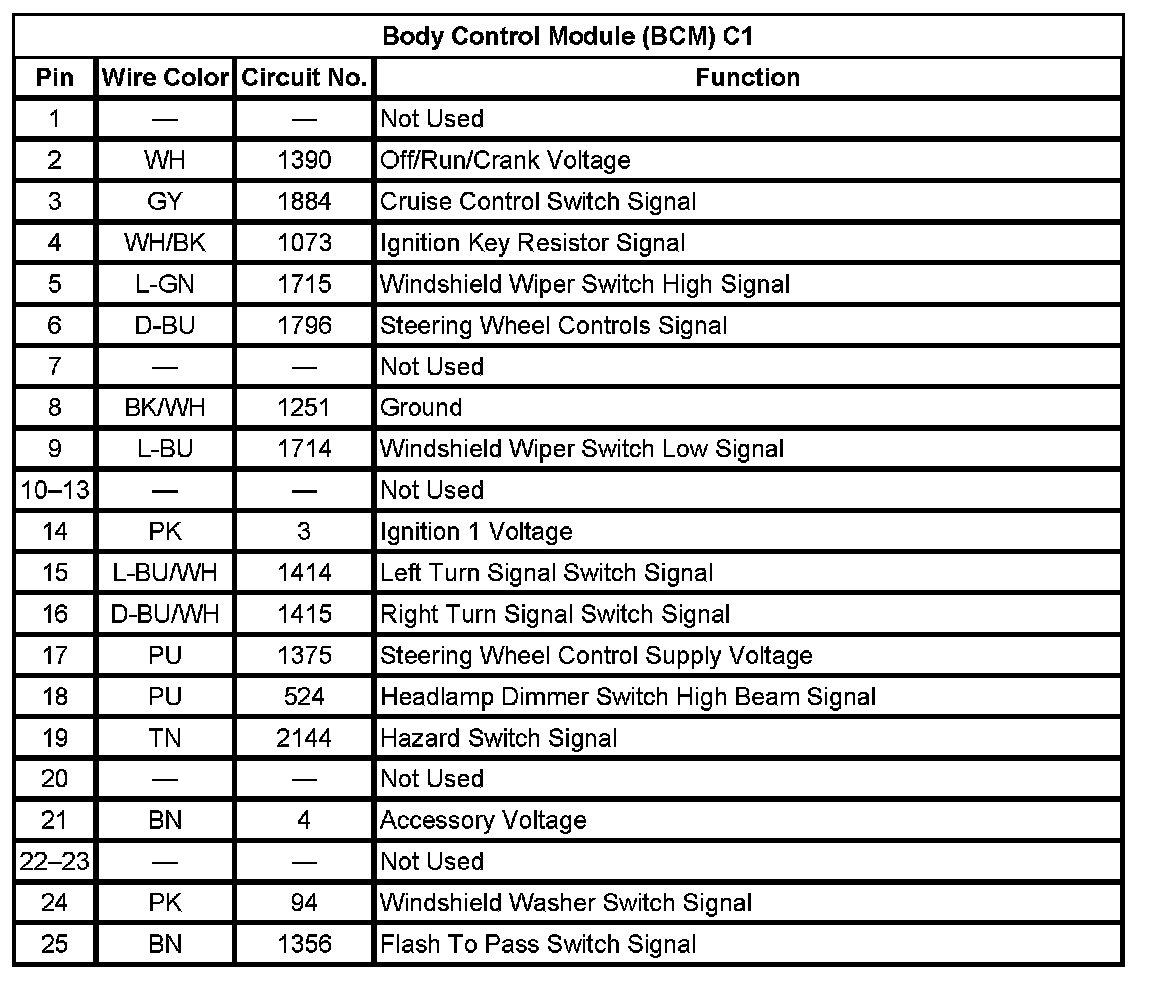

Pin 1 To Pin 25:
Pin 26 To Pin 27:
Body Control Module (BCM) C2
Pin 1 To Pin 20:
Pin 21 To Pin 25:
Body Control Module (BCM) C3
Pin 1 To Pin 16:
Pin 17 To Pin 25:
Body Control Module (BCM) C4
Pin 1 To Pin 15:
Pin 16 To Pin 25:
Body Control Module (BCM) C5
Pin 1 To Pin 18:
Pin 19 To Pin 25:
Body Control Module (BCM) C6
Pin 1 To Pin 18:
Pin 19 To Pin 25:
Body Control Module (BCM) C7
