Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2007
>>
Malibu V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
Windshield Washer Switch
Wiper/Washer Connector End Views

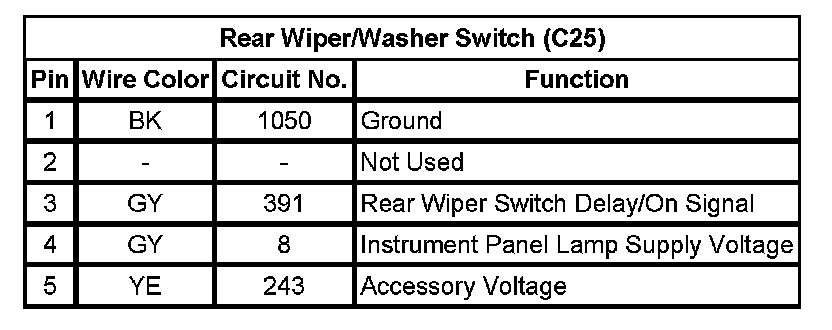

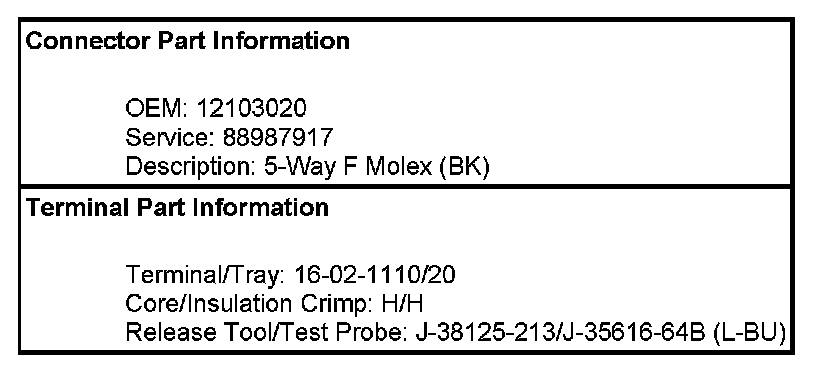

Rear Wiper/Washer Switch (C25)

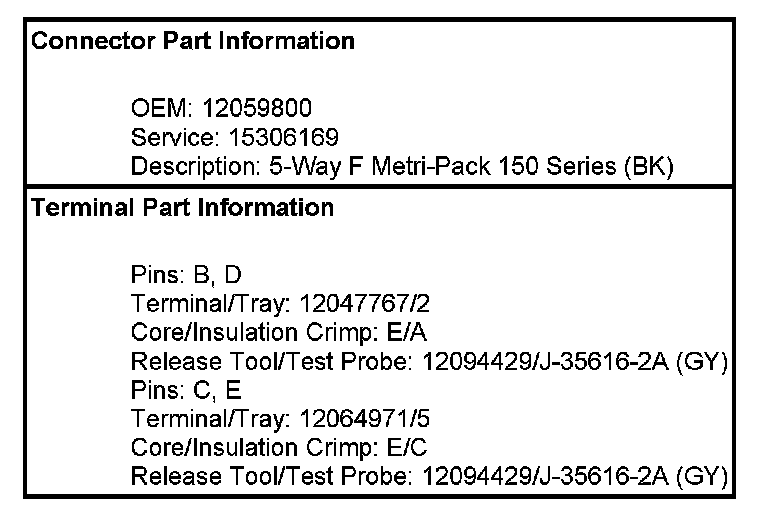

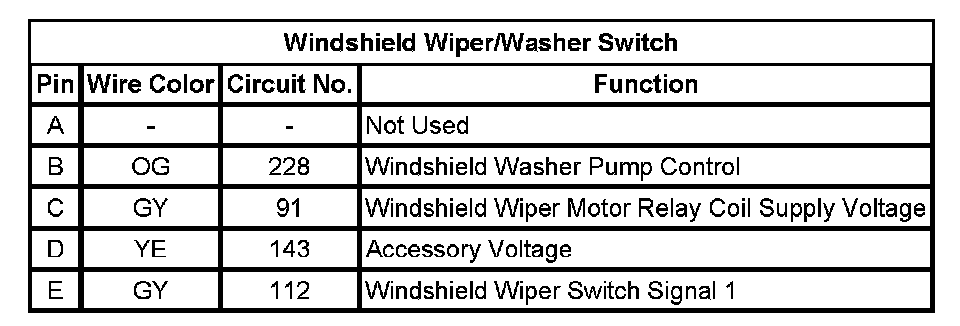

Windshield Wiper/Washer Switch
