Vehicle Speed Sensor Replacement

Vehicle Speed Sensor Replacement

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the right front tire and wheel.

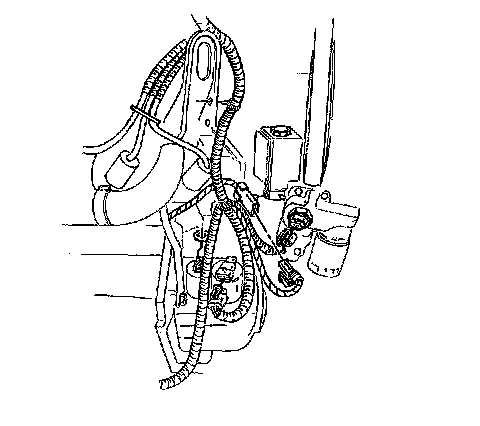

3. Disconnect the vehicle speed sensor (VSS) electrical connector.




4. Remove the VSS bolt (9).
5. Remove the VSS (10) from the extension case.




6. Remove the O-ring (11) from the VSS (10).

Installation Procedure




1. Install the O-ring (11) to the VSS (10).




2. Install the VSS (10).

Notice: Refer to Fastener Notice.

3. Install the VSS bolt (9).

Tighten the bolt (9) to 12 N.m (106 lb in).




4. Connect the VSS electrical connector.
5. Install the right front tire and wheel.
6. Lower the vehicle.
