38. Balancer Shaft Bearing Removal

Balancer Shaft Bearing Removal

Tools Required
* J 26941 Bushing/Bearing Remover
* J 38834 Balance Shaft Service Kit





Caution: Refer to Safety Glasses Caution.

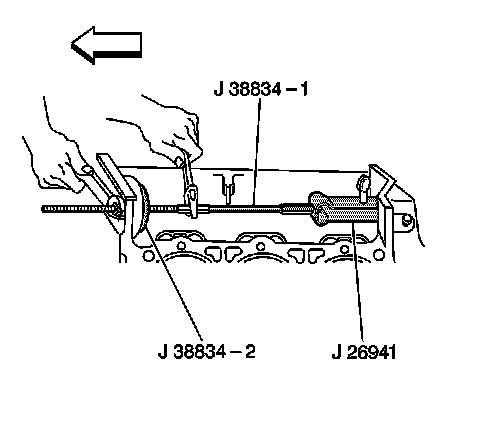

1. Use the J 38834 and the J 26941 in order to remove the balance shaft rear bearing.

1. Install J 26941 legs behind the balance shaft rear bearing and secure.
2. Install the J 38834-1 with the short threaded end through the balance shaft bore in the front of the engine block.
3. Install the J 38834-1 into J 26941.
4. Slide the J 38834-2 onto the J 38834-1 and into the balance shaft bore of the engine block.
5. Install the J 38834 bearing, washer, and nut onto the J 38834-1.
6. Using a wrench secure the J 38834-1 and then rotate the J 38834 nut clockwise until the balance shaft rear bearing is removed from the engine block.
7. Remove the J 26941 from the balance shaft rear bearing.

2. Discard the balance shaft rear bearing.
