P0736
DTC P0736
Circuit Description
The transmission control module (TCM) uses input from the input speed sensor (ISS) and output speed sensor (OSS) to determine gear ratios. The TCM then compares the known gear ratio to the calculated gear ratio for the current gear.
DTC P0736 is a type A DTC.
DTC Descriptor
This diagnostic procedure supports the following DTC:
DTC P0736 Incorrect Reverse Ratio
Conditions for Running the DTC
* DTCs P0716, P0717, P0721, P0722, P0875, and P0876 are not active.
* The components are powered and ignition voltage is greater than 9.0 volts and less than 18 volts.
* Output speed exceeds 200 RPM.
* REVERSE is selected and attained.
Conditions for Setting the DTC
DTC P0736 sets when the calculated REVERSE range ratio, steady state, detected by the TCM differs from the known REVERSE range ratio.
Action Taken When the DTC Sets
* The TCM illuminates the malfunction indicator lamp (MIL).
* The transmission will lock in NEUTRAL.
* DTC P0736 is stored in TCM history.
* The TCM freezes shift adapts.
* The TCM inhibits torque converter clutch (TCC) engagement.
Conditions for Clearing the DTC
A scan tool can clear the code from TCM history. The TCM automatically clears the DTC from TCM history if the vehicle completes 40 warm-up cycles without failure.
Diagnostic Aids
* Incorrect ratio codes typically indicate mechanical conditions with specific clutches, such as 3-5-Reverse clutch and low and reverse clutch for REVERSE range.
* Incorrect ratio code could indicate a hydraulically failed solenoid. Observe DTC information for specific solenoid.
* Clutch test mode can be used to measure stall speed. Observe turbine speed signal. If the turbine speed signal does not return to zero or rises during the stall test, a leak or obstruction in a specific clutch apply circuit could be present.
* You may have to drive the vehicle in order to experience a condition.
Test Description

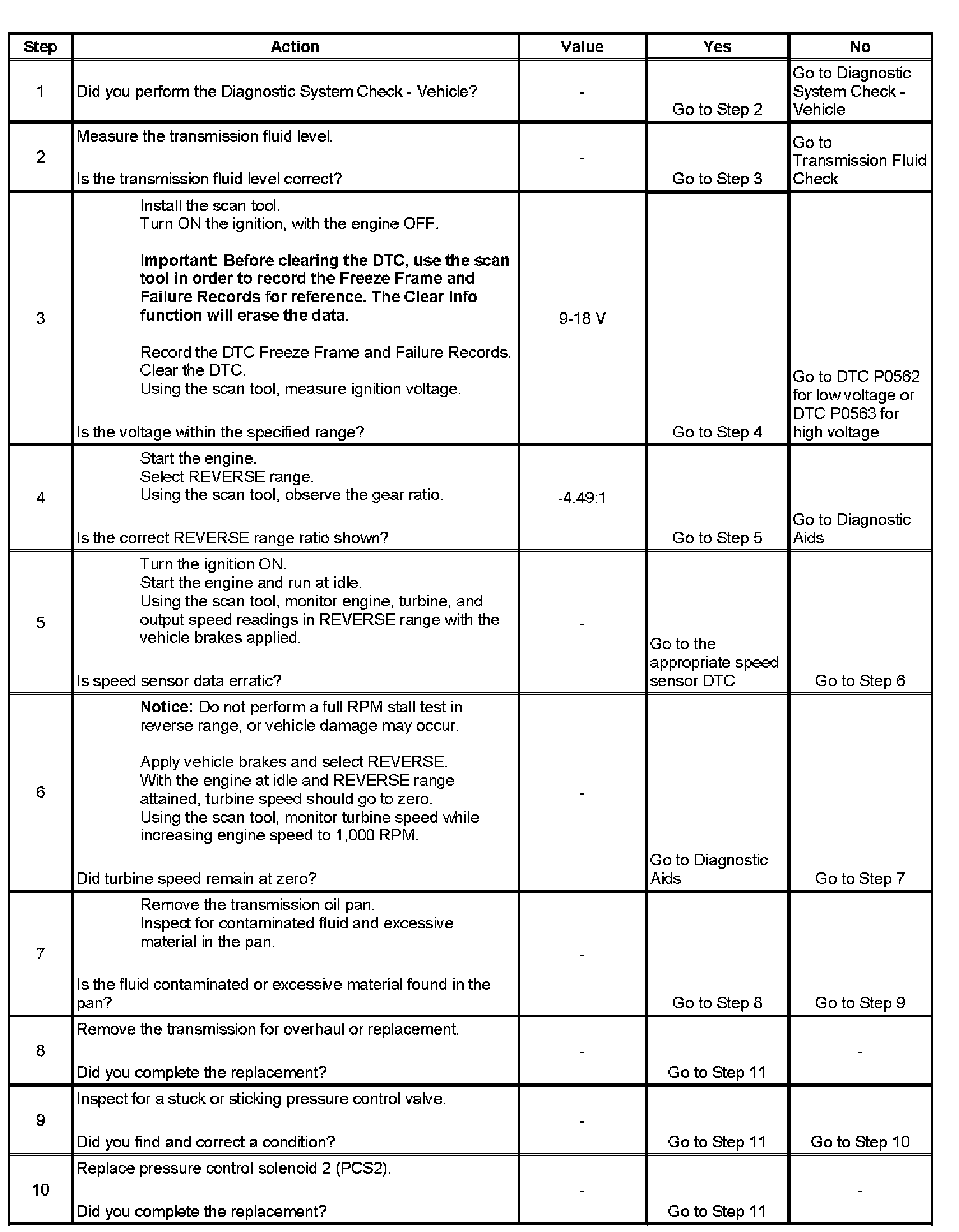

The numbers below refer to the step numbers on the diagnostic table.
3. This step tests ignition voltage.
5. This step tests speed sensor readings.
6. This step tests for turbine speed not remaining at zero in REVERSE range.
