Immobilizer Connector End Views
Immobilizer Connector End Views
Immobilizer Connector End Views

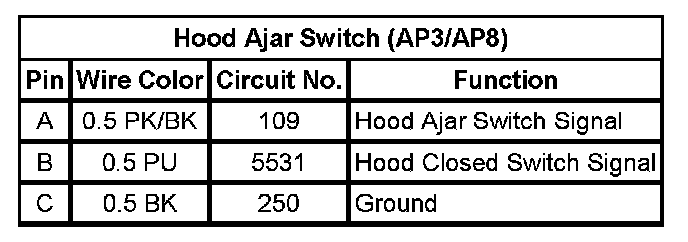

Hood Ajar Switch (AP3/AP8)

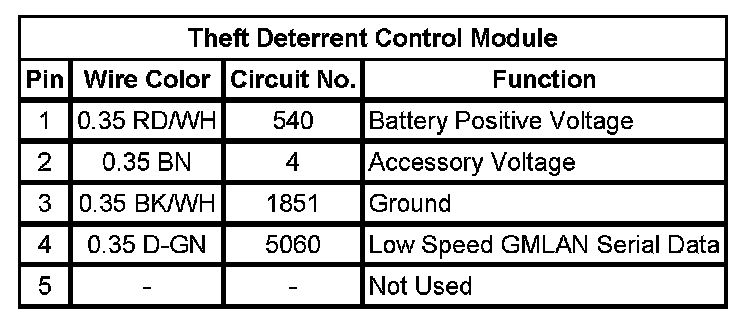

Theft Deterrent Control Module
