Differential Carrier Assembly Final Assembly (8.25 Lock Tab Style)

Differential Carrier Assembly Final Assembly (8.25 Lock Tab Style)

Tools Required
* J 8092 Universal Driver Handle - 3/4 in - 10
* J 33842 Pilot Bearing Installer
* J 36609 Axle Tube Bearing Installer
* J 36616 Axle Mount Bushing Remover/Installer
* J 45225 Axle Seal Installer

1. Inspect the alignment mark between the differential bearing adjuster and the differential carrier assembly case. If the line between the differential bearing adjuster and the differential carrier assembly case is not aligned, re-align the 2 components as necessary.
2. Bend the differential adjuster nut lock tabs over the differential adjuster nut sleeves.
3. Lubricate the clutch shaft pilot bearing with axle lubricant. Use the correct fluid. Refer to Sealers, Adhesives, and Lubricants.




4. Install the clutch shaft pilot bearing using the J 33842.




5. Install the clutch shaft to the differential carrier case half.





Notice: Refer to Fastener Notice.

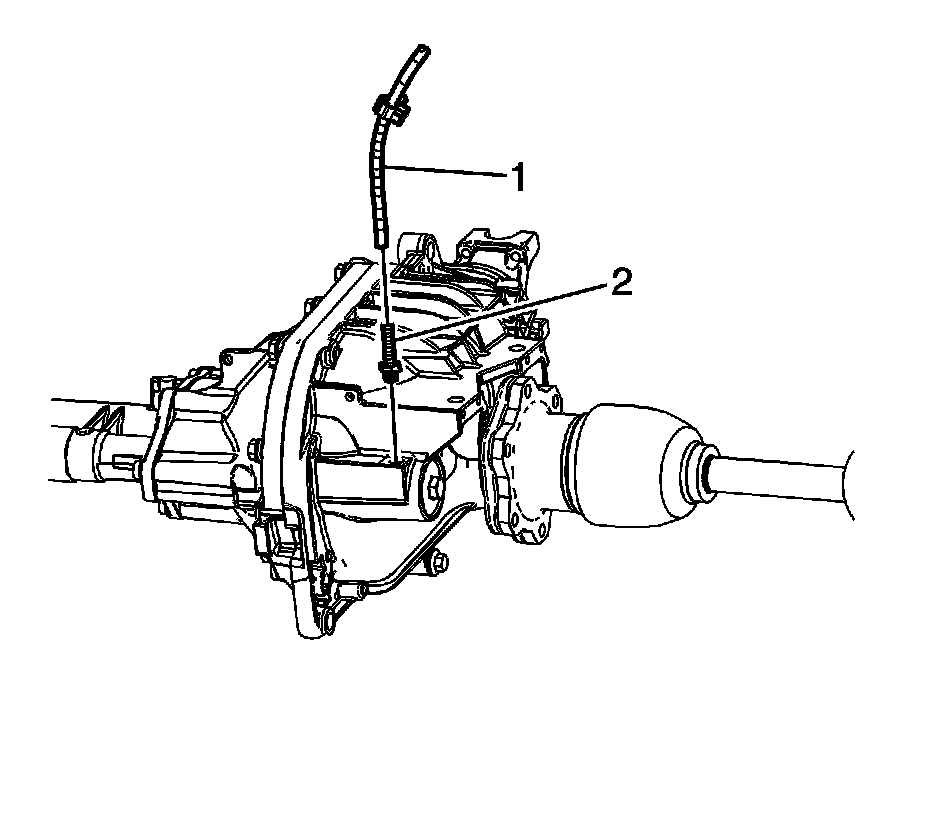

6. Install the vent hose connector (2).

Tighten the vent hose connector to 20 Nm (15 lb ft).

7. Install the vent hose (1).




8. Install the new left side axle shaft seal using the J 45225 (1) and the J 8092 (2).
9. Install the new left side inner axle shaft retainer ring.




10. Install the left side inner axle shaft by doing the following:

1. Install the left side inner shaft into the differential carrier assembly until the inner shaft is seated against the differential side gear.
2. While holding the inner shaft against the differential side gear, turn the inner shaft in order to align the splines of the inner shaft with the splines on the differential side gear.
3. Drive the inner shaft into the differential case side gear using a soft-faced mallet until the retaining ring on the inner shaft is fully seated within the groove in the differential case side gear.
Pull back on the inner shaft to ensure that the inner shaft is properly retained in the differential case side gear.




11. Install the right side inner shaft bearing into the inner shaft housing by performing the following steps:

1. Install the inner axle shaft housing into a vise.
Clamp only on the mounting flange of the inner axle shaft housing.
2. Install the bearing with the square shoulder in using the J 36609 (1) and the J 8092 (2).




12. Install the new right side inner axle shaft seal using the J 45225 (1) and the J 8092 (2).




13. If servicing the 8.25 (S4WD), install the following components into the inner shaft housing:

1. Install the inner axle shaft (1).
Carefully tap the inner axle shaft into place with a soft-faced mallet.

Important: Use chassis grease in order to hold the thrust washer in place.

2. Install the thrust washer (with tabs) (5).
Ensure the tabs on the thrust washer are aligned with the slots in the inner shaft housing.
3. Install the thrust washer (without tabs) (6).
4. Install the new retainer ring (7) onto the inner axle shaft (1).
5. Determine the clutch gear shim thickness. Refer to Inner Axle Shaft Shim Adjustment.
6. Install the clutch gear shim (9).
7. Install the clutch sleeve (8).
8. Install the clutch fork assembly (11).
9. Install the clutch fork inner spring (10).




14. Install the inner shaft housing to the differential carrier assembly case. 8.25 S4WD Axle shown, 8.25 F4WD similar.
15. If servicing the 8.28 inch axle, install the inner shaft housing bolts.

Tighten the inner shaft housing bolts to 73 Nm (54 lb ft).




16. Install the inner shaft (2) into the inner shaft housing (1) by doing the following:

1. Install the inner shaft into the inner axle shaft housing until the inner shaft is seated against the differential side gear.
2. While holding the inner shaft against the differential side gear, turn the inner shaft in order to align the splines of the inner shaft with the splines on the differential side gear.
3. Drive the inner shaft into the differential case side gear using a soft-faced mallet until the retaining ring on the inner shaft is fully seated within the groove in the differential case side gear.
Pull back on the inner shaft to ensure that the inner shaft is properly retained in the differential case side gear.

17. Install the drain plug and the washer.

Notice: Refer to Component Fastener Tightening Notice.

18. Install the fill plug and the washer.

Tighten the drain plug and the fill plug to 33 Nm (24 lb ft).




19. Install the front drive axle actuator.
Apply sealant to the threads of the front axle actuator. Use the correct sealant. Refer to Sealers, Adhesives, and Lubricants.

Tighten the front drive axle actuator to 20 Nm (15 lb ft).
