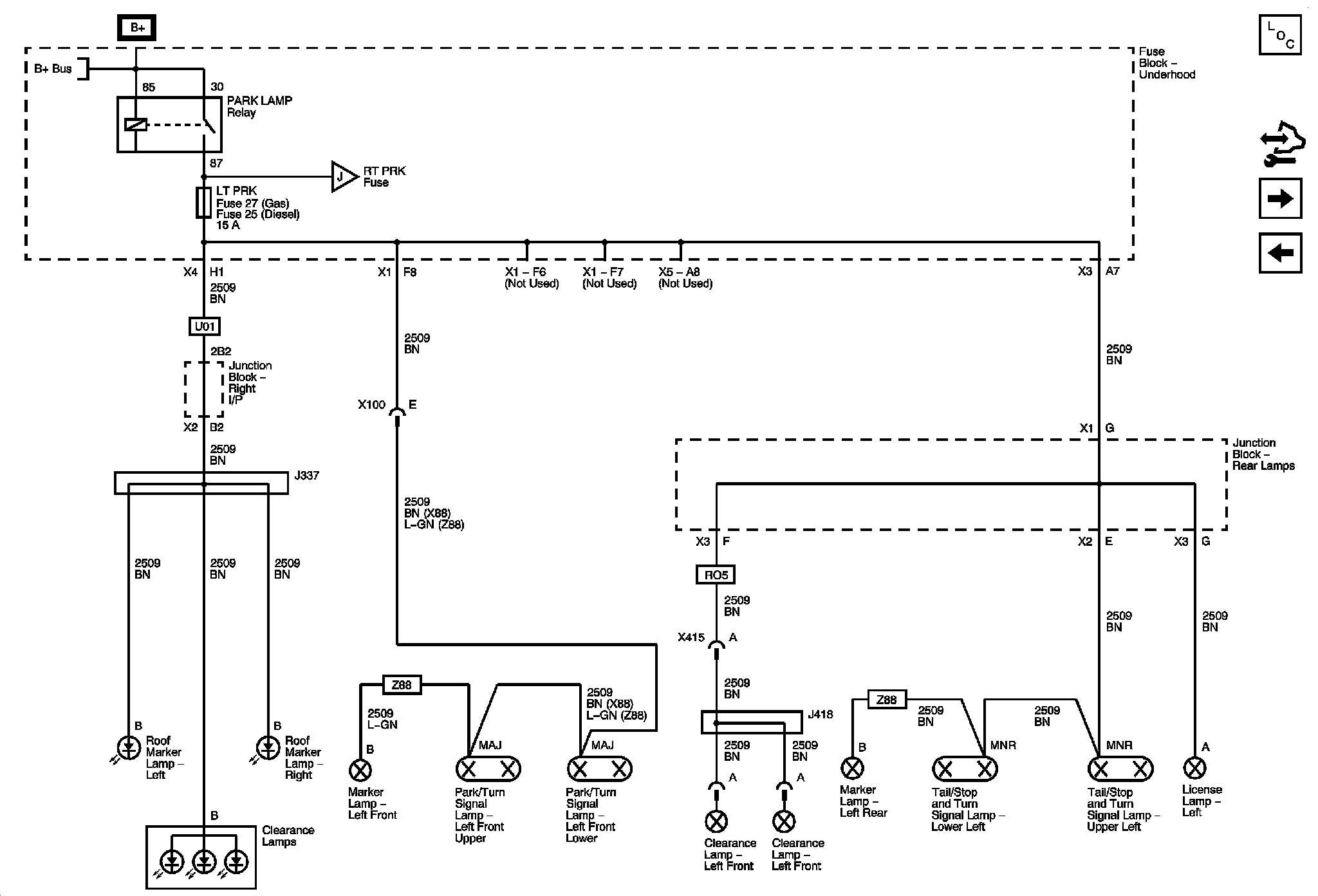

Power Distribution Diagram 23



Power Distribution Schematics

LT PRK Fuse






Next Diagram: Power Distribution Diagram 24

Previous Diagram: Power Distribution Diagram 22

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
