Variable Valve Timing Solenoid: Diagrams

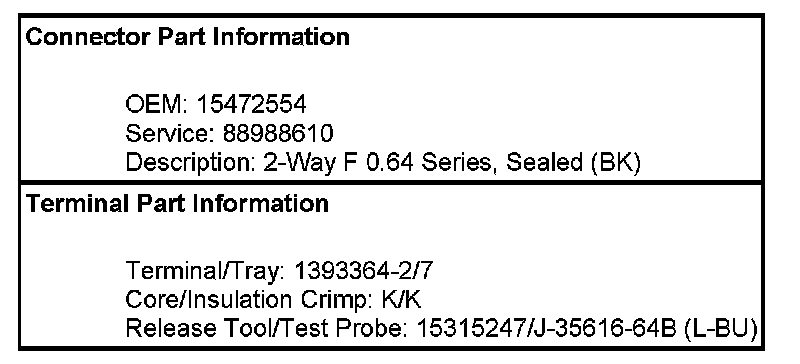

Engine Controls Connector End Views

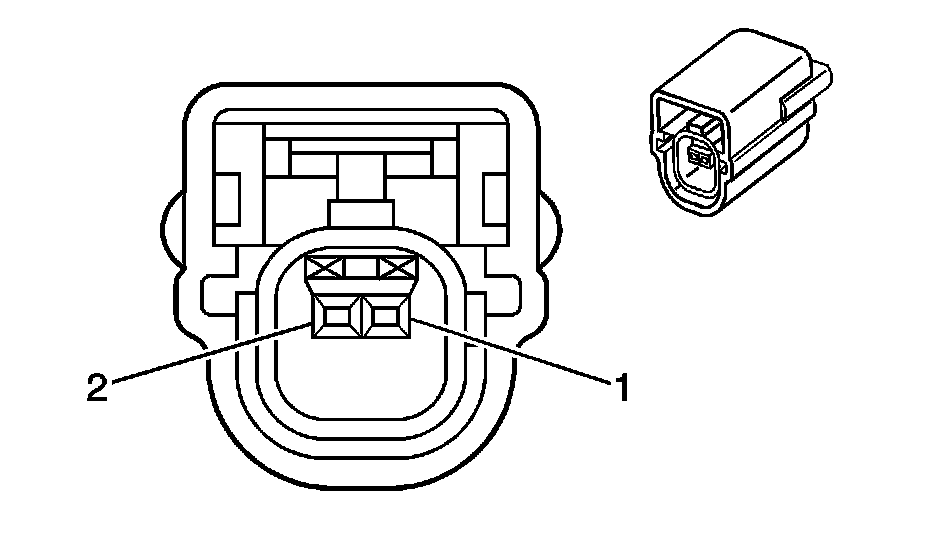

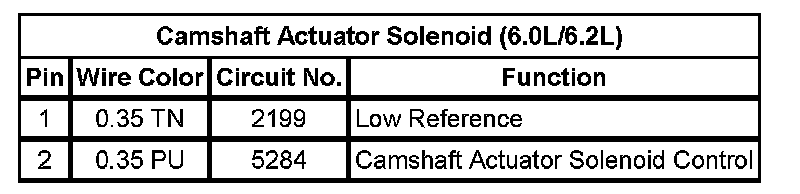

Camshaft Actuator Solenoid (6.0L/6.2L)
