Hybrid Controls Connector End Views
Hybrid Control Module (HCM) (HP2)

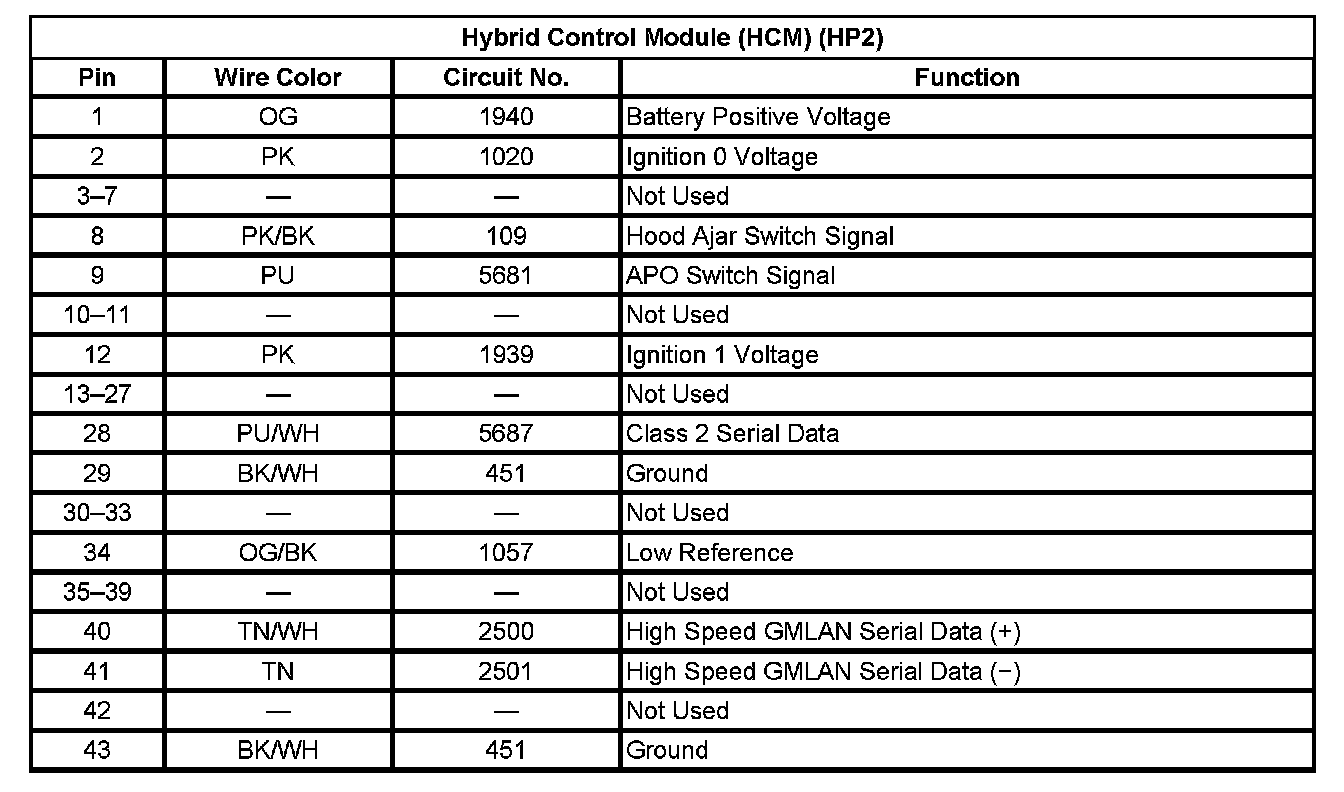

Hybrid Control Module (HCM) (With RPO Code HP2) (Pin 1 To 43):

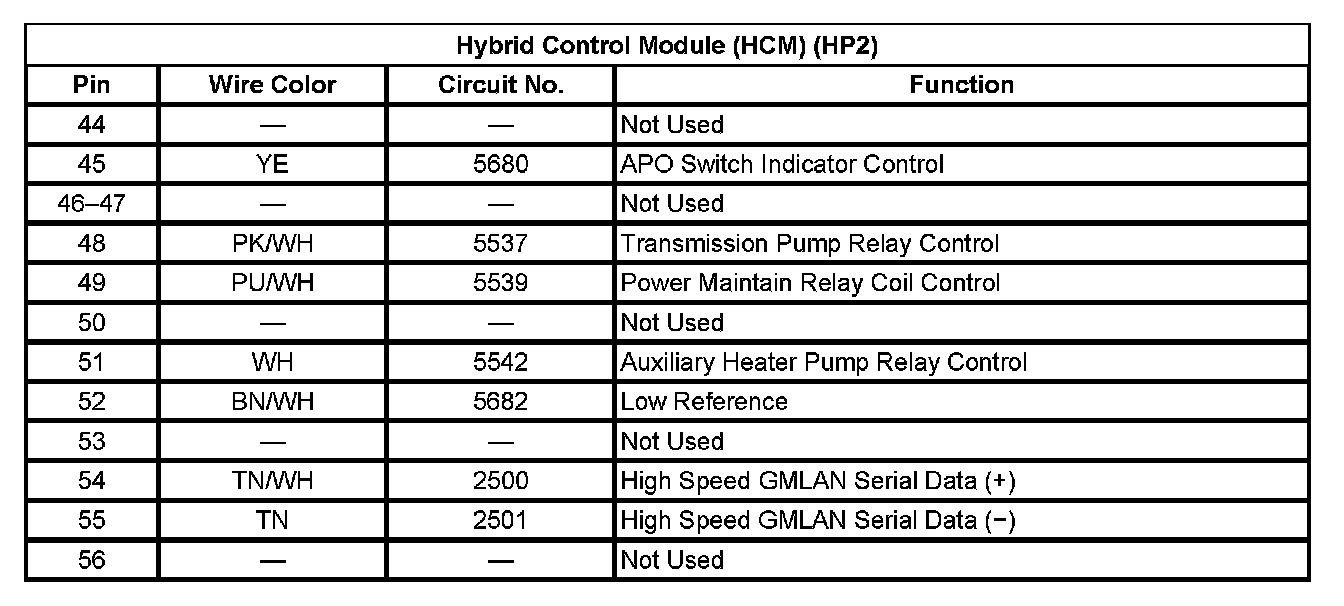

Hybrid Control Module (HCM) (With RPO Code HP2) (Pin 44 To 56):
Hybrid Controls Connector End Views
Hybrid Control Module (HCM) (HP2)
