15. Cylinder Head Removal - Left Side

Cylinder Head Removal - Left Side





1. Remove and discard the cylinder head bolts (227, 228, 229).





2. Notice: After removal, place the cylinder head on 2 wood blocks in order to prevent damage to the sealing surfaces.

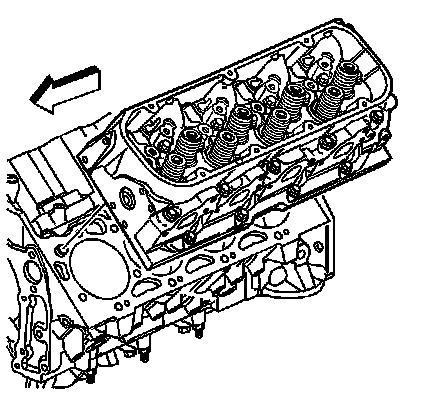

Remove the cylinder head.





3. Remove the cylinder head gasket.
4. Discard the cylinder head gasket.
